LCJ CAPTEURS CV3Fm6 Quick Start Manual

ULTRASONIC WIND VANE-ANEMOMETER
CV3F is a new generation wind measurement sensor providing, on a standardised series
electric line, the values from the wind module in knots or metres per second, relative wind
direction and its temperature in degrees C.
The sensor can be used directly with a PC type computer or read by modern repeaters
with a standard NMEA0183 input.

Operating principle :

W

Equipment supplied :

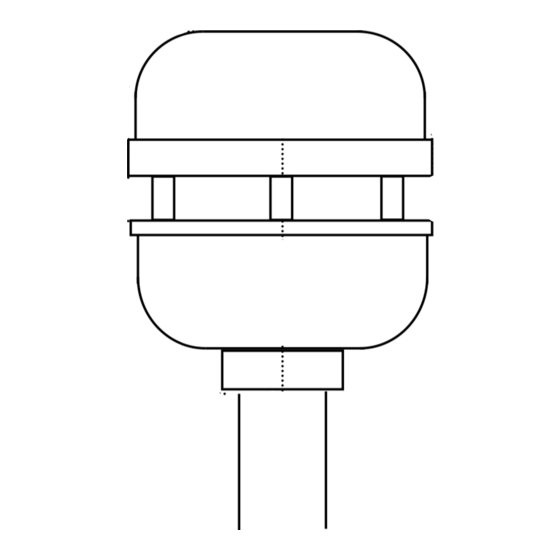

- CV3F sensor head and 300mm pole
- 2 stainless steel brackets
- 25m coaxial cable fitted with a connector
- Box for connecting power supply and display reader
- Installation instructions

Electrical characteristics :

- Digital output signals:
NMEA0183, MWV: 5 digits for the module, 4 digits for the direction, 1 digit
for validity state.
NMEA0183, XDR: 4 digits for the temperature.
BARO Option
NMEA0183, MDA: 4 digits for the pressure, 4 digits for the temperature.
NMEA0183, XDR: 4 digits for the temperature, 4 digits for the atmospheric
pressure.
- Wind module resolution: 0.1 knots
- Wind module dynamics: 0.5 to 99.5 knots
- Resolution: 1 degree
- Sensitivity to direction: + / 1.5 degrees
- Supply: 9,5 to 14 V DC
- Consumption: 25 milliamperes
- Operating temperature: -10°C (without ice) to +50°C
LCJ CAPTEURS – 29 Allée des Cinq Continents – Z.A. Le Chêne Ferré – 44120 VERTOU – France
Tel: +33 (0)2 40 05 08 55 - Email:
CV3Fm6
Sound, ultrasound, is carried by the movement of the fluid
through which it passes.

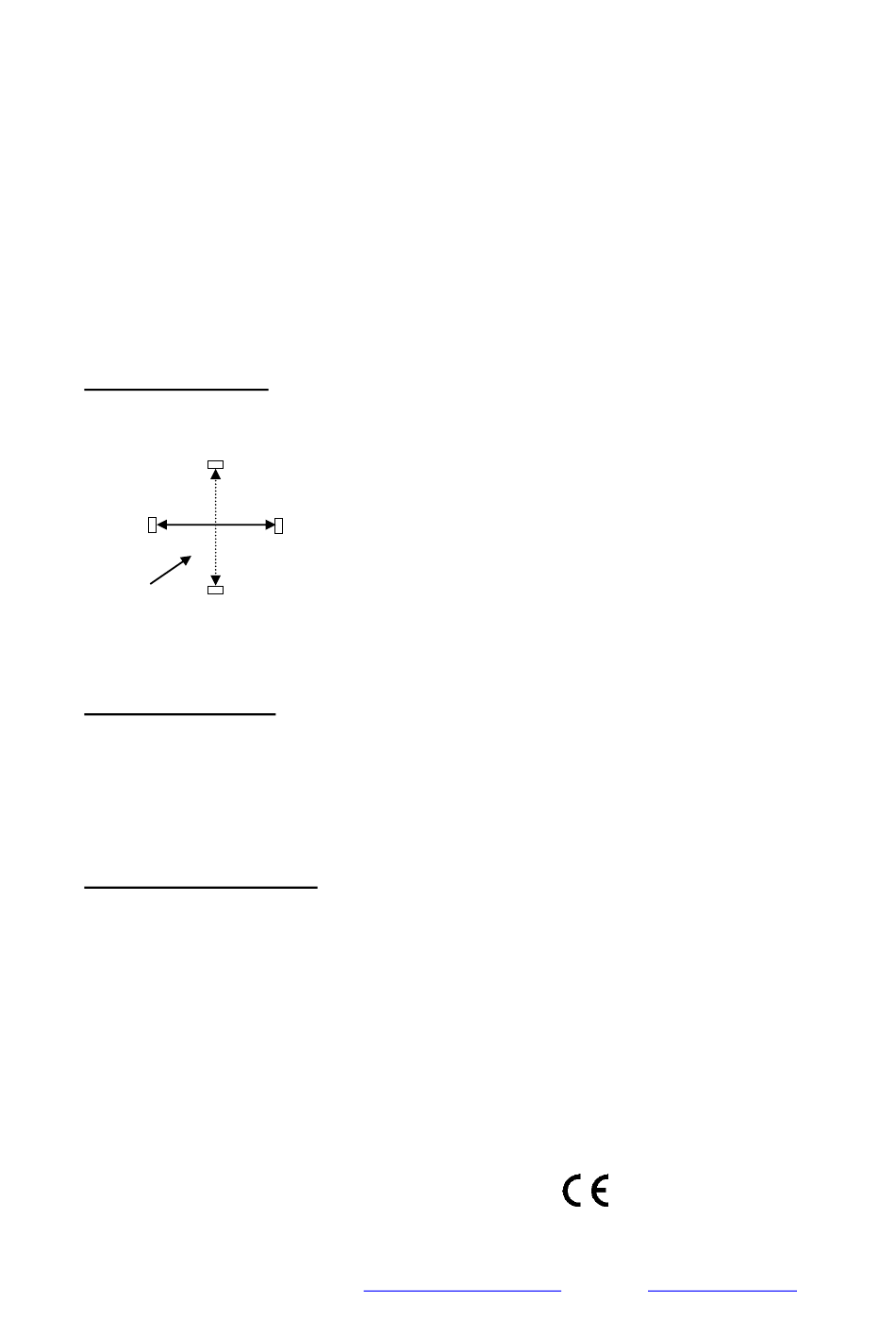

Four electro-acoustic transducers communicate in twos
using ultra-sound signals to determine, in two orthogonal
axes, the differences in transit times of the waves,
induced by the air flow. The measurements are used in an
integrated computer to establish the wind module and its
direction relative to a reference axis.
The measurement of temperature serves to refine the
calibration.
The method provides a sensitivity of 0.5 knots, a range of
up to 100 knots and excellent linearity.
