SM-1080BL3DHD1 Digital Video Microscope
User Manual
This microscope is a precision optical instrument. In order to ensure its
service life and correct daily maintenance. Please read user manual
carefully before using microscope.
Thank you for purchasing our products!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-1080BL3DHD1 and is the answer not in the manual?

Questions and answers

Summary of Contents for SMART Solutions SM-1080BL3DHD1

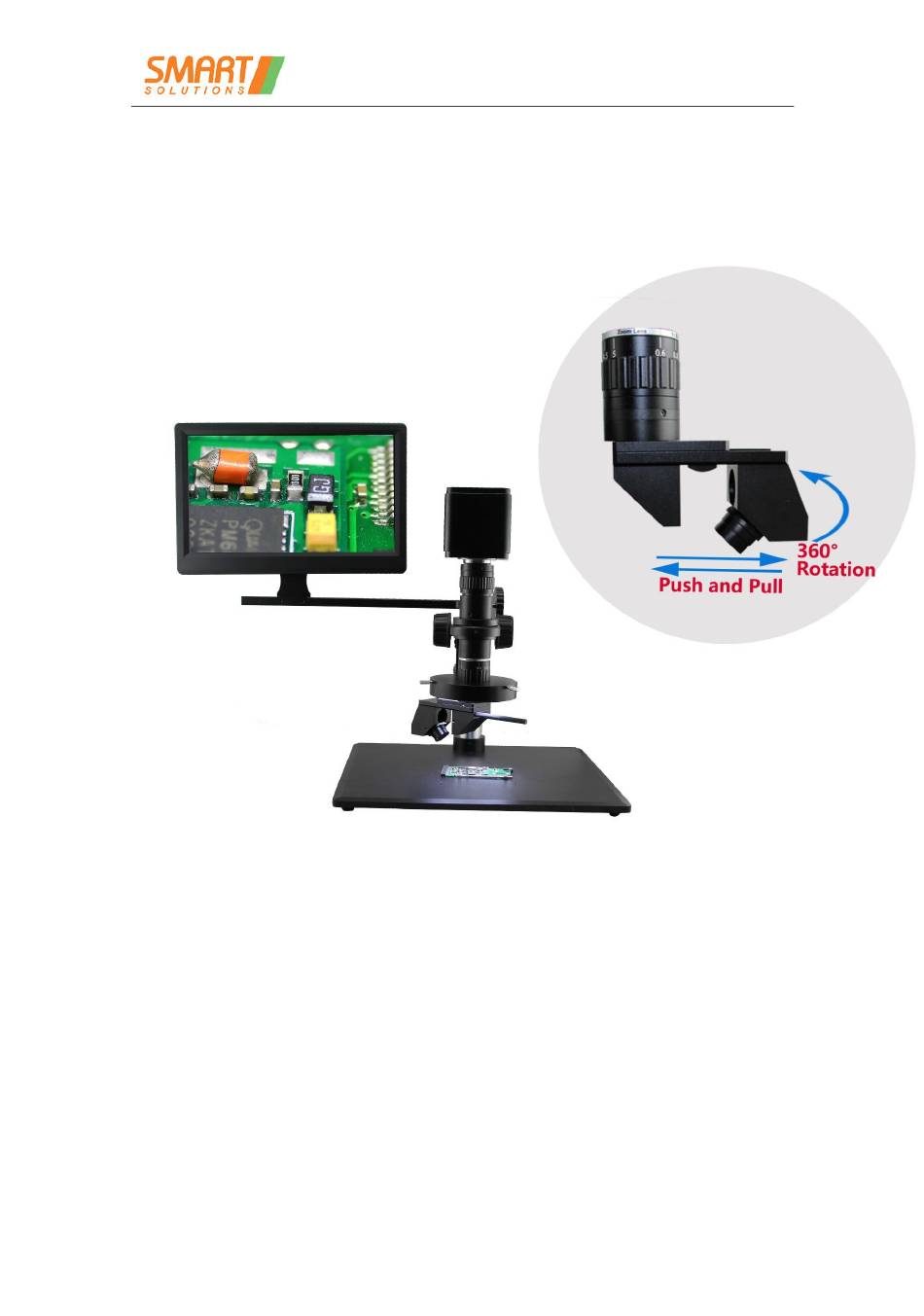

  • Page 1 SM-1080BL3DHD1 Digital Video Microscope User Manual This microscope is a precision optical instrument. In order to ensure its service life and correct daily maintenance. Please read user manual carefully before using microscope. Thank you for purchasing our products!

  • Page 2: Table Of Contents

    CONTENTS Cautions and Notes ................- 1 - Microscope Specification ..............- 1 - 1. Main Feature ................- 1 - 2. Optical Parameter ................. - 2 - Microscope structure and components ..........- 3 - Microscope Install Instructions ............- 3 - Microscope operation instruction ............

  • Page 3: Cautions And Notes

    Microscope Specification 1. Main Feature (1). SM-1080BL3DHD1 3D video microscope body based on infinity optical system. (2). Manual switch 2D and 3D observation freely, 360 °rotation, 45 °objective viewing angle. (3). Working distance always maintain 86mm when you switch 2D and 3D observation, No need to adjust the focus.

  • Page 4: Optical Parameter

    (9). Widely used in microelectronics, precision electronics, precision hardware, deep hole wall, life science, morphology, forensic identification. 2. Optical Parameter Optical mag. 0.3-2.5X，1:8.3 ratio Total mag. 11-95X Lens parameter Working distance 86mm 24*13.5-2.88*1.62mm 2D/3D manual switch freely Working distance always remains same 2D/3D Rotation view The center position remains same 360 °rotation, 45 °objective viewing angle...

  • Page 5: Microscope Structure And Components

    Microscope structure and components 1.stand base 2.2D/3D rotation view 3.4 zones control LED ring light. 4. Zoom body 5.CCD fine focus tube 6.HDMI camera 7.stand post 8.Focusing holder 9.19 inch display 10.Arm of display Microscope Install Instructions 1. Open the package and take out all accessories carefully. 2.
  • Page 6 9. Connect camera with display by HDMI cable. Connect camera with 12V power adapter. One USB port with mouse. Also connect display and LED ring light with 12V power supply. - 4 -...

  • Page 7: Microscope Operation Instruction

    Microscope operation instruction 1. After installing microscope well. Turn on the power supply. 2. When the power is turned on, the camera power indicator is green and the display power indicator is blue. 4. Turn on power of four-zone light source select the area light source and adjust the brightness according to the need.

  • Page 8: Method Of Lens Parfocal And Adjust Center

    Method of lens parfocal and adjust center Since it is not possible to ensure that chip position of each camera is as same as the center. So it is necessary to adjust the lens in order to ensure the image center of each magnification in the center of the display before using.

  • Page 9: The Method Of Adjusting Center

    2. The method of adjusting center. 1) Before adjusting the center. Users must be finish lens parfocal. 2) Turning on the camera's cross function, we can see on the display that the center of the crosshair overlays the center of the display. If the camera does not have cross-line function, you can manually mark the center of the display to represent the center (the center is 5).
