4.2.2 Part Number Structure for Extension Cards
FL
Y
XXXX_00
/S
4.3

Front Panel LEDs

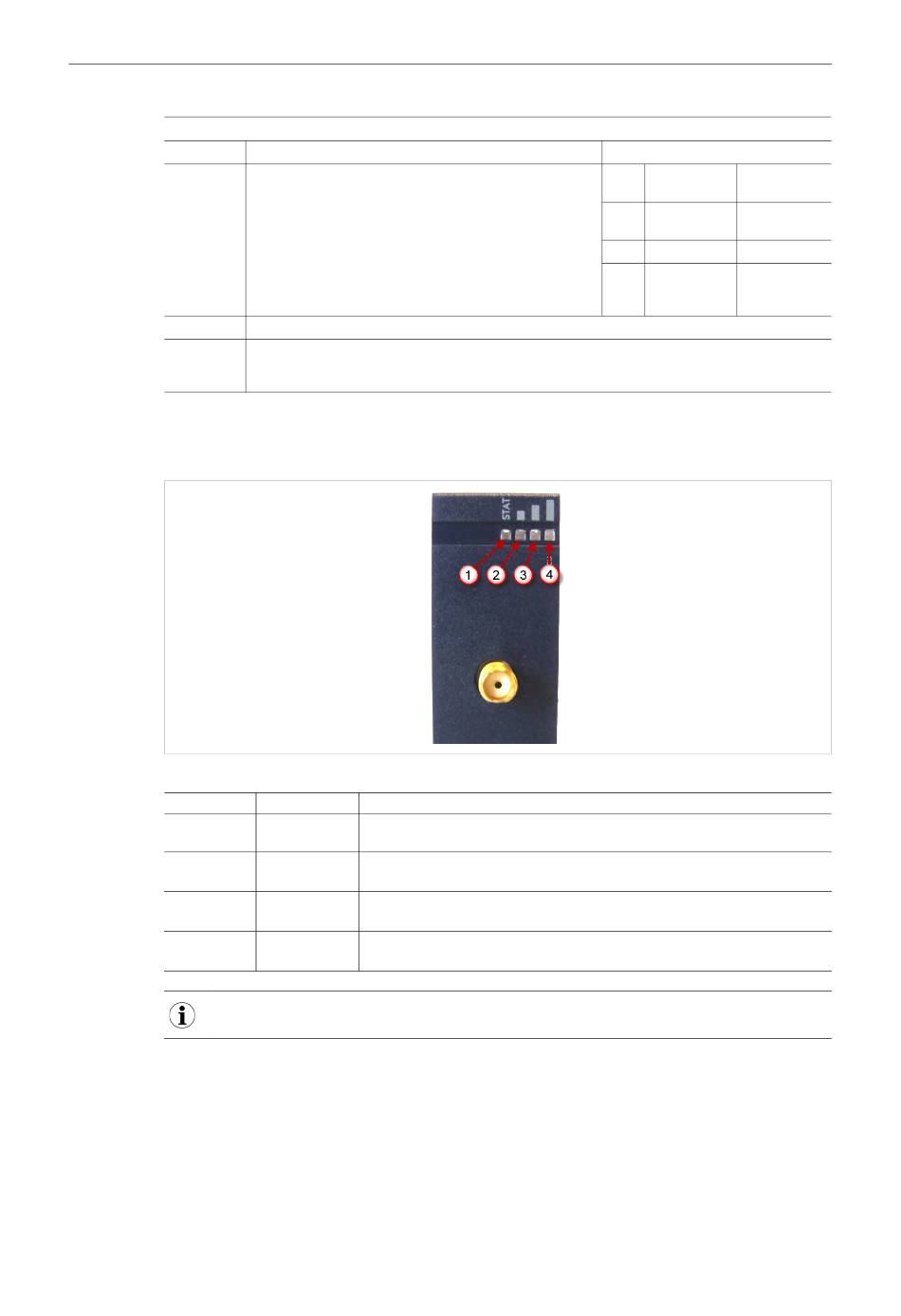

Fig. 3 Front Panel Leds
Item
1
2
3
4
The LEDs represent only the signal level and not the type of technology used to perform a connection.
During the modem boot process, all 4 LEDs are steady orange. If they stay orange, it means the
modem card was inserted in a wrong slot. This induces a base unit boot error pattern on its USR
LED as well.
If all signal level LEDs are off, it either means that:
• the modem was not configured
• the modem configuration is invalid (including wrong PIN-code)
FLB 3204 - 4G (Europe) Extension Card Installation Guide
FL is the prefix for the extensions of the Ewon Flexy family
1 alphabetic sign (CAP)
Defines the slots of the base module in which the extension
card can be inserted.
The extension card type. The suffix _00 is used for software options.
The suffix might have an optional "/" character
It might also be blank or include "S" character => Indicates compliance with the UL/IEC/EN 60950
standard.
Mark Function
STAT
Tricolor: Red / Orange / Green
Green ON = Modem is online
Reception Signal level
▅
Orange ON = level > 1 (poor signal)
Reception Signal level
▅ ▆
Orange ON = level > 10 (signal ok)
Reception Signal level
▅ ▆ ▇
Orange ON = level > 16 (good signal)
FLYXXXX_00/S
Only FL (constant)
A
B
X
C
8 (20)
●●○○
2 first slots
only
○○●●
2 last slots
only
●●●●
Any slots
○○○○
Any slots.
Available for
Flexy 205 only.
