Summary of Contents for ACQUA SOURCE RCP-1500

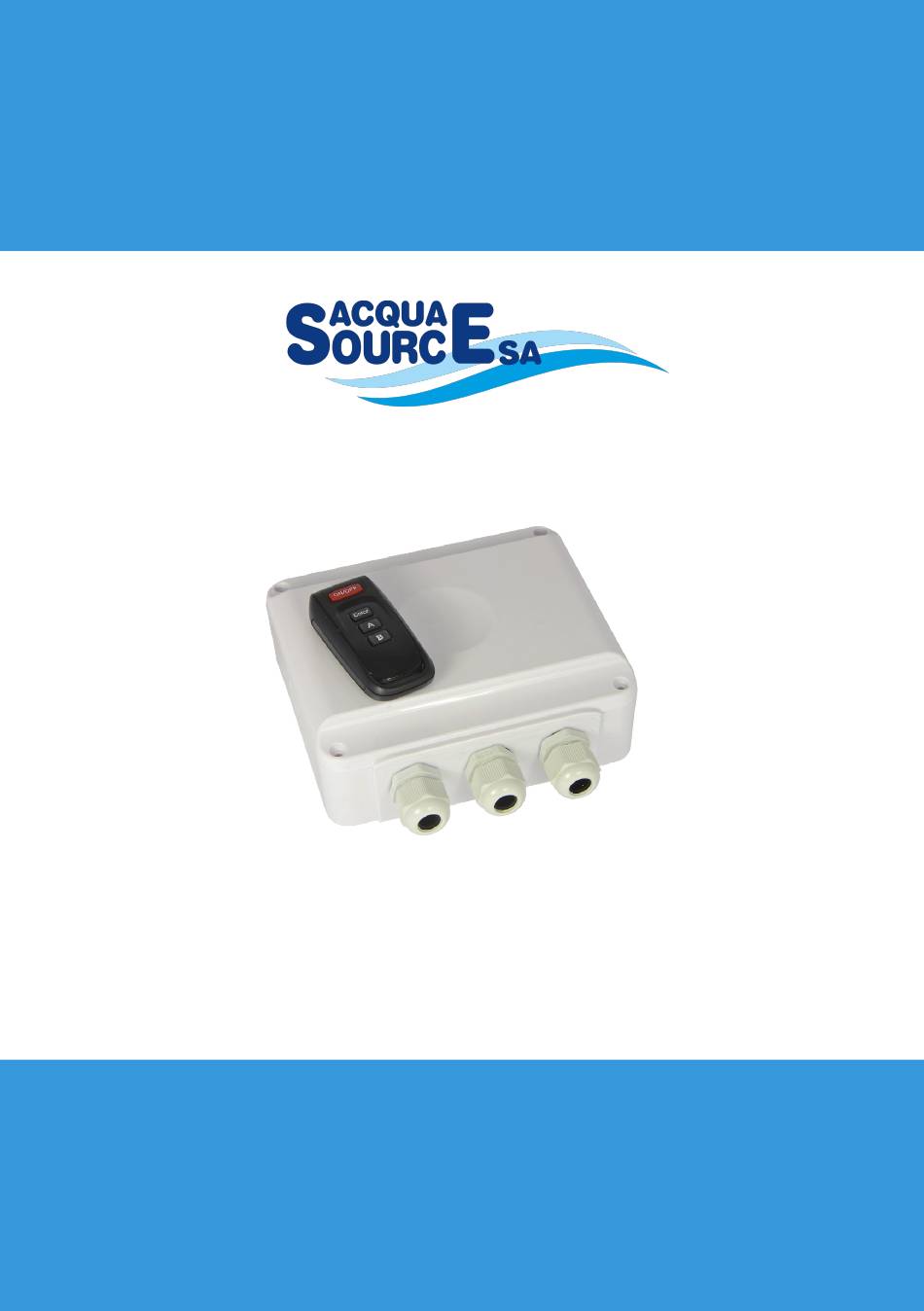

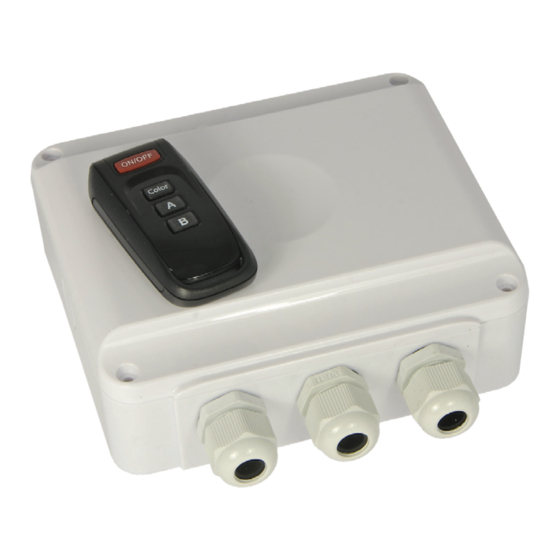

- Page 1 LED pool light Remote Control OWNER’S MANUAL RCP-1500 Controls Pool Lights and 2 auxiliary circuits...
-
Page 2: Table Of Contents
Table of contents Technical specifications Page 3 Box contents Page 4 Installation instructions Page 5-6 Page 7 Pairing Handheld Transmitter & controller Handheld transmitter functions Page 8 Replacing transmitter battery Page 8 Page 9 Troubleshooting page 2 of 12... -
Page 3: Technical Specifications
Technical specifications Electrical specifications Nominal Input voltage 230 VAC 50 Hz Max rating Relay Contacts “Color&Light”, “A” and “B” Resistive Load 14A 250VAC 14A 30VDC Inductive Load 6A 250VAC 6A 30VDC Frequency band transmitter 868 MHz IEC Protection Class Class II General specifications Controller Ambient air temperature 0°C ... -
Page 4: Box Contents
Box contents 1. RCP-1500 controller 2. Handheld transmitter 3. Spare battery (type A23 12V) 4. Screws (4x) & wall plugs (4x) 5. Owners’s manual page 4 of 12... -
Page 5: Installation Instructions
• Connect the primary circuit of a 12VAC transformer (sold sepa- rately) in series with the “Color&Light” terminal of the RCP-1500. Optional: The “Switch A” & “switch B” terminals can be used to control auxiliary circuits like a pool cover or garden lights. - Page 6 • Connect the secondary circuit of a 12VAC transformer (sold sepa- rately) in series with the “Color&Light” terminal of the RCP-1500. Optional: The “Switch A” & “switch B” terminals can be used to control auxiliary circuits like a pool cover or garden lights.
-
Page 7: Pairing Handheld Transmitter & Controller
Pairing handheld transmitter & controller The handheld transmitter is already paired in the factory and ready to use. The RCP-1500 can pair with up to 6 handheld transmitters. In case a problem arises, the pairing process can be done manually: Manual Pairing process: Make sure the RCP-1500 is connected to a power source. -
Page 8: Handheld Transmitter Functions
Handheld transmitter functions Toggle the lamps ON/OFF Go to next color program Toggle Output A ON/OFF Toggle Output B ON/OFF Replacing transmitter battery • Remove the philips head screw and open the transmitter • Replace the battery, respecting the polarity Battery type: A23 12V page 8 of 12... -
Page 9: Troubleshooting
The transmitter is not paired- correctly with the controller. Repeat the pairing process • Reduce the distance between handheld transmitter and RCP-1500 and/or remove obstacles • Check if all connections are The pool lights don’t work made according to the electri- cal scheme on page 5 or 6. - Page 10 Connection Diagram...
- Page 12 15 Souri str., 121 31 Peristeri Athens, Greece Tel. & Fax: +30 210 5721058, +30 210 5771863, +30 210 5774345 E-mail: info@acquasource.gr www.acquasource.gr We reserve the rights to change all or part of the contents of this document without prior notice...
