Summary of Contents for dito Unilink 200
- Page 1 Unilink 200 Quick Installation Guide...
- Page 2 Before you Begin ........2 3.1 CPE Package ........2 3.2 Getting to know the Unilink200..2 3.3 LED Indicators ........3 3.4 Online Device Management Portal ..4 Factory Resetting of Your Unilink 200 ..6 Q&A ............7...

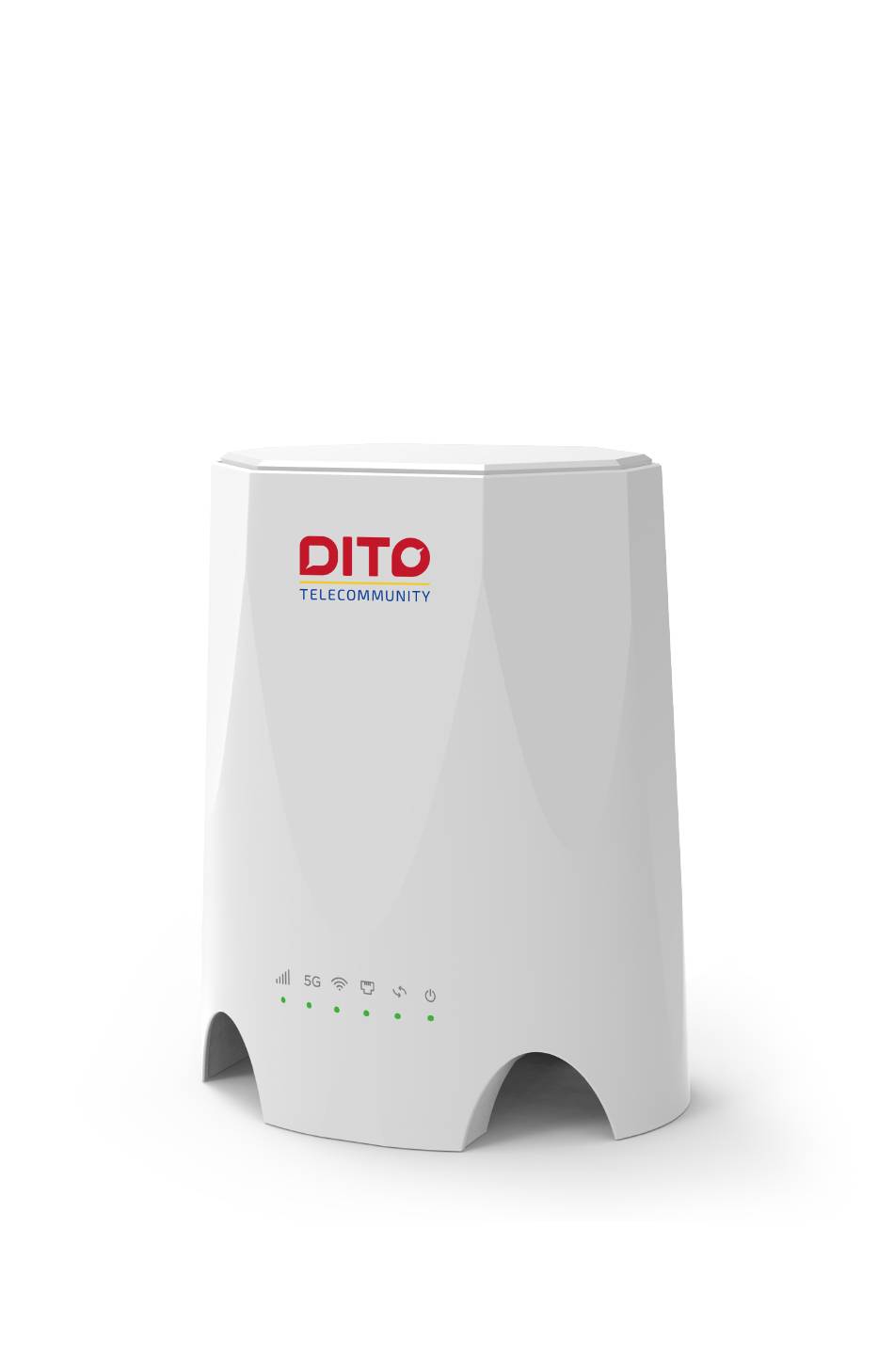

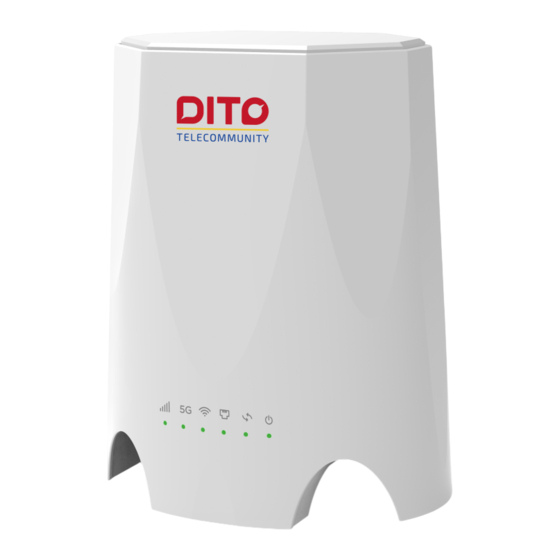

- Page 3 3. Before you Begin Check the following items in this package. 3.1 CPE Package Item Quantity Power supply(12V2A) Unilink 200 Ethernet cable Device label Gift box label 3.2 Getting to know the Unilink200 The figures below are provided only for reference purposes.
- Page 4 DC：This slot is for inserting the DC charge RJ45: Ethernet connectors 100/1000Mbps USIM: This slot is for inserting 4FF USIM card USB: This slot is for inserting the USB cable WPS：Press this button for 5 seconds to connected WPS function RST: Press this button for 5 seconds to restore factory defaults 3.3 LED Indicators...
- Page 5 You can access your Unilink 200 Online Portal to view device status, change your device settings, and perform manual software Upgrades. 1. While you are connected with Unilink 200 over WiFi or LAN. Use any web browser and enter http://192.168.8.1 in the URL address bar.
- Page 6 3. From the HOME menu, you can view your device information and network status like Signal quality, Network name. 4. If network status is showing Connected and you can see IP addresses in Internet status. That indicates that CPE is connected with network and ready to use.
- Page 7 Reset pin hole Using Online Portal (WebGUI) 1. Make sure your Unilink 200 is powered on and you have access to WebGUI. 2. Go to ABOUT > Backup and Restore, and click on Restore Factory Defaults button. The device will then restore the factory defaults and reboot.
- Page 8 The Power LED indicator is not ON. 1. Check if the Power adapter is plugged properly into AC socket. 2. Check power adapter is connected to Unilink 200 properly. Note: Use only provided Power Adaptor comes with packaging along with the device Web Based Utility (WebGUI) cannot be accessed 1.
