Bravobase
User manual
General information
* It is essential that you and any other operator of this product read and
understand the content of this manual before installing and using this product !
* In order to avoid operating errors, these manual must be accessible
to the staff at all times.
* The Hoverboard should only be used for the purpose as described.
Please refer particularly to the instructions of the used stretcher.
* The illustrations do not necessarily correspond to the delivered equipment
and are not true to scale.
*
We take no liability for damages caused by operating errors
or improper assembly or repair.
* Please pay close attention to the country-related, applicable safety regulations
for patient transfer.
* Subject to technical changes.
HOVERBOARD
HOVERBOARD
HOVERBOARD
GmbH
Gewerbepark 10
Edition: 1/2023
A-6068 Mils - AUSTRIA
www.hover.at
Advertisement
Table of Contents
Related Manuals for Hoverboard Bravobase
Summary of Contents for Hoverboard Bravobase
- Page 1 * In order to avoid operating errors, these manual must be accessible to the staff at all times. * The Hoverboard should only be used for the purpose as described. Please refer particularly to the instructions of the used stretcher.

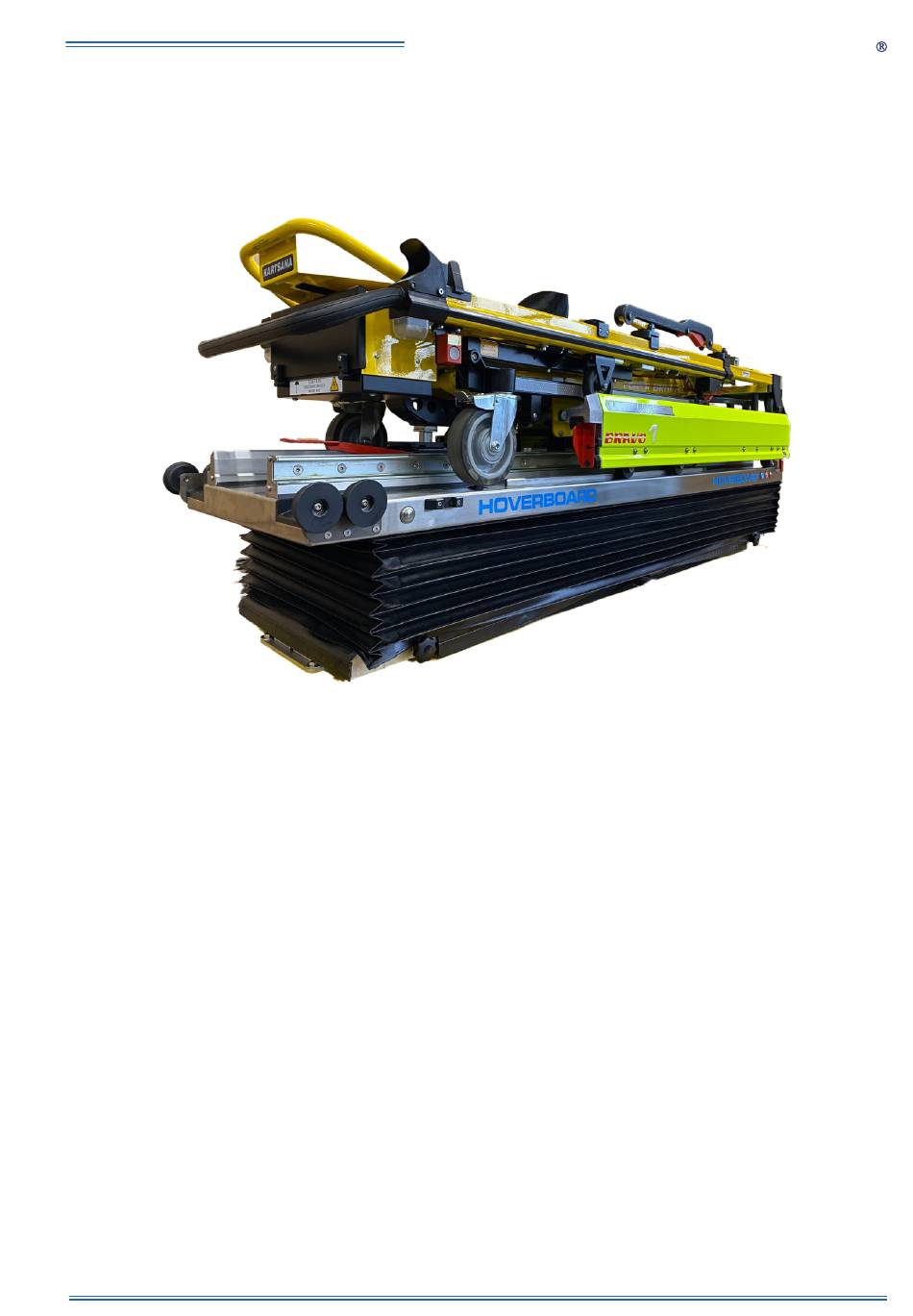

- Page 2 HOVERBOARD HOVERBOARD Bravobase Description 1... Pneumatic suspensions with automatic weight adjustment from 40-520 kg/88-1146 lbs and hydraulic shock absorbers. Total vertical stroke 170 mm/6.7" 2... Stretcher mounting plate 3... Lateral movement device with pneumatic release (option) 4... Switch box, contains: a) Relay, 12V...
-
Page 3: Technical Data
HOVERBOARD Bravobase Assembly The Hoverboard may only be installed by qualified personnel (e.g. car technicians or body fitters) and in accordance with the assembly instructions supplied. The assembly operator is responsible for damages caused by improper assembly ! Technical data... - Page 4 It also lowers if you unlock the powerBRAVA on the Hoverboard. Pressing the switch for the optional CPR-position (for resuscitation/reanimation) raises the Hoverboard to the highest (fixed) position, the switch (if on the device) lights up red. This function is only active when the main switch is switched on.
-
Page 5: Operation
In case of malfunction or lack of air pressure you may unlock it by the knobs. For correct loading and unloading please refer to the instructions of the stretcher. Please pay attention to the correct locking of the stretcher on the Hoverboard. Purification All Hoverboards are made of high quality stainless steel of the type 1.4301 and... -
Page 6: Maintenance
Hoverboards are basically maintenance-free, but we recommend an annual inspection with a functional check, regarding e.g. the Bravobase, as part of the maintenance of the Kartsana powerBRAVA. This can be managed by one of our certified service partners, whom you find on www.hover.at... -
Page 7: Connection Layout
HOVERBOARD HOVERBOARD Bravobase Connection layout Option lateral movement device (LMD): blue, Option reanimation (RA):red target colour cross-section target colour/cross-section ground (31) brown compressor black jumper grey PowerBRAVA black jumper grey solen. valve 1 black jumper grey solen. valve 2 black... -
Page 8: Spare Parts
HOVERBOARD HOVERBOARD Bravobase Spare parts Air suspension 30311 air cushion 30057 solenoid valve block 30620 > with shock absorber 30621 > without shock absorber 30058 solenoid valve 1 30059 solenoid valve 2 30209 external compressor 30291 level control valve 30292 valve control bow... - Page 9 HOVERBOARD HOVERBOARD Bravobase Spare parts plug and wires 30072 Reed switch 30302 adjustable shock absorber 35020 for main switch 30073 Block magnet 35021 for toggle switch 35022 for front pushbutton 35023 for rear pushbutton 30511 31020 quick connector 4-4-4 JPT-plug for 10 pins F...
- Page 10 HOVERBOARD HOVERBOARD Bravobase Spare parts 35010 main switch (blue) 35011 toggle switch (red) 35012 LMD pushbutton 30244 pressure tube 4 mm, red 30066 pressure switch, 30248 teflon tube, 30245 pressure tube 4 mm, blue white calibrated 8,5 bar 30246 pressure tube 4 mm, yellow...
- Page 11 HOVERBOARD HOVERBOARD Bravobase Spare parts 31011 LMD pneumatic cylinder 31030 linear bearing 31040 knob 62002 external compressor box 52012 switchbox stainless steel, empty (without compressor) 62003 external compressor box 62301 switchbox complete with valves, terminal block and relay (with compressor)
- Page 12 HOVERBOARD HOVERBOARD Bravobase In line with our continuous improvement program, we are always grateful for your suggestions, requests, complaints and proposals for improvement. Therefore we look forward to hearing from you at Phone +43 - 660 - 800 9000 Mail info@hover.at...
