Maclean Energy MCE610 - Ring Light Manual

Overview

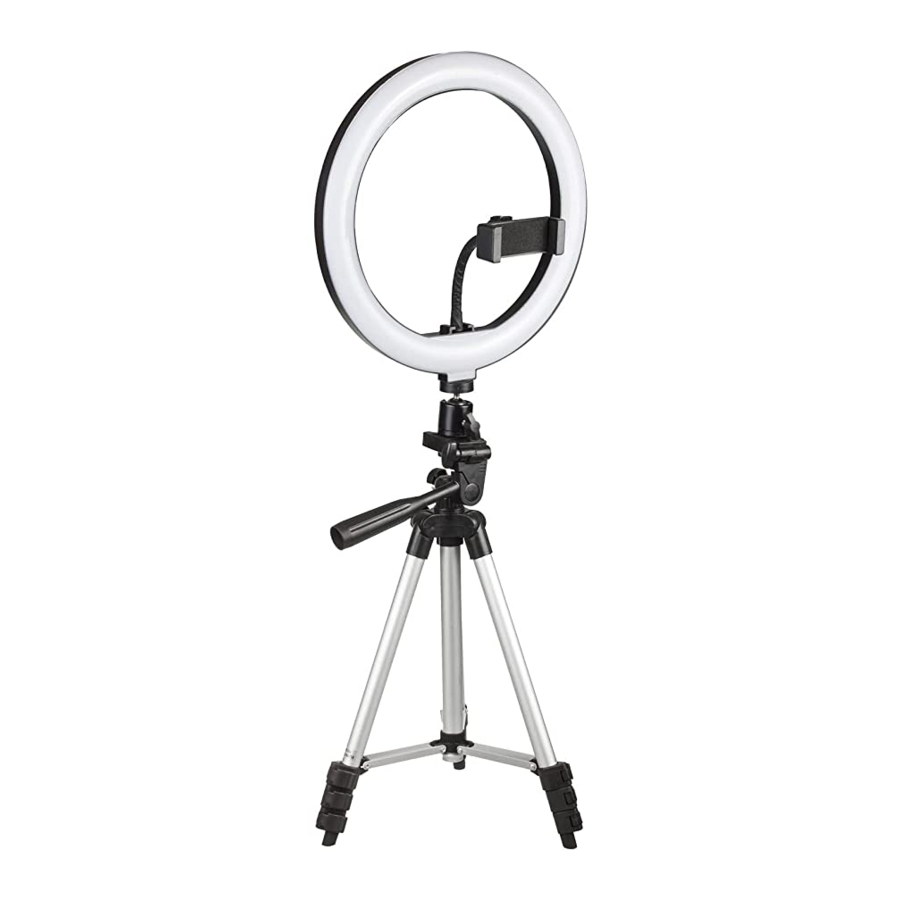

LED Ring Light 10"

Operation:
The product is used in photography / live broadcasts / streaming / when performing cosmetic, make-up and other treatments, during which proper lighting is necessary.

Assembly:
The product is mainly used with a tripod. At the bottom of the handle head there is a hole that allows You to mount it to a tripod. The lamp has got an adjustable angle of ring inclination.

Instructions

1. After installing the product, connect the USB to a power source and press ON/OFF to turn on.
2. MODE button: The color of the light can be adjusted:
   (Cool white, warm white, neutral white).
3. BRIGHTNESS (+/-) You can adjust the brightness of the ring light.
4. After finishing work, press ON/OFF to turn off the product.

1. If an adapter is used, recommends using 5V / 2.A.
2. Disconnect the device from the power source after finishing work.

Technical data

• Power 12W
• Max. lifetime 20,000h
• Number of LEDs: 160 pcs
• Cord Length: 2m
• Voltage: 5V DC, 2000mA
• Luminous flux max. 720lm
• Dimmable: 10-100%
• Color temperature: 3200 - 5600k
• Lamp Diameter: 10 "(25.5 cm)
• Protection class: III

Assembly

1. Loosen the locking knob and install the ring light on a tripod.

2. Fully tighten the locking knob.

3. Connect the power cord.

4. Turn on the lamp

5. Select the appropriate light colour and brightness with the remote control.

6. Adjust the angle of the lamp by using the handle.


The set contains

• LED Ring Light 10"
• USB Power Cable
• Smartphone holder
• Tripod
