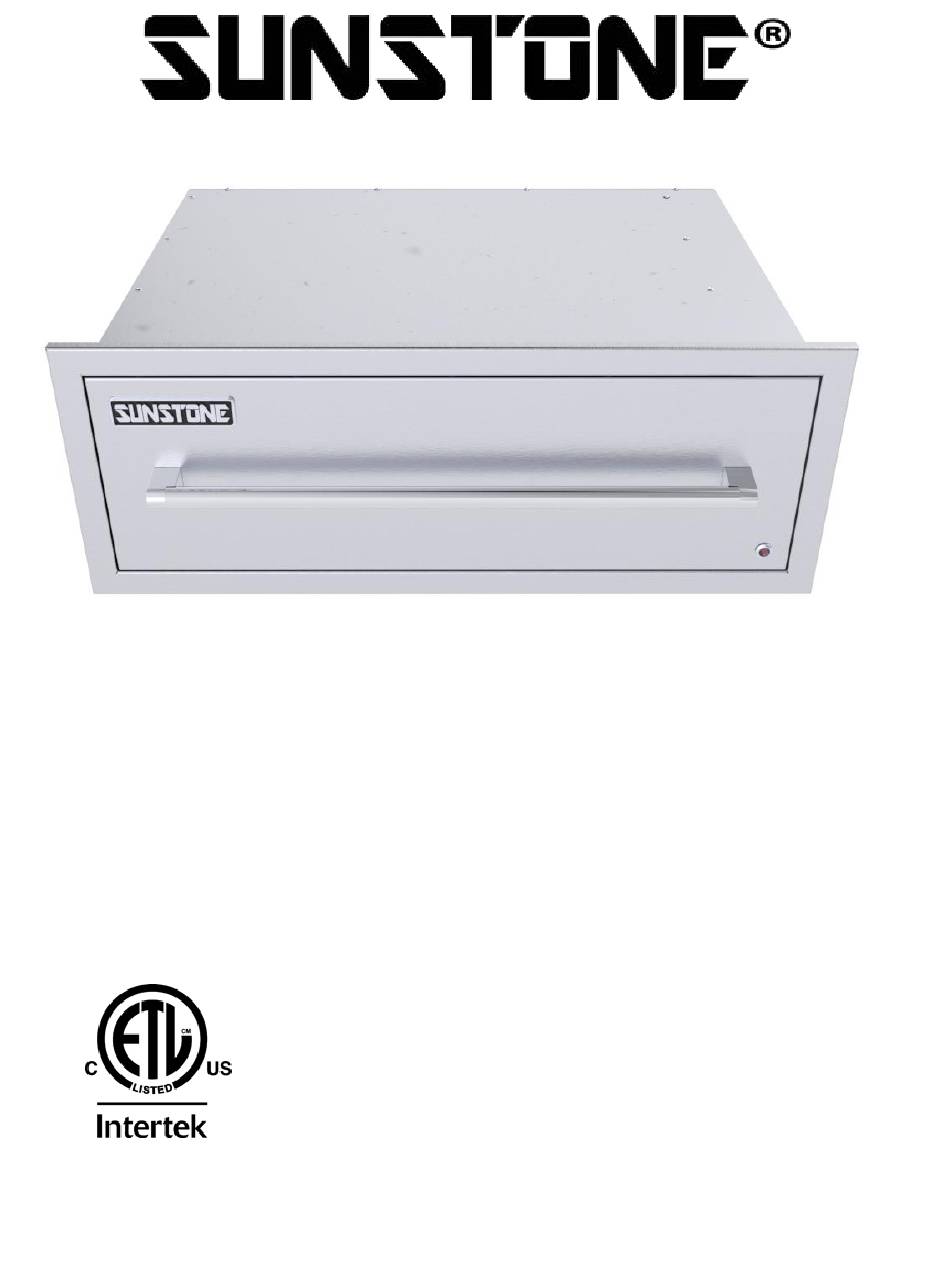

Sunstone® 30-inch Electric Warming Drawer
Item Number - SAP30WDPRO
Read all instructions before you operate your appliance.
CERTIFIED
Save these instructions!
To installer or person assembling appliance:
manual with appliance for future reference.
Keep this manual for future reference.
To consumer:
www.sunstonemetalproducts.com
Leave this
Advertisement
Summary of Contents for SUNSTONE SAP30WDPRO
- Page 1 Sunstone® 30-inch Electric Warming Drawer Item Number - SAP30WDPRO Read all instructions before you operate your appliance. Save these instructions! Leave this To installer or person assembling appliance: manual with appliance for future reference. Keep this manual for future reference.
- Page 2 Welcome & Congratulations Congratulations on your purchase of a new Sunstone Warming Drawer! We are very proud of our product and we are completely committed to providing you with the best service possible. Your satisfaction is our #1 priority. Please read this manual carefully to understand all the instructions about how to install, operate and maintain for optimum performance and longevity.
- Page 3 INDEX DIRECTORY HAZARDS & WARNING SIGNS ATTENTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate personal injury, or property damage. WARNING: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS ATTENTION: Read all instructions carefully before operating your warming drawer. Pre-Install Customer Checklist Contact Qualified Electrical Installer 110-volt electrical supply GFCI outlet near warming drawer Recommend separate circuit serving this appliance only Grounded 3-Prong GFCI Plug Maintain 24” Clearance of Combustible Materials All parts and components are properly installed Island is properly vented with minimum two vents VOLTAGE –... - Page 5 DRAWER PARTS – PARTS LIST & DIAGRAM PAGE 1...
- Page 6 DRAWER INSTALL – PRODUCT DIMENSIONS PAGE 2 : Use only with a Ground-Fault Circuit Interrupter - GFCI protected outlet LIVE CIRCUIT with this appliance. : Use only extension cords approved for outdoor use marked with W-A and VOLTAGE rated for the power of this appliance. Technical Measurements Product Dimensions Overall Width--------------------...
- Page 7 DRAWER INSTALL – INSTALLATION OVERVIEW PAGE 3 Cut-Out Dimensions Cut-out Width ------------------------ 28-1/2" Cut-out Height ------------------------ 10" Cut-out Depth ------------------------- 20-1/2" Clearance Behind Drawer ----------- 4” STEP BY STEP INSTRUCTIONS 1. Provide a 28-1/2” W x 10” H cutout to the front of the island wall 2.
- Page 8 DRAWER START-UP – USING WARMING DRAWER PAGE 4 1. Proper Installation – be sure your appliance is properly installed and grounded by a qualified technician. 2. Never Use Your Appliance for Warming or Heating the Room. 3. Do Not Leave Children Alone – Children should not be left alone or unattended in area where the appliance is in use.
- Page 9 DRAWER START-UP – DIGITAL CONTROLS PAGE 5 Open Drawer to Access Digital Control Panel 1. Turn on unit with “Power” button located at bottom of control panel. 2. Press the Upward Facing Arrow to bring the temperature to your desired level.
- Page 10 DRAWER INSTALL – DESIGNER PANEL UPGRADE PAGE 6 DESIGNER DRAWER FACE UPGRADE 1. Extend the drawer box all the way out, if you need greater access, lift and lower each side drawer track pin to remove the entire drawer, place on counter. 2.
- Page 11 DRAWER INSTALL – CONFIGURATIONS PAGE 7 1. SCREW IN PEG-LEGS INTO BACK UNDERSIDE OF WARMING DRAWER Peg-Legs are designed to allow perfect leveling of warming drawer and enables drawer to be stacked in combination with other drawers or components. 2. STACK INDIVIDUAL WARMING DRAWERS INTO MULTIPLE COMBINATIONS The Peg-Legs act as a leveling and spacing device between two stacked warming drawers.
- Page 12 DRAWER INSTALL – CONFIGURATIONS PAGE 8 1. PLACE TWO DRAWERS INTO OUR DUAL- DRAWER CABINET – SAC34DWC Warming Drawers can be placed into our Appliance Cabinet (SAC34DWC which holds two drawers.) The cabinet is all stainless steel with built-in venting and 1-Gang Box behind each drawer.
- Page 13 PAGE 9 TROUBLE SHOOTING Q. Warming Drawer does not operate. Check the Power is ON. Verify the electrical power to warming drawer and home circuit breaker is on and functioning. Check the power cord in the back of warming drawer if it is tightly pressed in. Q.
- Page 14 The cost of service calls to diagnose trouble; or Removal or re-installation cost. This warranty applies to the original purchaser with invoice or proof of purchase and covers Sunstone products intended for personal, family or household usage only. It does not apply to surface rust, corrosion, oxidation or discoloration, which may occur due to moisture or overheating, unless the affected component becomes inoperable.
