BLACKMER POWER PUMPS
INSTALLATION OPERATION AND MAINTENANCE INSTRUCTIONS
MODELS: XRLF1.25B, XRL1.25A, XLF1.25B, XL1.25A, XLF1.5B, XL1.5A
Discontinued: XRLF1¼(A), XLRL1¼, XLF1¼(A), XL1¼, XLF1½(A), XL1½
TABLE OF CONTENTS
Technical Data .................................................... 2
Initial Pump Start Up Information ......................... 2
Pre-Installation Cleaning ..................................... 3
Location and Piping ............................................. 3
Check Valves ...................................................... 3
Mounting ............................................................. 3
Motor Adaptors .................................................... 3
Coupling Alignment ............................................. 4
Pump Rotation..................................................... 4
To Change Pump Rotation .................................. 4
Pre-Start Up Check List ....................................... 4
Start Up Procedures ............................................ 5
Flushing the Pump .............................................. 5
Pump Relief Valve ............................................... 5
Relief Valve Setting and Adjustment ................... 5
Strainers ................................................................. 6
Lubrication .............................................................. 6
Vane Replacement ................................................. 7
Pump Disassembly ................................................ 7
Parts Replacement ................................................. 7
Pump Assembly ..................................................... 8
TROUBLE SHOOTING ............................................... 10
NOTE: Numbers in parentheses following individual parts
indicate reference numbers on Blackmer Parts List No.
107-A01.
Blackmer pump manuals and parts lists may be obtained
from Blackmer's website (www.blackmer.com) or by
contacting Blackmer Customer Service.
When you see this symbol on the product, or in
the manual, look for one of the following signal words
and be alert to the potential for personal injury,
Warns of hazards that WILL cause serious personal injury,
Warns of hazards that CAN cause serious personal injury,
Page
Warns of hazards that CAN cause personal injury
Indicates special instructions which are very
Blackmer power pumps MUST only be installed in
systems which have been designed by qualified
engineering personnel. The system MUST conform
to all applicable local and national regulations and
safety standards.
This manual is intended to assist in the installation
and operation of the Blackmer power pumps, and
MUST be kept with the pump.
Blackmer power pump service shall be performed by
qualified technicians ONLY. Service shall conform to
all applicable local and national regulations and
safety standards.
Thoroughly review this manual, all Instructions and
hazard warnings, BEFORE performing any work on
the Blackmer power pumps.
Maintain ALL system and Blackmer power pump
operation and hazard warning decals.
960207
INSTRUCTIONS NO. 107-A00
Section
Effective
Replaces
SAFETY DATA
This is a SAFETY ALERT SYMBOL.
death or major property damage
death or major property damage.
death or major property damage.
or property damage.
NOTICE:
important and must be followed.
NOTICE:
107
Aug 2014
Jan 2014
Advertisement
Table of Contents
Summary of Contents for Dover PCG Blackmer XRLF1.25B
-
Page 1: Table Of Contents

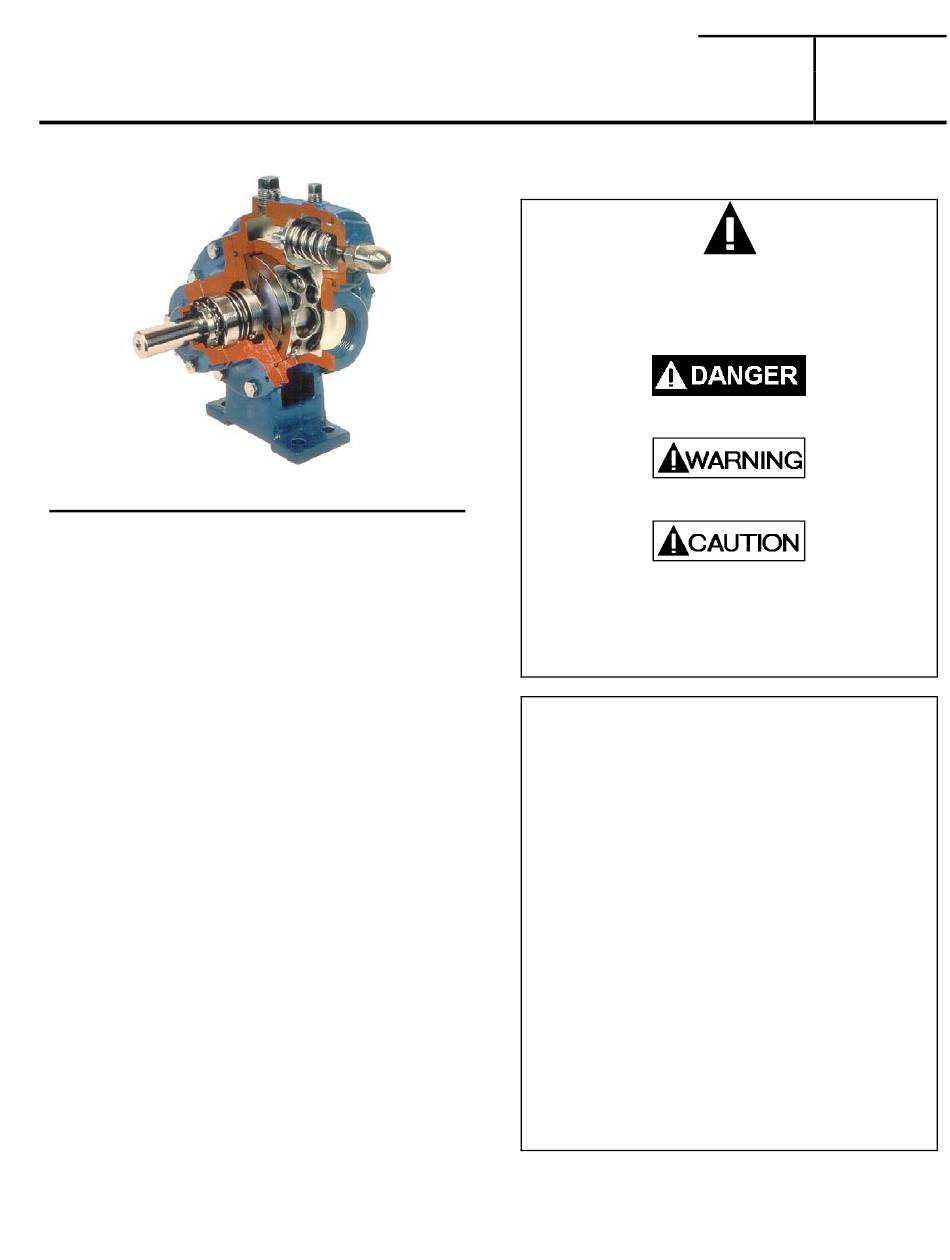

960207 BLACKMER POWER PUMPS INSTRUCTIONS NO. 107-A00 INSTALLATION OPERATION AND MAINTENANCE INSTRUCTIONS Section Effective Aug 2014 MODELS: XRLF1.25B, XRL1.25A, XLF1.25B, XL1.25A, XLF1.5B, XL1.5A Replaces Jan 2014 Discontinued: XRLF1¼(A), XLRL1¼, XLF1¼(A), XL1¼, XLF1½(A), XL1½ SAFETY DATA This is a SAFETY ALERT SYMBOL. When you see this symbol on the product, or in the manual, look for one of the following signal words and be alert to the potential for personal injury,... -
