–OPERATING INSTRUCTIONS–
BULLETIN 289
MODEL B200 MAY 2023
CONTOUR PROBE
The B200 Contour Probe is a rugged high performance instrument for Magnetic Particle inspection
to accepted Nondestructive testing standards. Certain operating procedures and safety
precautions should be observed.
INSTRUMENT DESCRIPTION: Basically, the Contour Probe is an electromagnet producing a
strong magnetic field. Placement of the two poles (legs) upon ferrous metal provides a path for the
intense magnetic field to pass from one pole to the other. The part completes the flux path and
becomes highly magnetized. The Model B200 produces a strong constant AC field. All Parker
Contour Probes are designed with flexible legs that allow the field to be "focused" at a precise area
of inspection. The maximum leg spacing is 12 in. (304.8mm). The B200 series Contour Probe
comes equipped with a 10' (3.048 m) power cord.
The B200 is for use on 115 VAC 60 Hz, single phase grounded power source. Using an approved
GFCI is recommended.
SPECIFICATIONS
POWER
MODEL FIELD WEIGHT
REQUIREMENTS
115 VAC
7 lbs.
B200 60 Hz AC
(3.18 kg)
3 AMPS

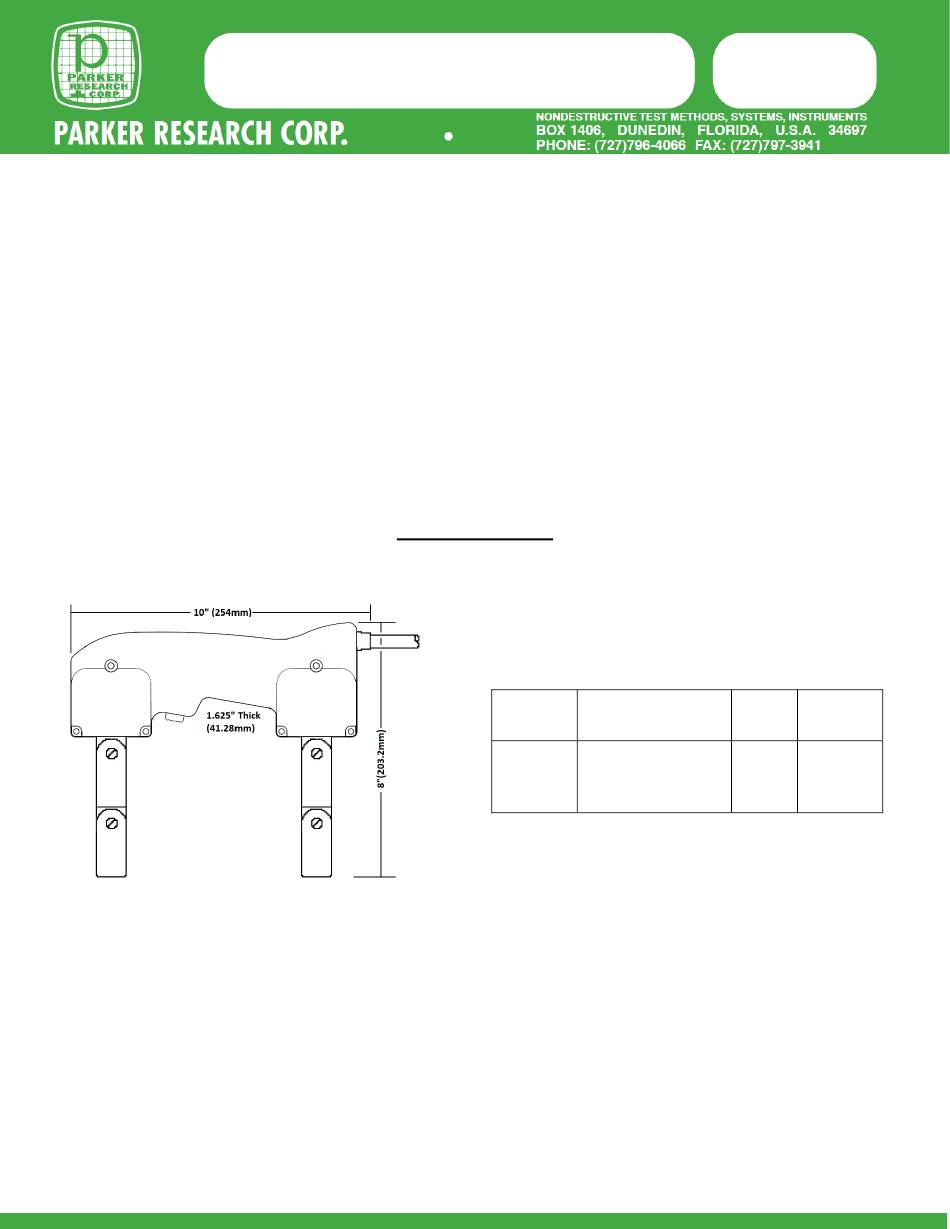

FIG. 1
