ASSEMBLY GUIDE
WINCH

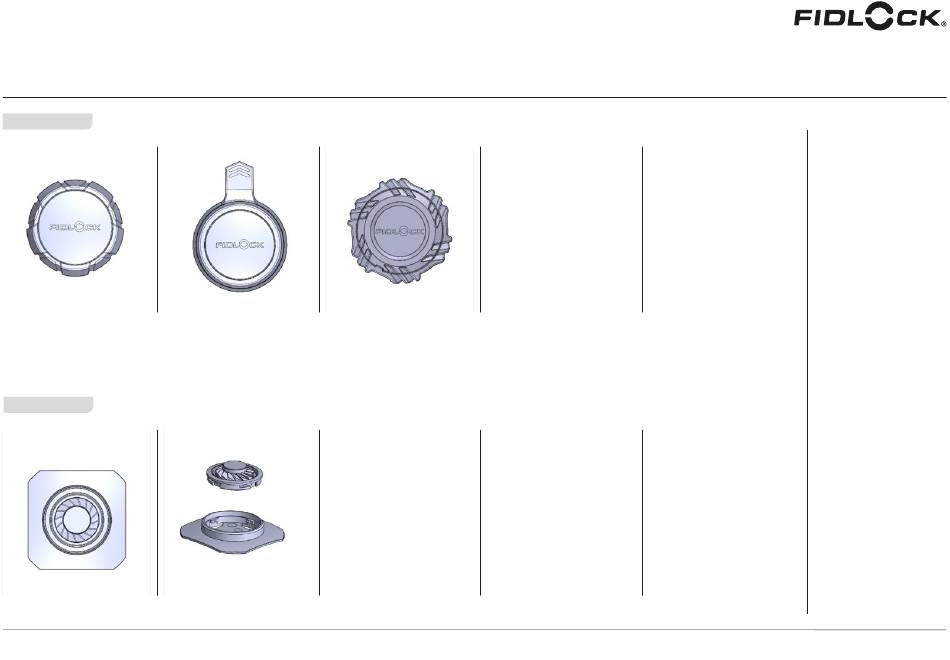

product family
female
male
momentum
male
base
page 1
elegance
compact
clip-in base
SET article numbers
every set contains a
male and female part
•
F1500-L00012(BLK)
•
F1500-R00012(BLK)
•
F1510-L00002(BLK)
•
F1510-R00002(BLK)
•
F1520-L00002(BLK)
•
F1520-R00002(BLK)
•
F1540-L00002(BLK)
•
F1540-R00002(BLK)
•
F1550-L00002(BLK)
•
F1550-R00002(BLK)
•
F1560-L00012(BLK)
•
F1560-R00012(BLK)
v01 / © FIDLOCK 2023
Advertisement
Related Manuals for Fidlock WINCH
Summary of Contents for Fidlock WINCH
- Page 1 • F1500-L00012(BLK) • F1500-R00012(BLK) • F1510-L00002(BLK) • F1510-R00002(BLK) • F1520-L00002(BLK) momentum elegance compact • F1520-R00002(BLK) • F1540-L00002(BLK) • F1540-R00002(BLK) male • F1550-L00002(BLK) • F1550-R00002(BLK) • F1560-L00012(BLK) • F1560-R00012(BLK) base clip-in base page 1 v01 / © FIDLOCK 2023...
- Page 2 Handle and base engage Tighten the lace by Detach the handle from by magnetic attraction. the base by lifting/tilting turning handle. and unspool the lace. page 2 v01 / © FIDLOCK 2023...
- Page 3 To speed up the rope assembly you might want to use additional tools like tweezers, hair extension needles or beading needles. These are not included. page 3 v01 / © FIDLOCK 2023...
- Page 4 4 v01 / © FIDLOCK 2023...
- Page 5 +5° on application under real conditions 5° page 5 v01 / © FIDLOCK 2023...
- Page 6 F1510-L00002(BLK) F1550-L00002(BLK) • • F1510-R00002(BLK) F1550-R00002(BLK) • winch momentum and elegance offer the same technology with a different handle design • featuring a ratchet mechanism • available in left and right turning direction page 6 v01 / © FIDLOCK 2023...
- Page 7 WINCH momentum/ elegance Overview cover Winch momentum/ elegance handle • for lace diameter 1.2-2.75mm • delivered assembled • laces, eyelets or laceguides not included • magnet inside • do not heat above 80°C spool page 7 v01 / © FIDLOCK 2023...
- Page 8 Make sure you have the desired turning direction Prepare the rope so it has no open end. Use one of the those ways to lace winch compact. (L= left, R= right). When using heat cutter, avoid to create flat end.
- Page 9 SETs (incl. compatible male part) • • F1520-L00002(BLK) F1540-L00002(BLK) • • F1520-R00002(BLK) F1540-R00002(BLK) • reduced hight and smaller diameter for low profile application • available in left and right turning direction page 9 v01 / © FIDLOCK 2023...
- Page 10 ASSEMBLY GUIDE WINCH compact Overview cover Winch compact • for lace diameter max 1.5mm • delivered unassembled • laces, eyelets or laceguides not included • magnet inside handle • do not heat above 80°C page 10 v01 / © FIDLOCK 2023...
- Page 11 Make sure cover and handle are the same turning direc- Prepare the rope so it has no open end. Use one of the three ways to lace winch compact. tion (L= left, R= right). Left cover does not fit right handle When using heat cutter, avoid to create flat end.
- Page 12 If this is not to verify that the knot is big enough and the systems the case please check if the knots are too lage. strength fits your requirements. page 12 v01 / © FIDLOCK 2023...
- Page 13 SETs (incl. compatible female part) • • • F1500-L00012(BLK) F1510-L00002(BLK) F1520-L00002(BLK) • • • F1500-R00012(BLK) F1510-R00002(BLK) F1520-R00002(BLK) • standard stitchable base part • available in left and right turning direction page 13 v01 / © FIDLOCK 2023...
- Page 14 ASSEMBLY GUIDE WINCH base Overview WINCH base • standard stitchable base part • available in left and right turning base direction • magnet inside • do not heat above 80°C page 14 v01 / © FIDLOCK 2023...
- Page 15 Stitch around the ring. We recomend to use leather needles and synthetic thread. Area around base part should not be higher than the ring . If it is hard to stitch soak base in water for a couple of hours before stitching. page 15 v01 / © FIDLOCK 2023...
- Page 16 F1560-R00012(BLK) F1510-R00002(BLK) F1540-R00002(BLK) • allows to assemble the magnetic part at the very end of the pro- duction process • delivery as two seperate parts • assembly requires TOOL30 of our TOOLS catalogue page 16 v01 / © FIDLOCK 2023...
- Page 17 • available for left and right turning • use 10mm hexnut and driver or direction ratchet to operate the tool • TOOL30 is not included, please order • please only assemble once! seperately • dissasembly might damage the parts page 17 v01 / © FIDLOCK 2023...
- Page 18 Finish any work on your product that might damage the magnet or is easier to do without a magnet on it, e.g. heat treatment, sewing etc. If it is hard to stitch soak base in water for a couple of hours before stitching. page 18 v01 / © FIDLOCK 2023...
- Page 19 „click“ Use the TOOL30 with a 10mm hexnut and driver/ ratchet for easy assembly. Check the connection and function. Turn cw for right turning core and ccw for left turning core. page 19 v01 / © FIDLOCK 2023...
