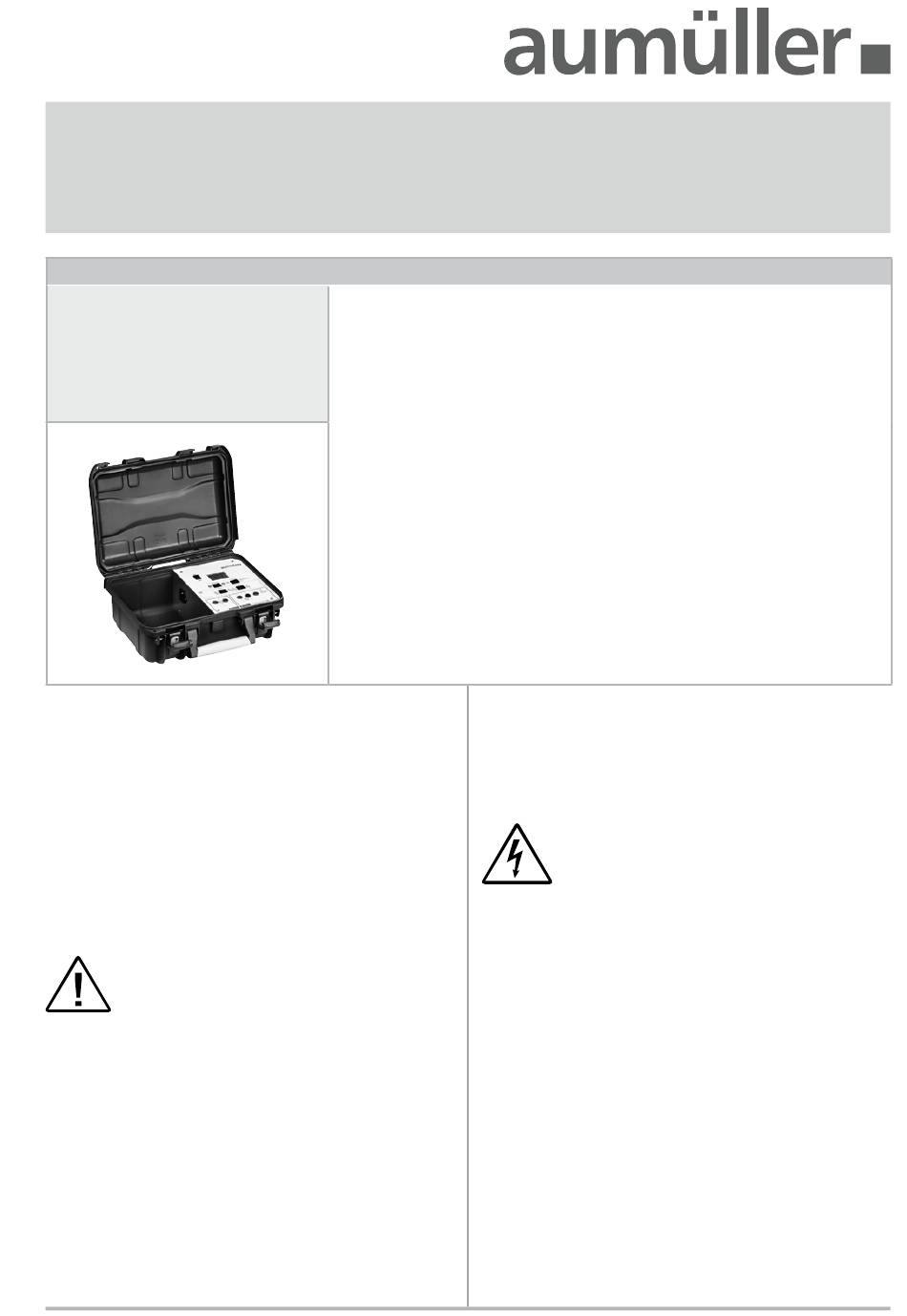

Aumüller 533984 Operating Manual

Test kit for window drives
Part.-No: 533984
Application:
Test kit to test the running behavior and to
support the commissioning of 24 V DC or
230 V AC window drives.
Target group
These instructions are intended for qualified personnel with know-
ledge and skills in electrical and mechanical drive installation.
Intended use
The Test-kit is intended for the trial operation of window drives that
fulfil the technical connection conditions to the Test-kit, as well as for
the trial operation of power-operated windows that are equipped with
such drives.
Safety instructions
When using the Test kit, observe the connection con-
ditions as well as the safety instructions for avoiding
personal injury and property damage, which are given
in the installation instructions for the window drives to
be tested, and in particular the hazards that can arise
from a power-operated window.
Ambient conditions
Only use the Test kit in dry rooms and protect it permanently from
dirt and moisture. Heavy shocks, falls and vibrations can damage
the device and must be avoided. Observe the specified operating
temperature range during use.
Operating Manual
Supply voltage: 230 V AC
Drive voltage: 24 V DC / 230 V AC
Drive current: max 5.0 A
Fine fuse: 5.0 A
Power consumption: 1 W / 12 W (battery level is maintained / charged)
Ambient temperature: - 15 °C ... + 40 °C
Protection rating: IP20 / IP65 (case open / closed)
Electrical protection: protection class 1, ES1 according to EN IEC 62368-1
Housing: plastic (PP)
Dimensions (WxHxD): 400 x 300 x 168 mm
Weight: approx. 5,3 kg
Controls: 3x switches
2x buttons
Display: TFT display, colored
Scope of delivery: 1x Test kit
1x mains plug
4x safety banana plugs
1x operating manual (German, English)
Operation
Insert the mains plug of the Test kit only into suitable sockets. Only
use the safety banana plugs supplied with the device to connect the
drives.
Test unassembled drives on a non-slip and secure surface or test
fixture. Before test operation, take the appropriate safety precautions
for the respective drives so that control of the movement of the drives
is ensured at all times and the potential for injury is excluded.
Do not reach into the test element during test operation - risk of in-
jury! For drives without an integrated switch-off device, switch off the
supply voltage manually via the device in good time to avoid dama-
ging it!
Maintenance
The Test kit is maintenance-free. Do not open the electronics of the
device. The replacement of used or defective batteries as well as
other components (exception: mains plug socket fuse) may only be
carried out by the manufacturer. Interventions by others will void the
manufacturer's liability and the warranty. Have the device checked
for operational safety in accordance with the relevant regulations of
the professional associations.
Test kit
Be sure to properly connect the drive cables to the saf-
ety banana plugs. Never connect 24 V DC drives to the
230 V AC jacks. Always connect PE grounding wires
- otherwise there is a risk of danger to life due to short
circuit or electric shock!
