- Page 1 Owners Manual RMI-400W-1U 400W Rackmount -48VDC to 120VAC Inverter M-RMI-400W-1U 051123 © Newmar Power Supplies. The information contained herein is subject to change without notice. Newmar shall not be liable for technical or editorial errors or omissions contained herein. All rights reserved.
- Page 2 Installation ..................................... 4 Conductor Pre-treatment ................................5 RECOMMENDED COPPER WIRE SIZE FOR CURRENT CAPACITY ....................5 Front Panel Layout ..................................4 Rear Panel Wiring ..................................4 LIMITED WARRANTY ..................................6 Contact Us ...................................... 7 Phone Email Website 1.800.467.6741 sales@duracomm.com www.duracomm.com...
- Page 3 Standard 19″ 1U Rackmount • Built-in protection Input – reverse polarity/DC low alarm/DC low shutdown/over voltage Output – short circuit/overload/over temperature Specifications Model RMI-400W-1U Electrical Output Voltage 120 VAC Output Frequency 50/60 ±0.1 Hz Maximum Power 400 W Waveform True sine wave (THD <3%)
- Page 4 NOTE: The individual user should take care to determine prior to use or installation whether this device is suitable, adequate, and safe for the use intended. Since individual applications are subject to numerous variations, DuraComm makes no representation or warranty as to the merchantability, suitability, or fitness of these units for any specific application.

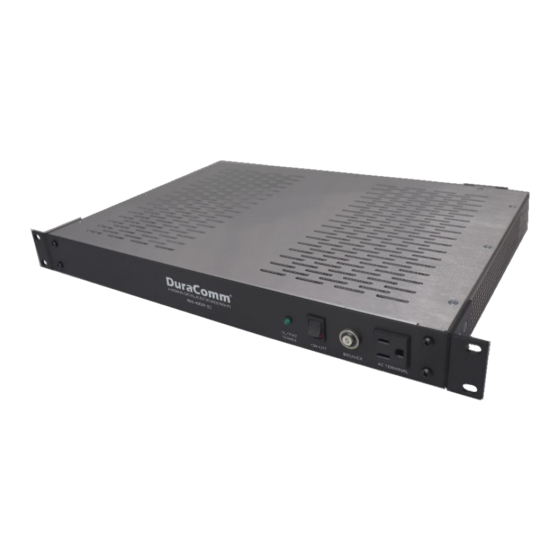

- Page 5 DO NOT block any of the cooling vents on the sides and/or cooling fan. Always allow adequate ventilation by not installing the unit inside tightly closed spaces. Power Power Switch Front Panel Layout AC Terminal Indicator Breaker DC Input Terminal Rear Panel Wiring AC Terminal x3 Phone Email Website 1.800.467.6741 sales@duracomm.com www.duracomm.com...
- Page 6 8 AWG Up to 10 feet 8 AWG Up to 5 feet 70 AMPERES 6 AWG Up to 10 feet 6 AWG Up to 5 feet 100 AMPERES 4 AWG Up to 10 feet Phone Email Website 1.800.467.6741 sales@duracomm.com www.duracomm.com...
- Page 7 DuraComm reserves the right to change, alter, or improve the specifications of its products at any time, and by so doing, incurs no obligation to install or retrofit any such changes or improvements in or on products manufactured prior to inclusion of such changes.
- Page 8 Owners Manual Contact Us Location Phone Email 6655 Troost Avenue 816.472.5544 816.472.0959 Email purchase orders to Kansas City, MO. 64131 1.800.467.6741 order@duracomm.com Phone Email Website 1.800.467.6741 sales@duracomm.com www.duracomm.com...
