Portable Outlet PO-SPC60 Manual

Solar Panel Charger
18V-60W, Solar Module
Manufactured for:
PO-SPC60
Manual
Read this entire manual before using the Solar
Panel Charger and save it for future reference.
This compact and highly portable solar charging system
is a great way to recharge the Portable Outlet Pure Sine
Wave and 160UPS batteries with sunlight. On sunny, dry
days, simply unfold the Solar Panel, place it on a flat
surface in direct sunlight. Then plug one end of the cord
into the connection box in the pouch and the other end
into the DC Input port of your Portable Outlet battery.
1

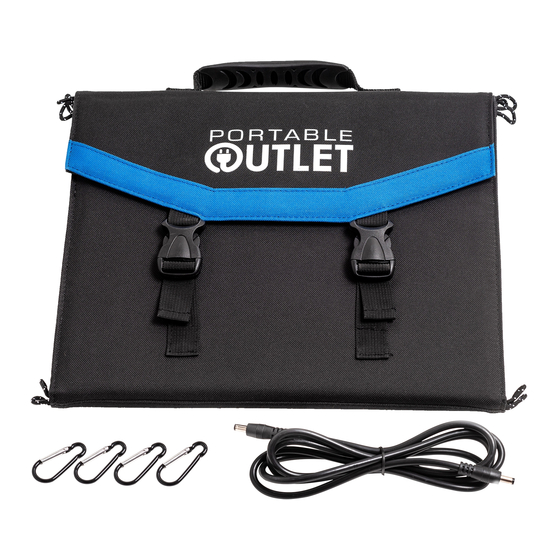

System Includes
1 - Foldable, 4 Panel, 18 Volt , 60 Watt Solar Charger
1 - Charging Cord
4 - Carabiner, Aluminum D-Ring Clips
2
WARNINGS! READ THIS ENTIRE MANUAL BEFORE
ATTEMPTING TO USE SOLAR CHARGER.
Never plug exposed or open wires into
ports of the Solar Charger Connection Box.
■ Keep Dry - Do not expose to water, snow or spray.
■ Temperatures - Operate between 32°F (0°C)
and 104°F (40°C).
3
Using the Solar Panel Charger
Open the pouch and remove the Charging Cord.
■
■ Unclip the straps on the front of the Solar Panel
Charger. Unfold the Panels and place them on a dry
flat surface. For optimal charging, place the panels
in direct sunlight.
■
Inside the pouch, you can plug the Charging Cord
into the center port on the Connection Box.
■
You can plug a Type-C USB charging cord and/or
a Type-A USB cord into the Connection Box.
The RED LED on the left side
lights up when the solar panels
are providing power.
If you are powering multiple
devices at the same time, the
devices will charge slower than only charging one
device at a time. You can also recharge the Portable
Outlet Pure Sine Wave and 160UPS batteries while
charging with the Type-C and Type-A USB ports.
