Draper IntelliFlex C156.282 Instructions

IntelliFle

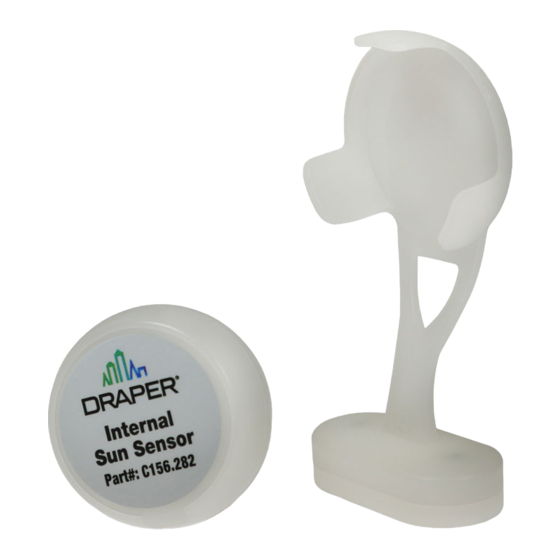

Internal Sun Sensor

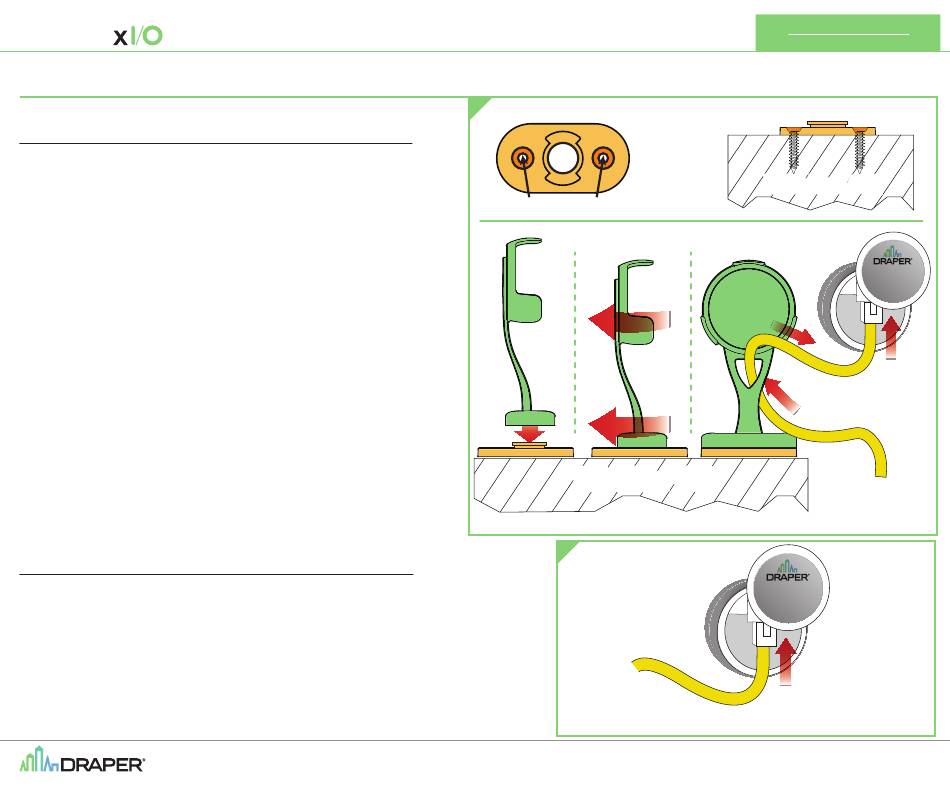

Section 1 - Mounting the Internal Sun Sensor

Section 1.1 – Mounting with Sensor Stand
1. Determine mounting location of Internal Sun Sensor.
2. Remove base from the bottom of the sensor stand
by rotating the base 90° (see Fig. 1A). Secure the base
to the window sill using the provided hardware.
3. Line up mounting hole on the bottom of the sensor
stand with central mounting peg on the base.
4. Once sensor stand is over the mounting peg, rotate
stand 90°. Sensor stand is now sucure.
5. Thread the data cable (Cat5 or better) through the back
of the stand (see Fig.1B).
6. Remove the back cover from the Internal Sun Sensor
and connect the data cable. Replace the back cover
and attach the Internal Sun Sensor to the stand.
Section 1.2 – Mounting with Self Adhesive
1. Secure the Internal Sun Sensor directly to the window glass
with the provided clear circular double-sided adhesive (see Fig. 2).
2. Remove the back cover from the Internal Sun Sensor
and connect the data cable. Replace the back cover.
- Part # C156.282
TOP VIEW
Mounting Holes
Figure 1-A
Figure 1-B
90°
Window Sill
Data Cable
to Sensor
Interface
© 2019 All Rights Reserved
INSTRUCTIONS
INSTALLATION & PROGRAMMING
FRONT VIEW
Window Sill
Remove
Back Cover
Internal
Sun Sensor
Part#: C156.282
Connect
Data Cable
(Cat5 or better)
to
Sensor/Schedule
Interface
Figure 2
Internal
Remove
Sun Sensor
Part#: C156.282
Back Cover
Connect
Data Cable
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: IO_InternalSunSensor_Inst19
