Summary of Contents for Tenways YT18SF-2H-S
- Page 1 Power Bank Manual energized urban ride...
- Page 2 Find your language. Multi-language Find your language by scanning the QR code Important Notes: The battery volume shown on the e-bike's display is ONLY the estimated value based on the battery's voltage and the motor's current output power. The battery volume shown on the e-bike's display may experience slight fluctuations when riding your e-bike with the power bank connected.
-
Page 3: Product Overview

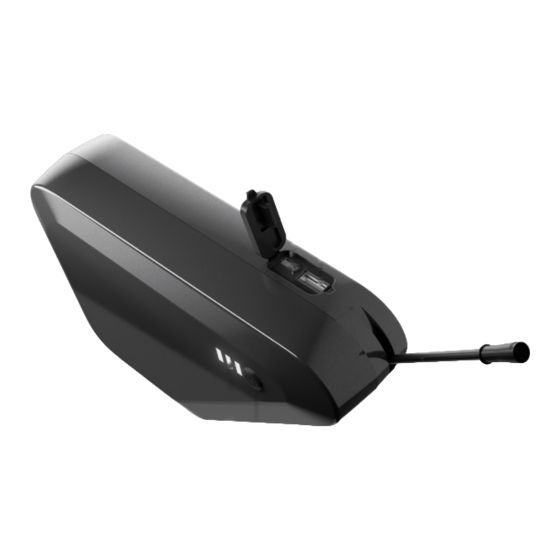

Product overview USB Type-C port USB output port Six-core port Power button Power indicator Parts list: Power bank ×1 Six-core to DC adapter (coiled wire) x 1 User manual x 1 Six-core to DC adapter (straight wire) x 1 Waterproof bag x 1 USB-A to Type-C adapter x 1... - Page 4 Operating instructions Power on Press the power button once. The power indicator will light up, and the power bank will enter the power-on state. Power off When the power bank is on, press the power button for 3 seconds to power off the power bank.
-
Page 5: Charge The Power Bank
Charge the power bank Use a USB-A to Type-C Cable to charge the power bank. Before charging, turn on the product. Connect the USB-A to Type –C cable that comes with the product to the USB Type-C port to charge the product. The product supports PD 40W, 5V/2.1A, and 21V/3A fast chargers, which need to be purchased separately. - Page 6 Charge a digital device Please select the appropriate power cable port (USB Type-C port or USB output port) to charge your device using the product. After you press the power button on the power bank, the battery indicator will stay on. When the battery indicator flashes, it indicates that your device is being charged.
-
Page 7: State Of Charge
6. With high-quality Li-ion cells, this power bank is safe to use in accordance with all safety instructions. Specifications Model Power Bank YT18SF-2H-S Capacity 180 Wh 6-core output port Output DC 42 V 1.5 A USB port Output DC 5 V 2.1 A... - Page 8 Waterproof bag Discharge port Charging cable & USB cable Velcro strap Velcro straps Zipper The power bank can be installed and connected to an e-bike through a waterproof bag.
- Page 9 Installation on a TENWAYS e-bike 1. Installation on CGO600 e-bike: 1. Remove the water bottle screws circled in red in the figure (the water bottle holder or air pump (if any) should be removed), ensuring adequate space for the installation;...
- Page 10 2. Installation on CGO800S e-bike: 1. Fix the power bank to the lower part of the front triangle of the frame with the Velcro straps as shown in the figure. Connect the power bank to the discharge port of the bike battery using a suitable discharging cable. 2.
- Page 11 Notes: 1. The above power bank installation diagram shows just one of the installation methods. 2. The power bank can be fixed on the e-bike by forming a triangular position using three Velcro straps. The length of the discharging cable should ensure easy connection to the charging port of the bike battery without hindering riding.
- Page 12 www.tenways.com...
