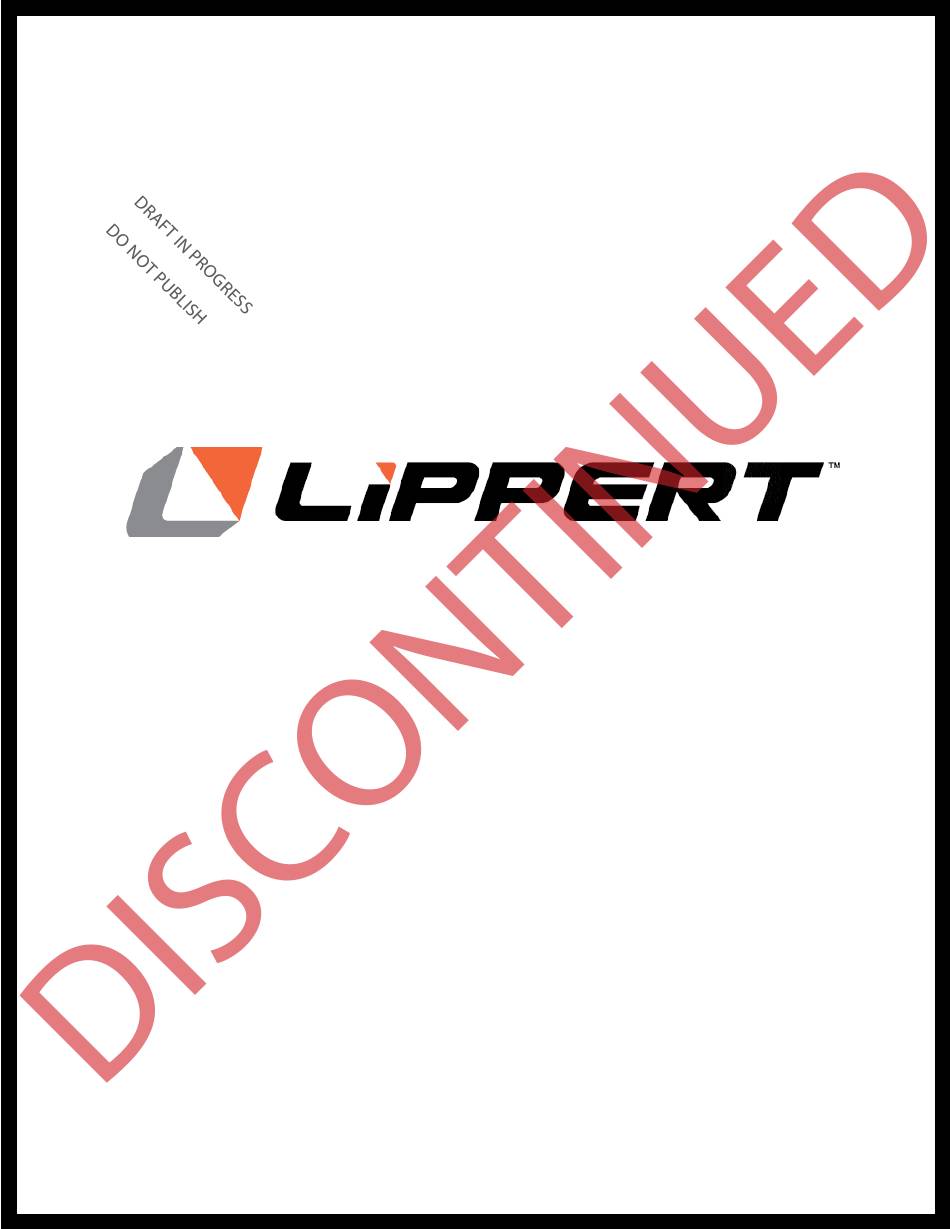

- Page 1 ConnectAnywhere ® All-In-One (AIO) System OEM INSTALLATION MANUAL...
-
Page 2: Table Of Contents
An end customer controls and monitors devices with the OneControl or OneControl family Mobile App, available in both App Stores. Data plans are offered by Lippert through a secure nationwide LTE network. The AIO Antenna supports local radio and TV broadcast signals throughout the RV. This allows OEMs to install one device to satisfy multiple end customer needs. -
Page 3: Additional Information
Failure to correctly follow the provided instructions may result in death, serious personal injury, severe product and/or property damage, including voiding of the Lippert limited warranty. The "WARNING" symbol above is a sign that a procedure has a safety risk involved and may cause death or serious personal injury if not performed safely and within the parameters set forth in this manual. -
Page 4: Resources Required
Resources Required • 1-2 people, depending on the task • Straight edge • Cordless or electric drill or screw gun • Non-permanent marking method • Appropriate drill bits (specifically 1/4") • (18) #8 ¾” stainless steel Phillips pan-head screws • Appropriate drive bits •... -
Page 5: Preparation
Preparation Prior to Installation Make sure the mounting surfaces are flat and clean and free of debris and damage. Make sure that there are no wires, pipes, etc. behind the drilling area before installation. Selecting a Location For each floorplan, start by selecting a location for the Router, then the Antenna. Make sure the location meets the following criteria: •... -
Page 6: Installation
Installation Install Mounting Plate and Create Saw Hole Separate the mounting plate from the Router by pushing down on the button on the front of the Router (Fig. 3A), then sliding the mounting plate (Fig. 3B) forward until it pops off. Set the Router aside for later installation. - Page 7 Secure the Mounting Plate to the ceiling with 4 #8 screws (Fig. 5A). Fig. 5 Using a drill with a 2” hole saw (Fig, 6A), create a hole in the ceiling (Fig. 6B). NOTE: Do not let the hole saw go through the roof. Fig.
- Page 8 Antenna. The pilot hole will help ensure alignment between the Antenna and Router. Fig. 7 NOTE: To ensure repeatability across a given floorplan, Lippert recommends fabricating a template to locate the Router and Antenna. A pilot hole may not be necessary if using a template.
-
Page 9: Install Antenna
Install Antenna Move to the roof to install the Antenna. Locate the pilot hole. Place the Antenna directly over the pilot hole. With a non-permanent marking device, trace the outline of the Antenna. Set the Antenna aside. With a sharp cutting tool, cross-cut the rubber roof (Fig. 9A). The cuts should be 1¼”... - Page 10 Place the Antenna (Fig. 11A) inside the line traced earlier (Fig. 11B). Fig. 11 Using a screw gun, install the #8 screws (Fig. 12A) around the base of the Antenna (Fig. 12B). NOTE: Set the screw gun to a torque value of 9.5 lbs to avoid damage to the Antenna. Install them in a star pattern around the edge of the Antenna.
-
Page 11: Coax Cables Connection
10. Apply line of weatherproof silicon caulk (Fig. 13A) to seal the Antenna (Fig. 13B) to the roof. Fig. 13 COAX Cables Connection Move back into the unit to connect the COAX cables and install the Router. If the Antenna is to provide radio and local TV broadcasts, connect the COAX cables: •... -
Page 12: Install Router
Install Router With the mounting plate secured, plug cables into their appropriate ports (Fig. 14). Connect the CAN cable to the “OneControl” port. Connect the LTE cables to the Ant_1 and Ant_2 ports. These cables are interchangeable. Connect the power cable to the power port. Fig. - Page 13 Slide the Router (Fig. 16A) over the mounting plate (Fig. 16B). NOTE: Listen for a click when the router is securely in place. Fig. 16 NOTE: There is a release lever on the front of the Router if access to cables, etc. is necessary. Using the button on the side of the Router, turn the device ON (Fig.
-
Page 14: Connectanywhere™ 2.0 Aio System Specifications
NOTE: Leave the Router’s box (Fig. 18A) in the unit. The end user will need the label inside to activate their system (Fig. 18B). Fig. 18 ConnectAnywhere™ 2.0 AIO System Specifications Specification Detail Reception Type 4G LTE, WiFi IEEE 802.11 b/g/n 2.4GHz Wireless Standard IEEE 802.11a/n/ac 5GHz LTE Cat 4... -
Page 15: Fcc Statement
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 16: Notes
Notes Page 16 Rev: 04.12.23 CCD-0007350... - Page 17 Lippert representative has been provided. Any unauthorized use shall void any applicable warranty. The information contained in this manual is subject to change without notice and at the sole discretion of Lippert. Revised editions are available for free download from lippert.com.
