Installation and User Guide

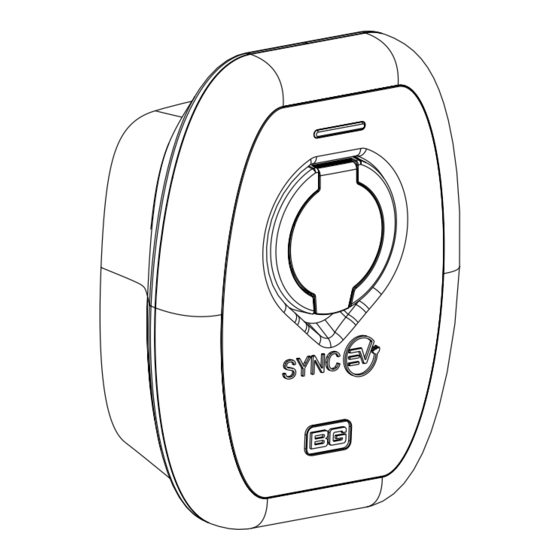

EV Charger
Type 2 socket, 7.4kW
EVS7GGR - COMMERCIAL / RFID
Tools needed:
Hex bit holder, PZ2 and flat blade screwdriver, suitable drill bit and fixings
BOX CONTENT
• EV charger
• Decorative trim
• Installation template
• Accessories pack containing:
» Power connector
» Cord grip and screws
» M25 gland
» 2x 25mm blanking plug
INTRODUCTION
This guide is intended for use by competent electrical installers to explain basic requirements and options to
be considered when installed a BG SyncEV Charger. The unit is designed for installations inside or outside,
the advanced safety technology we have built into the unit ensures its safe usage. This guide provides
information to assist when installing the EVS7GGR charger and should not be used with other EV chargers.
EV Charger | EVS7GGR.202303.GJW
» Fixing screw caps
» Assembly screws
» Anti-tamper bit
3
year
WARRANTY
www.syncev.co.uk |
1
Advertisement
Table of Contents
Summary of Contents for luceco BG SyncEV EVS7GGR
- Page 1 Installation and User Guide EV Charger year WARRANTY Type 2 socket, 7.4kW EVS7GGR - COMMERCIAL / RFID Tools needed: Hex bit holder, PZ2 and flat blade screwdriver, suitable drill bit and fixings BOX CONTENT • EV charger • Decorative trim • Installation template • Accessories pack containing: »...
-
Page 2: Installation Requirements
Installation requirements SAFETY INFORMATION The EV charger may be connected directly to a TN-C-S (PME) earthing system without any special arrangements. It remains the Warning: The supplied BG SyncEV charger is manufactured to be safe responsibility of the installer to conduct a risk assessment of the without risk provide they are installed correctly, used, and maintained immediate area to a range of 10 meters (equipotential zone) to in accordance with the manufacturers recommendations and installed... -
Page 3: Load Balancing
Installation requirements INSTALLATION • A test to confirm the polarity of the installation is correct. Where applicable a test to confirm the earth electrode resistance is within The EV charger is suitable for installation inside and outside on a solid acceptable tolerances. -
Page 4: Electrical Installation
Electrical Installation 110mm Cable entry Use included hole template to drill fixing holes L E N Ensure the supplied caps are fitted over installation Ensure correct polarity when making screws to maintain IP rating incoming power connections Ensure supplied cord grip is fitted on incoming power Ensure 3-pole power connector is fully inserted, cable if using bottom cable entry location then clip power connector into the base... - Page 5 Electrical Installation T25S Security Torx 2.5 N m For dynamic load balancing, ensure connections are made We recommend completing electrical installation testing and in correct polarity to CT + and CT - terminals network set up at this stage Snap front cover trim into place To remove trim, pry at shown points with a flat tool Commercial Partner account The charger can be upgraded to suit a commercial application with multiple chargers and users sharing a fleet management account.
-
Page 6: Network Setup
Network Setup INSTALLER APP Download the ‘BG EV Charging’ app here: Apple Version Google / Android Version. Also available from the Installer Portal on the syncev.co.uk website, or using the QR codes opposite. Upon powering the charger, the status indicator light will show Yellow. This indicates that the charger is ready for network setup but is not yet connected to the internet. - Page 7 SYNC EV APP You will now need to inform your customer to download the SYNC EV Application play.google.com/store/apps/details?id=syncev.co.uk&hl=en_GB&gl=GB apps.apple.com/gb/app/sync-ev/id1528884639 Once downloaded, please register an Once scanned, enter the PIN code to confirm account, the chargers QR code ID and set up. Pin code can be found on the charge point identification label on the EV Problem connecting to the app? Contact us at charger and enclosed on the cover of support@syncev.co.uk...
-
Page 8: Environmental Protection
If you have any further technical assistance you can get in touch with our Support Team: support@syncev.co.uk BG SyncEV is a trading name of Luceco PLC. Luceco PLC – Stafford Park 1, Telford, TF3 3BD, England | (EU) Luceco SE – C/ Bobinadora 1-5, 08302 Mataro, Spain EV Charger | EVS7GGR.202303.GJW www.syncev.co.uk |...
