Summary of Contents for FAMOCO PX320
-

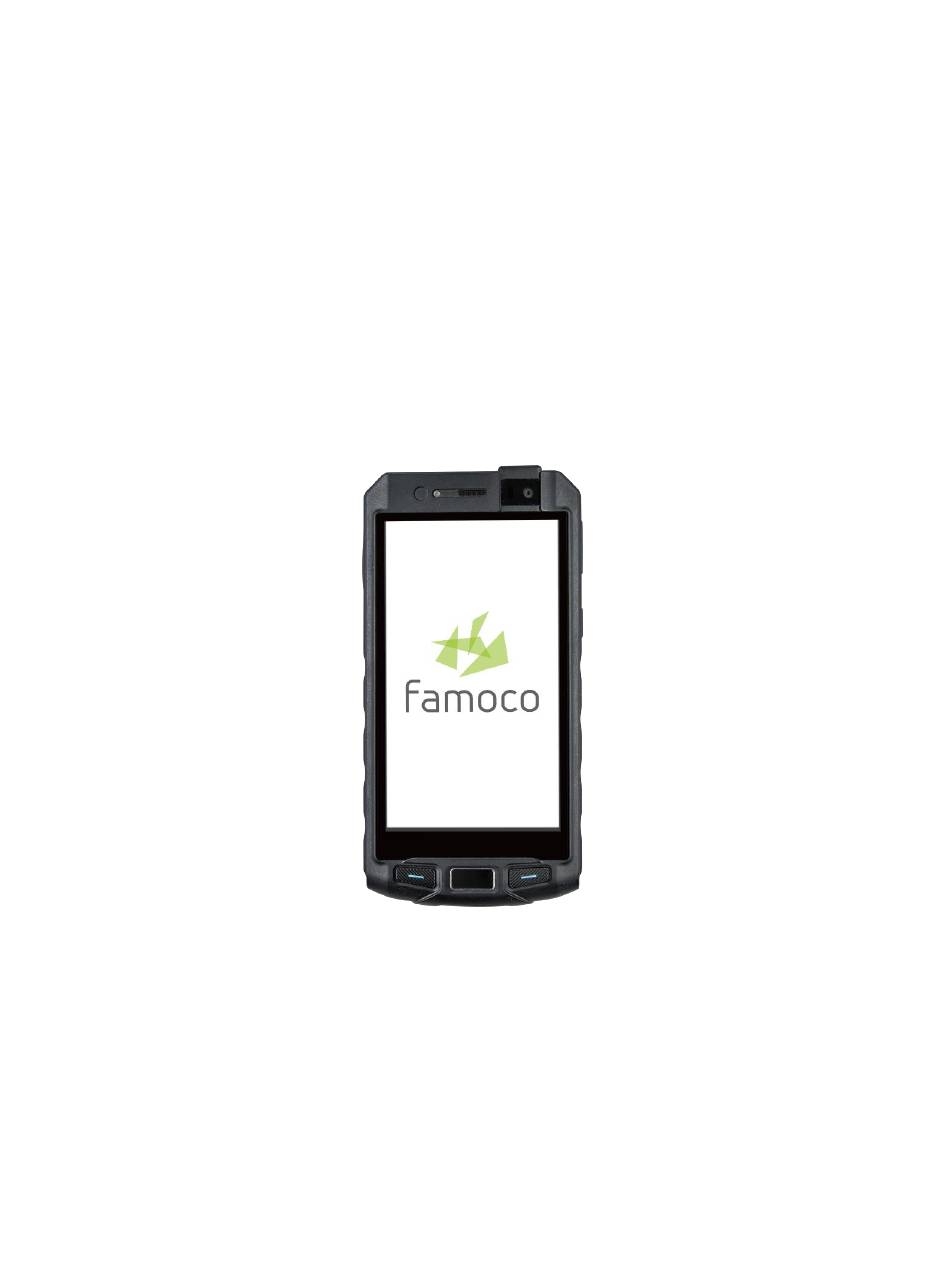

Page 1: User Manual
User Manual PX320 Professional Android Device... -
Page 2: Table Of Contents
Table of contents User Manual ..........................1 1. Copyright ..........................3 2. Trademarks ......................... 3 3. Warnings and safety notices ................... 4 4. Limitation of liability ......................4 5. About this manual ......................5 6. Device layout ........................6 6.1 Front view ..........................6 6.2 Back view .......................... -
Page 3: Copyright
Famoco. We reserve the right to make modifications on print errors or update specifications without prior notice. -
Page 4: Warnings And Safety Notices
4. Limitation of liability Famoco shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising out of or in connection with using this product, whether Famoco had been advised, knew or should have known the possibility of such damages. -
Page 5: About This Manual
5. About this manual Congratulations on becoming the owner of a Famoco PX320 device. This user manual is specially designed to detail the device’s functions and features. Please read this manual before using the device to ensure safe and correct use. -
Page 6: Device Layout
6. Device layout 6.1 Front view SOS button Volume UP/DOWN buttons SIM/SD Card tray Power ON/OFF button Laser scanner button Customizable buttons Fingerprint sensor... -
Page 7: Back View
6.2 Back view Flash Main camera USB & Jack connector... -
Page 8: Scanner View
6.3 Scanner view SOS button Laser scanner... -
Page 9: Package Contents
7. Package contents Check the product box for the following items: 1 Device 1 Battery 1 USB Wall Charger 1 USB cable 1 Docking station 1 User manual 1 Screwdriver Note: The items supplied with the device and any available accessories may vary depending on the region or service provider. -
Page 10: Getting Started
8. Getting started 8.1 How to switch the device ON or OFF To power ON: Power ON button Press and hold the power button for three seconds then release. The home screen will be displayed after a few moments. To power OFF: Press and hold the power button for three seconds, then select the shutdown option on screen. -
Page 11: Home Screen And Synchronization
Standby mode: The device enters the standby mode after 30 seconds if left alone. Press power button once to switch back on. 8.2 Home screen and synchronization Once your device is switched on it will start synchronizing. If there are no applications installed on it yet, the device will be locked on a screen that shows the following indication to configure the internet connection: To set up your device you need connectivity so that it can synchronize. - Page 12 If there is connection, one of the following screens will appear (depending on the synchronization status): If the synchronization is in progress, please wait until it is complete. If the synchronization is complete but no applications have been installed, or if the synchronization has been aborted, please contact your customer support.
-
Page 13: Led Colors
8.3 LED colors The LED on the device is the battery indicator and can show when the battery is charging, or when the device has not more battery, like below:... -
Page 14: How To Access The Dashboard
When your device is switched on you can access the dashboard by pressing the volume up button for three seconds. In the dashboard you will find: o Time o Famoco serial number o Connectivity o Battery level o Brightness (that you can modify) -
Page 15: How To Find Your Device's Serial Number
8.5 How to find your device’s serial number There are two ways of finding the serial number: o Press repeatedly the soft back button to access the dashboard. The serial number is written at the top of the screen. o Open your device and remove the battery (see 8.7 for more information). -
Page 16: How To Change The Battery
8.7 How to change the battery Unscrew the 2 screws at the back of the device as indicated in the picture below and remove the back cover. Screw Screw... -
Page 17: How To Use The Battery
Remove the battery. Insert the new battery with the pins located against the gold springs (with label up). Press the battery down into the case. To replace the back cover, reverse step 1 and push gently to close. 8.8 How to use the battery Charge the battery promptly when discharge. -
Page 18: About The Sim Slots
NFC antenna 8.10 About the SIM slots The device supports 2 SIM in dual SIM configuration, or 1 SIM and 1 microSD card. Do not attempt to remove any of the installed cards. In case of any operational problem, contact your administrator. -
Page 19: Technical Specifications
9. Technical specifications Type Quad-core Processor Speed 1.5 GHz processor Android 7 2 GB Memory Mass Storage 16 GB Characteristics 5.0’’ HD (1280x720 pixels), IPS Display Touch Panel 5 touch points Barcode 2D barcode Zebra SE4710 Scanner scanner Type of tags Mifare, Desfire supported 2G/GPRS/ED... -
Page 20: Warranty Information
10. Warranty information The warranty does not apply to defects or errors in the product caused Normal wear and tear, misuse, mishandling, and physical damage. Exposure to water or any other liquids or solvents. Any unauthorized disassembly, repair or modification. Power surges, lightning, fire, flood or other natural events. -
Page 21: Safety And General Information
11. Safety and general information The device contains delicate electronic circuitry, magnets and battery systems. You should treat it with care and pay attention to the following points: - Handle the device with care. Do not drop or throw the device. Do not immerse it in any liquid. - Page 22 - When the battery is thrown away cover the terminals with insulating tape. - Be careful not to pierce the battery with sharp objects and do not use damaged batteries. - Do not disassemble or modify the battery. - Stop using the battery if abnormal heat, smell, discoloration, deformation, or abnormal condition is detected during use, charge, or storage.
- Page 23 - Sitting down or sharp objects may damage the device. - At high volume, prolonged listening to audio devices can cause hearing loss. - Do not leave the device discharged or disconnected for long periods of time; your personal data may be lost, and your battery life will be reduced.
- Page 24 December 2018...
