Page 1 STALLION Electric MTB USER MANUAL v1.0...
Page 2 STALLION USER MANUAL Please keep the User Manual properly and carefully read it to understand the performance of the E-bike before use.
Page 3: Table Of Contents
TABLE OF CONTENTS INSTRUCTIONS FOR USERS................................2 SPECIAL NOTES FOR RIDING SAFELY............................3 PRECAUTIONS BEFORE RIDING..............................4 ABOUT E-BIKES....................................5 HOW TO OPERATE E-BIKES................................6 DISPLAY GUIDE..................................7-13 TROUBLESHOOTING................................14-15 F.A.Q’S.......................................16-19 WARRANTY....................................20 TECHNICAL SUPPORT CONTACT INFORMATION........................21 DAXYS STALLION - USER MANUAL...
Page 4: Instructions For Users
INSTRUCTIONS FOR USERS Dear Users, Thank you for choosing our products. The User Manual mainly introduces the common sense of use and maintenance of our E-bike. Please carefully read the Manual after purchase to understand the performance, characteristics, precautions and maintenance of the E-bike.
Page 5: Special Notes For Riding Safely
SPECIAL NOTES FOR RIDING SAFETY For sake of your safety and prevention of accidents, please read and observe the following precautions: First: When using electric bicycles, you should abide by traffic laws and pay attention to riding safety. 1. Always wear a helmet when riding. 2.
Page 6: Precautions Before Riding
PRECAUTIONS BEFORE RIDING For sake of your safety and prevention of accidents, please check the followings before riding and repair in time or seek for professional maintenance in case of any abnormality. 1. Inspection of power circuit and lighting circuit •...
Page 7: About E-Bikes

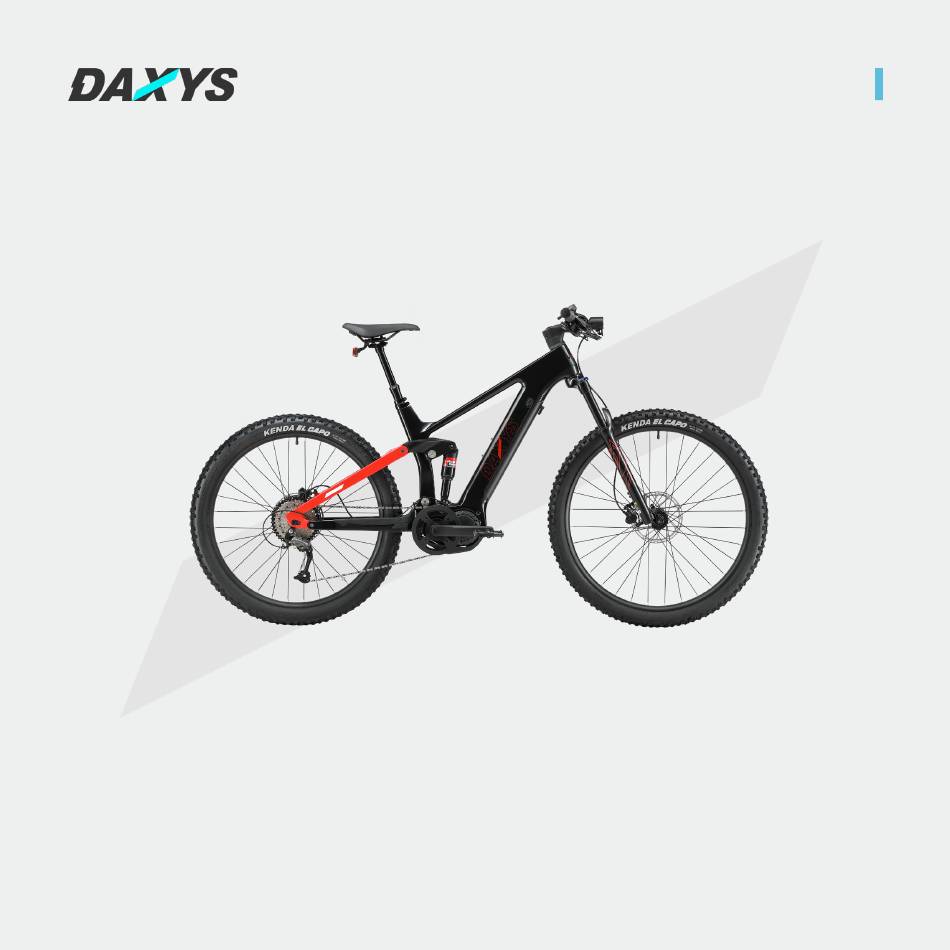

ABOUT E-bike * Please note that this is a general instruction manual. Therefore, the frame style of the e-bike you have may differ from the picture shown in this manual.
Page 8: How To Operate E-Bikes
Start E-bike 1 Press and hold the power button on the instrument until the display screen is turned on to start the bicycle. * For night riding, press and hold the "+" button on the instrument to turn on the front light. 2 The instrument displays the speed, total ODO, TRIP distance, power-assisted gear, SOC and other data.
Page 9: Display Guide
B-COCKPiT L200 User Manual DISPLAY GUIDE Important Information Regarding Safe Operations: 1. Turn OFF the main power of the E-bike before plug / unplug the display, or it may lead to permanent electrical damage to the display. 2. Do not over tighten the bolts when installing display to E-bike, a torque of 5-6kgf.cm is sufficient to secure display to the handlebar, over tightening the bolts may cause damage to the display’s structure.
Page 10 B-COCKPiT L200 User Manual ◼ Installation ⚫ Installing display unit 1. Use 1pcs M3*6 Hex Socket Screws 1 1 - - 1 1 to secure the mounting 22.2mm bracket to the handle bar. Tightening torque: 5-6kgf.cm, Do Not Over tighten or it may cause damage to the display. ⚫...
Page 11 B-COCKPiT L200 User Manual ◼ System Operation ⚫ Initial Operation Entering cycling interface when boots up 1. Long press “Power” to light up interface, and enter cycling interface. ⚫ Button Features 1. “+” key button: Short press Long press Long press & Hold E-bike Lights switch...
Page 12 B-COCKPiT L200 User Manual ⚫ Display interface Multi-function area Trip function: to display Trip range, the range is 0-9999.9 ODO function: to display mileage, the range is 0-99999. AVG function: to display average speed, the range is 0-99.9 MAX function: to display max speed, the range is 0-99.9 TIME function: to display cycling time, the range is 00:00 ~ 99:59 kcal function: to display calories (in kcal), the range is 0-99999.
Page 13 B-COCKPiT L200 User Manual POW function: to display current power (in W), the range is 0-999. ⚫ Menu Interface In the display interface, long press “+” and “-“ buttons to enter menu interface. To ensure user safety, the menu interface can only be entered when the E-bike is stationary (speed is 0).
Page 14 B-COCKPiT L200 User Manual Setting auto power off time When selecting “OFF” menu item, press “Power” to enter and “+” “-“ buttons to confirm the time, the range is 0-99 min, which 0 means cancel the automatic power off; press the “Power” button again to confirm and exit.
Page 15 B-COCKPiT L200 User Manual ⚫ Error interface When there is an error, the error indicator will keep on and real-time speed area will be displayed as error code. The error code varies with the controller and protocol used by the customer. For specific error information, please refer to the corresponding controller protocol.
Page 16: Troubleshooting
TROUBLESHOOTING Since malfunction may be caused by one or more faults, find out the real cause and then take corresponding solutions for troubleshooting. In you have any question, please consult professional technicians. Type Fault phenomenon Analysis and solution 1. Charger failure: If the green indicator is on when the charger is connected to the battery for charging, use a multimeter to measure whether the voltage at the output port of the battery is 42V (when the green indicator is on after the charger is connected to the power...
Page 17 Type Fault phenomenon Analysis and solution 1. The controller or motor Hall is burnt out due to current. 1. Fault occurs during riding, 2. Restart to check whether there is any error code abnormality resulting in sudden stop and reported by the instrument, and determine the fault cause according failure to restart to the abnormality.
Page 18: F.a.q's
F.A.Q’S 1. What is the difference between servicing an e-bike versus a regular bike? Since the standard components of an e-bike are just the same as a regular bike, taking care of and maintaining your bike is practically the same. It is possible to take an e-bike to a local repair shop as a regular bike. The cost of those repairs should be the same too.
Page 19 F.A.Q’S 9. Can electric bikes go up hills? Yes, much easier than a regular bike. You will need to consider the terrain you plain on traversing, the steepness of the hill, as well as your own fitness, This will inform you whether you need an ebike with more gear options or power. An ebike with less gears and less power will offer less assistance than an alternate ebike, but will still offer much more assistance than a regular bike.
Page 20 F.A.Q’S 16. Are electric bikes good for the environment? Electric Bikes generate no exhaust fumes since they are powered by an electric motor. This means you are generating zero air pollution in your city while in use. Also, recharging with energy is more carbon-neutral than petrol or diesel. To increase the benefit to the environment further, you should pursue a power provider with renewable energy.
Page 21 F.A.Q’S 20. What are the main reasons for buying an e-bike? you want to save money. you want to save time. you don’t like being stuck in traffic. you want to save energy. you want a very fun hobby. you need a convenient transport mode. you care about the environment.
Page 22: Warranty
used by nature or acts of God, for example, lightning strikes, tornadoes and the like; incorrect use of the product; use of the product; WARRANTY s to any part of the product; used by use with after-market products; DOA: Complete replacement used by negligence, accident, abuse, misuse, flood, fire, earthquake or other external causes;...
Page 23: Technical Support Contact Information
TECHNICAL SUPPORT Please contact your seller for details on authorised service centers. For further support email us at support@panmi.com.au...
