Upgrading everyday security EL4601 Quick Start Manual

2-Way Dual Magnetic Contact

Universal Transmitter
The EL-4601DZ is a 2-Way wireless device that can be defined as a magnetic contact, universal transmitter or both in
combination. The EL4601DZ is for use with the iConnect 2-Way security system (Ver. 501 and higher).

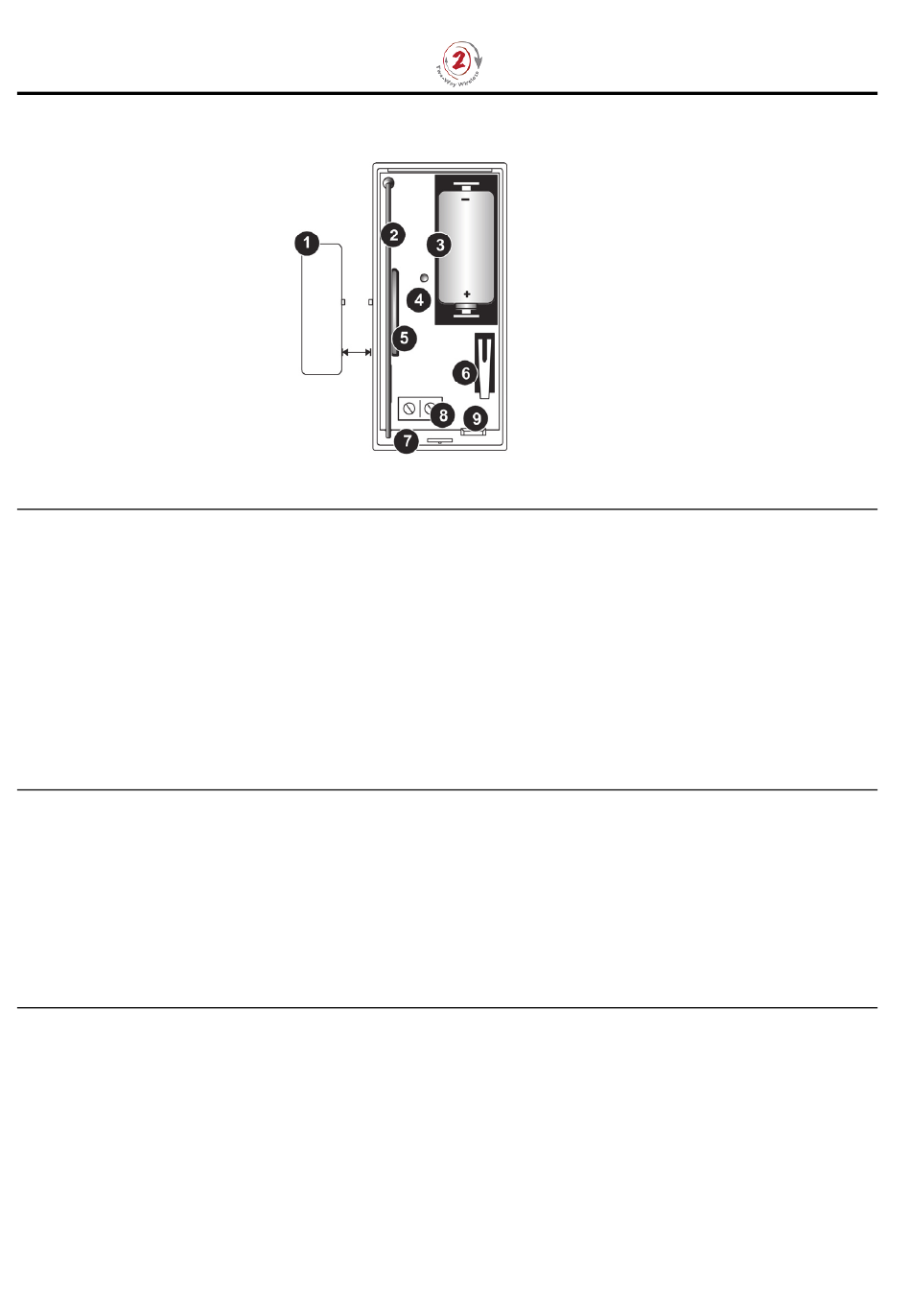

1.Magnet
2.Antenna
3.Battery Holder
4.LED Indicator
5.Reed Switch
6.Tamper Switch
7.Location of Wiring Knockout
8.Terminal Block
9.PCB Release Tab

Registration

The EL-4601DZ must identify itself to the iConnect 2-Way receiver as follows:
1. Set the system to registration mode.
a. Go to the main menu and select [9]>[1]>[1] (Programming > Devices > Zones).
b. Select a zone and press '√'.
2. Open the detector housing.
3. Remove the divider separating the battery from the contacts on the battery holder. The transmitter will send a
transmission. If the transmission is successfully received by the system it will play a confirmation sound. If no
confirmation sound is heard send another transmission by pressing and releasing the tamper switch of the device.
Note: Due to the occurrence of voltage delay in lithium batteries that have been in storage, the batteries
may initially appear to be dead. In this case, leave the unit in Test mode for a few minutes until the battery
voltage level is stabilized.
4. As soon as 'Save?' appears press '√'.

Parameter Settings by the iConnect

As a 2-Way detector, the EL-4601DZ parameters can be modified only from the iConnect 2 Way. The parameter
settings can be defined as follows:
1. Go to the main menu and select [9]>[1]>[1]>[11] (Programming > Devices > Zones>Sensor Par.).
2. Select Sensor Type (Magnetic, Universal or Magnetic + Universal).
3. Define Second Zone (1-32) for dual Magnetic + Universal configuration.
Note: By default the EL-4601DZ is registered as a Magnetic Contact. The Universal Transmitter can function
in the same zone or can be assigned to a separate zone. If assigned to a separate zone any receiver already
assigned to the selected zone will be deleted. For dual configuration each zone should be configured
exclusively.

Wall Mounting

After the transmitter has been registered mount the transmitter as follows:
Note: Before permanently mounting the unit, test the transmitter from the exact mounting position. If necessary,
improve the position of the transmitter.
Note: The alarm is generated by magnet removal at 24 (+/- 0.5) mm and is cleared by magnet approach at 22 (+/-
0.5) mm.
1. Open the transmitter housing.
2. Remove the PCB by pressing the PCB release tab.
Note: When handling the PCB, do not apply pressure on the antenna.
3. Mount the back cover using two screws and replace the PCB. Use ISO 7050 (ST3.5 x 22) or similar
countersunk screws so that the screw head will not touch the PCB.
