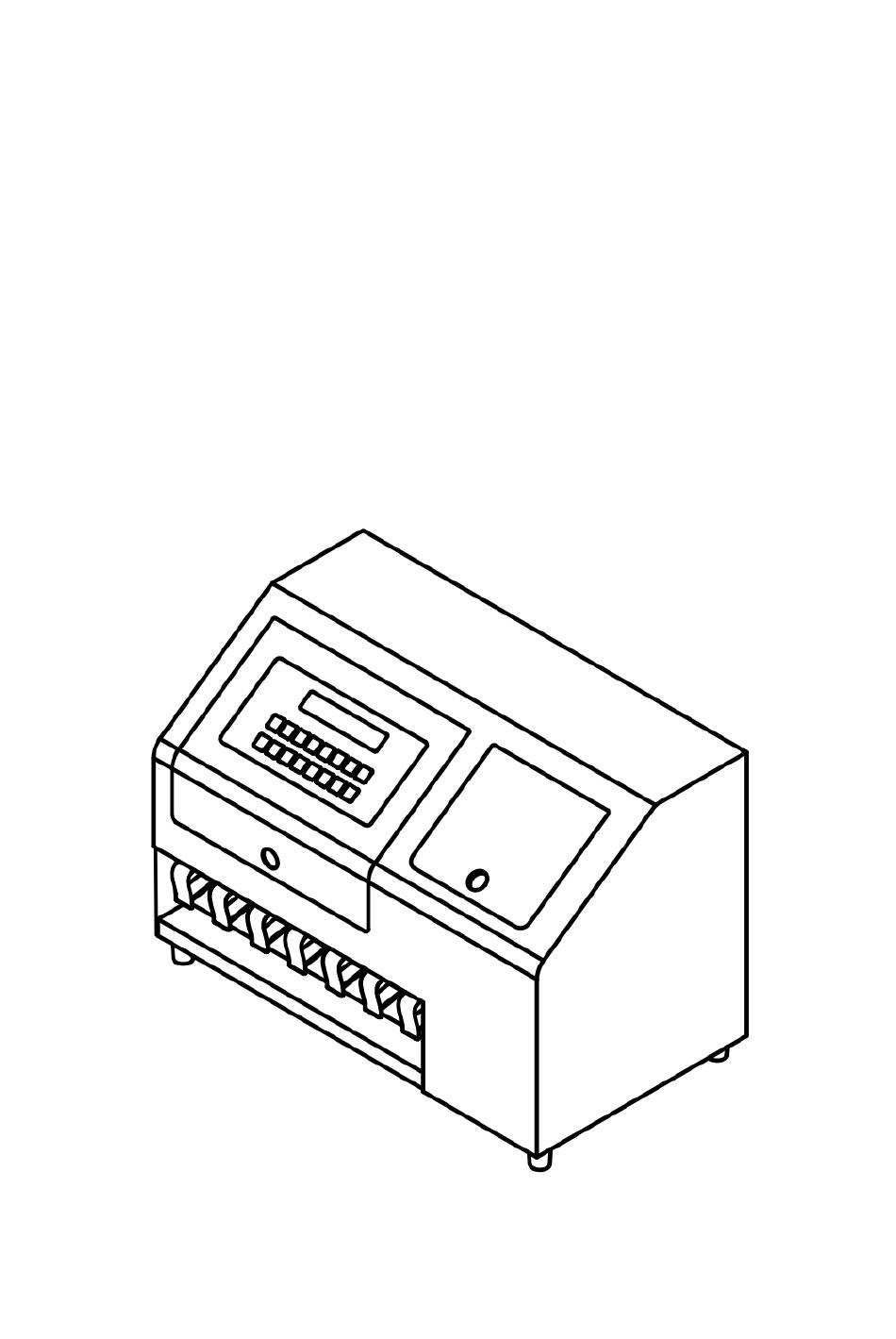

Coin Sorter
CS-600B
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-600B and is the answer not in the manual?

Questions and answers

Summary of Contents for CDN CS-600B

  • Page 1 Coin Sorter CS-600B Operation Manual...
  • Page 2: Table Of Contents

    CS-600B Operation Manual V1.4 Contents 1. Overview ....................2 2. Technical Parameters ................3 3. Precautions ....................3 4. Panel Description ..................4 4.1 Key Function ................... 4 4.2 Display Mode .................. 4 5. Coin Receiving Bucket Corresponding to Each Channel ....... 5 6.
  • Page 3: Overview

    CS-600B can be connected to a printer (baud rate is 115200 by default) or computer through an RS-232 interface to print all data at any time; CS-600B can also be connected to an external display through a PS2 port to display all coin data at any time.
  • Page 4: Technical Parameters

    CS-600B Operation Manual V1.4 2. Technical Parameters Sorting speed About 600 coins/min Bucket capacity About 600 coins Countable Coin size Diameter 14-33mm Thickness 1-4mm Sorting type 1- 6 different coins. Dimensions 510× 280× 320mm Weight 16Kg Power Current AC 110V ± 10%, 60Hz or AC 220V ±...
  • Page 5: Panel Description

    CS-600B Operation Manual V1.4 4. Panel Description Figure 4.1 Schematic Diagram of Panel 4.1 Key Function 1) START/STOP: Start/Stop 2) HOME: Return to main interface 3) : Select channels 4) CLR: Clear 5) SET: Debug reserved keys 6) VALUE/COUNT: Switch between piece counting and value counting 7)...
  • Page 6: Coin Receiving Bucket Corresponding To Each Channel

    CS-600B Operation Manual V1.4 5. Coin Receiving Bucket Corresponding to Each Channel Channel 3 Channel 5 Channel 1 incompatible coin channel Channel 6 Channel 2 Channel 4 Figure 5.1 Schematic Diagram of Channel The coin receiving channels from right to left are incompatible coin bucket, channel 1, channel 2, channel 3, channel 4, channel 5, and channel 6.
  • Page 7: Channel Selection

    CS-600B Operation Manual V1.4 6.1 Channel Selection Figure 6.1.1 Schematic Diagram of Selecting channels  Press keys to select different channels and check the amount and quantity of coins in channels; Figure 6.1.2 Schematic Diagram of Switching between Amount and Quantity ...
  • Page 8: Data Storage

    CS-600B Operation Manual V1.4 6.3 Data Storage  After counting, press MT key to store the coin counting data.  Press MT key to store the data, and the indicator light next to it will be on.  If the indicator light is on, data is stored in memory.
  • Page 9: Storage Accumulation

    CS-600B Operation Manual V1.4 Figure 6.5 Schematic Diagram of Clearing Stored Data 6.6 Storage Accumulation  Press M+ key to accumulate the current data to the previous data and save it, and clear the current display data to zero. ...
  • Page 10 CS-600B Operation Manual V1.4 Figure 6.7.1 Batch Quantity of 10 Coins in Channel 1 Notes:  If the batch quantity is not equal to 0, the batch function is regarded to be turned on. When the number of coins in a single channel reaches the batch quantity, then, the machine stops running, the corresponding channel flickers, indicating that the batch quantity has been reached.
  • Page 11: Installation Of Coin Bag Adaptor (Optional)

    CS-600B Operation Manual V1.4 7. Installation of Coin Bag Adaptor (Optional)  As shown in the figure, install the coin bag adaptor, hang the bag and clamp it with clip.  Rotate and mount a coin tube holder.  Install a hook holder on the coin tube holder.
  • Page 12: Troubleshooting

    CS-600B Operation Manual V1.4  Place the paper tube inside the coin interior tube.  Depending on the number of coins each paper tube can hold, select a batch quantity (in batch counting mode) and start counting. When the batch quantity is reached, the machine stops.
  • Page 13: Routine Maintenance

    CS-600B Operation Manual V1.4 the blocked coins on the rail and pressing CLR key, the machine can return to the normal interface of counting coins. 3. When Err.3 is displayed, it indicates that there is a coin or foreign object blocking on the CIS sensor.
