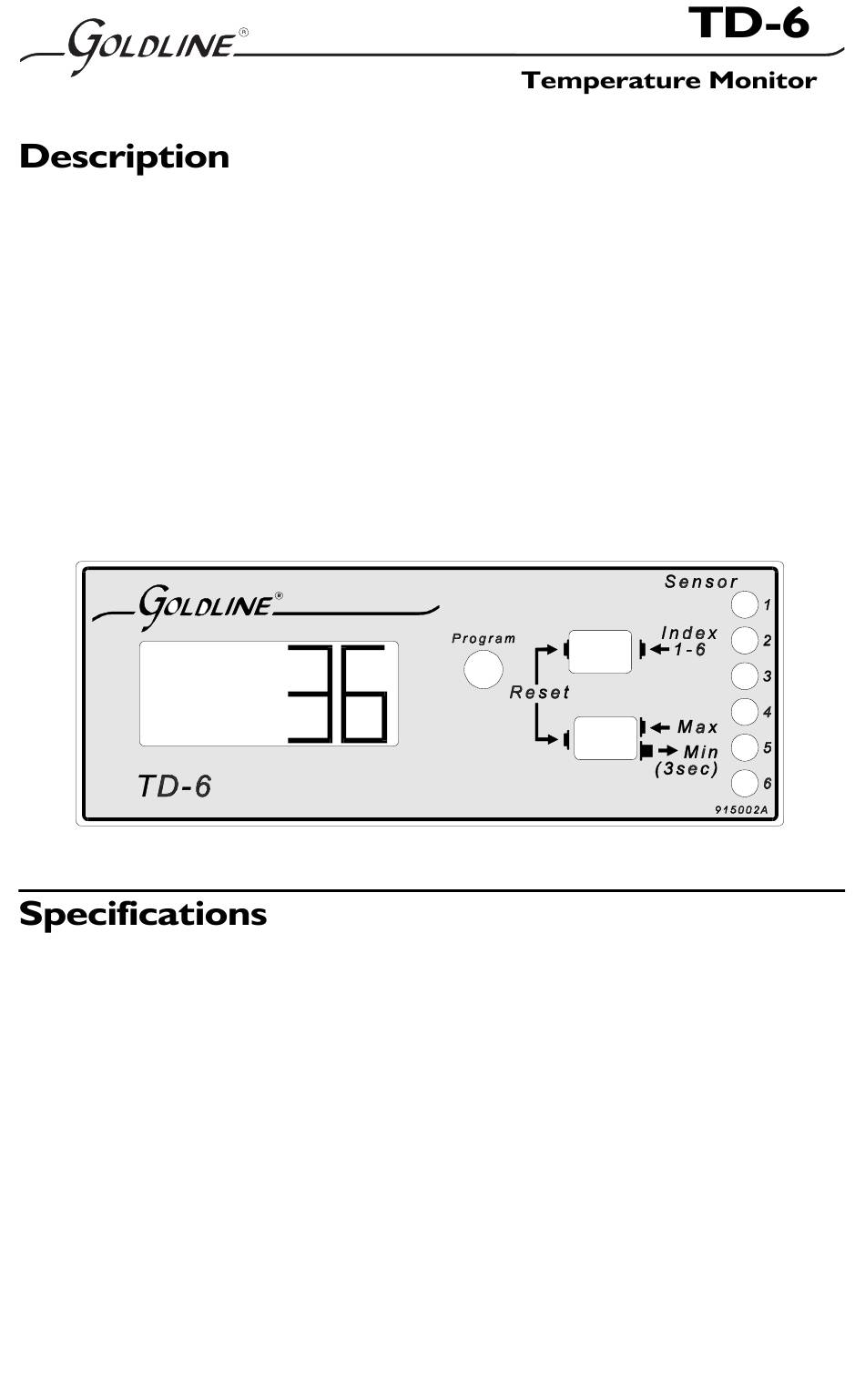

The TD-6 is a 6 channel digital temperature
monitor which can display in Fahrenheit or Cel-
sius. LED indicators indicate which channel is
being displayed and the front panel pushbuttons
can be used to manually select the display chan-
nel or to cause the TD-6 to continuously "scroll"
(displaying each active channel sequentially).
The TD-6 also stores in memory the highest and
lowest readings for each temperature sensor.
First select the desired sensor channel, then dis-
play the highest temperature (max) by depress-
ing the lower pushbutton. The lowest tempera-
Power:
Power:
Power:
Power:
Power:
Approximately .5 VA required
24VAC 50/60Hz
24VDC
Display Range:
Display Range:
Display Range:
Display Range:
Display Range:
-50°F to +250°F
-45°C to +121°C
Accuracy:
Accuracy:
Accuracy:
Accuracy:
Accuracy:
±1°F
Resolution:
Resolution:
Resolution:
Resolution:
Resolution:
1°F or 0.5°C
ture (min) will be displayed for 3 seconds imme-
diately after the lower pushbutton is released.
The max/min memory is "cleared" to the current
temperature by holding the lower pushbutton
and then momentarily pressing the upper
pushbutton. Note that the max\min tempera-
tures are retained in memory even if power is
removed from the TD-6.
The TD-6 can snap into a existing panel, flush
mounted on a 3 gang electrical box (use IE MK-
1 1 1 1 1 mounting bracket) or surface mounted on a
wall (use IE MK-2 mounting bracket).
Out of Range:
Out of Range:
Out of Range:
Out of Range:
Out of Range:
Displays "HI" or "LO"
Operating Environment:
Operating Environment:
Operating Environment:
Operating Environment:
Operating Environment:
15°F to 130°F
0-95% rH
Dimensions:
Dimensions:
Dimensions:
Dimensions:
Dimensions:
4.25" x 1.75" x 1.62" overall
3.94" x 1.50" cutout for panel mounting
MK-
MK-
MK-
MK-
Advertisement
Table of Contents
Related Manuals for Goldline TD-6
Summary of Contents for Goldline TD-6
- Page 1 TD-6 to continuously “scroll” pushbutton. Note that the max\min tempera- (displaying each active channel sequentially).
- Page 2 200'. If the wiring cutout. The optional MK-1 wallplate allows the runs close to other electrical equipment (motors, TD-6 to be flush mounted on a wall over a 3 gang high voltage wiring, compressors, etc.), shielded electrical box. Alternatively, the MK-2 bracket...
- Page 3 TD-6. While the test pattern is dis- center of the TD-6. To turn channels on or off, played, push the program button. "ch1" will be reset the TD-6 (hold both the upper and lower displayed.
- Page 4 800-343-0826 they will return the call as soon as possible. temperatures. For a given temperature, the resis- All Goldline controls use 10K thermistor sen- tance reading should be accurate to +/- 1%. For sors. When disconnected from the control the a given resistance reading, the temperature read- sensor will read 10 K ohms at 25°C/77°F.
