Summary of Contents for Radiall R380.000.800

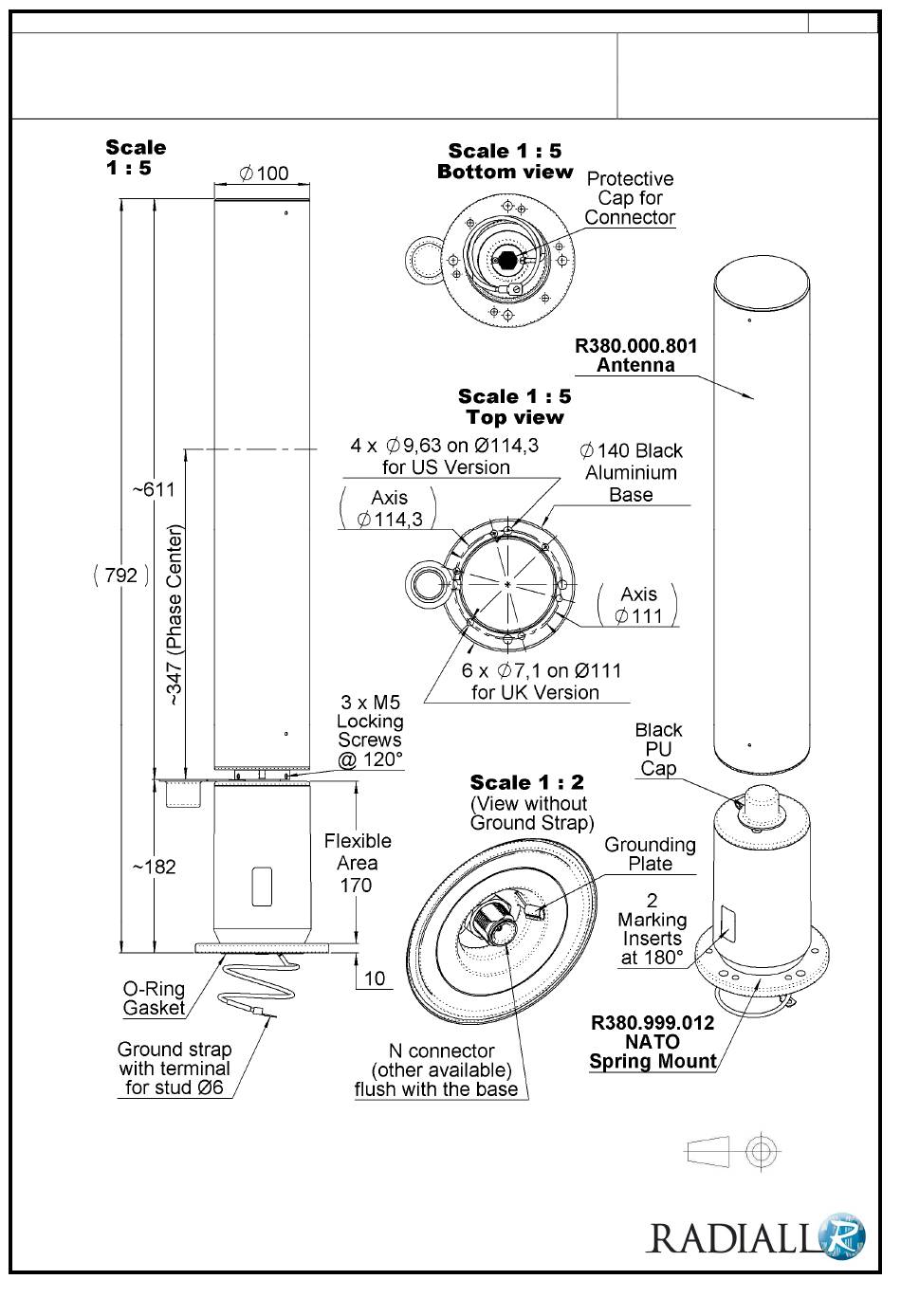

- Page 1 TECHNICAL DATA SHEET 1 / 6 R380.000.800 NATO SPRING MOUNT, VEHICULAR ANTENNA Series : ANTENNA 225 - 520 MHZ - 300W - N FEMALE RECEPTACLE All dimensions are in mm Issue : 1018 A In the effort to improve our products, we reserve the right to make changes judged to...
- Page 2 Polyurethane, Black Coaxial Cable Specially developed 5/50Ω coax The R380.000.800 is a 300W, Dipolar Design, Broadband Vehicular Antenna. The Phase-Center is located near the Middle of the Tubular Radome.. The R380.000.801 is a Ground plane Independent Antenna, that can be Mast-Mounted without particular impact on Electrical Performances.
- Page 3 TECHNICAL DATA SHEET 3 / 6 R380.000.800 NATO SPRING MOUNT, VEHICULAR ANTENNA Series : ANTENNA 225 - 520 MHZ - 300W - N FEMALE RECEPTACLE MECHANICAL CHARACTERISTICS Radome material:......... PolyCarbonate Finish : ..........NATO green , Matt Weight (incl. NATO Spring Mount) : .
- Page 4 TECHNICAL DATA SHEET 4 / 6 R380.000.800 NATO SPRING MOUNT, VEHICULAR ANTENNA Series : ANTENNA 225 - 520 MHZ - 300W - N FEMALE RECEPTACLE RADIATION PATTERNS (With Ground Plane) Radiation Patterns measured in Anechoïd Chamber with a 1.2 x 1.2 m ground plane.
- Page 5 TECHNICAL DATA SHEET 5 / 6 R380.000.800 NATO SPRING MOUNT, VEHICULAR ANTENNA Series : ANTENNA 225 - 520 MHZ - 300W - N FEMALE RECEPTACLE TYPICAL PERFORMANCE (With Ground Plane) ANTENNA GAIN in AZIMUTH PLANE horizon gain with ground plane 1.2x1.2m...
- Page 6 TECHNICAL DATA SHEET 6 / 6 R380.000.800 NATO SPRING MOUNT, VEHICULAR ANTENNA Series : ANTENNA 225 - 520 MHZ - 300W - N FEMALE RECEPTACLE MOUNTING INSTRUCTIONS STEP1: STEP2: Secure the spring mount on the bracket or on the chassis of the vehicle using one of the two following options: Option A: use 4 3/8 screws (or eq.) to secure the mount...
