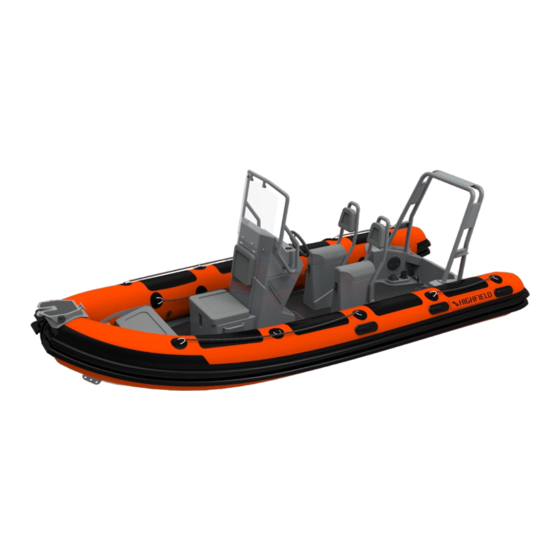

- Page 1 Highfield Boats Rollbar Installation Guide (PA500-760) RBIG2021V1...
- Page 2 Installation Guide: Rollbar ① Red stickers indicate the location of holes for installation. Tear off the stickers and cut the anti-skid PVC decking to expose the holes. Do not remove the anti-skid fabric. Corrosion Inhibitor ② Use insulating compound to eliminate corrosion between the aluminum and the stainless steel screws.
- Page 3 Installation Guide: Rollbar polyurethane marine grade adhesive ③ Secure the rollbar using polyurethane marine grade adhesive such as 3M 5200, Sika 291, Fixtech Fix 15. ④ Use a ratchet strap to adjust the width of the rollbar. Page 2/3...
- Page 4 Installation Guide: Rollbar 1—Screw M8×40mm; 2—Stainless steel flat washer M8 3—Plastic washer M8 4—Rollbar base; 5—Stern plate ⑤ Use insulating compound on the M8 stainless steel screws supplied with the rollbar. Fasten the rollbar to the transom using the screws. Congratulations, you have successfully installed the rollbar.
