Chapter 1 Welcome to Grand X-Guard (4 Port )
( Digital Record + Remote Surveillance )
1.1 Introduction
Grand X-Guard PC-based surveillance system allows you to connect up to 4 video
signals and display or record on your PC through TCP/IP, IPX (Internet/Intranet) and
modem communication protocols. The system supports Windows 2000/Windows XP.
The system uses motion detection technology and Microsoft Video Compression,
only the moving objects will be recorded .The compression rate, up to 300:1,can save
time and costs of continuous recording unlike traditional surveillance systems.
1.2 Specification

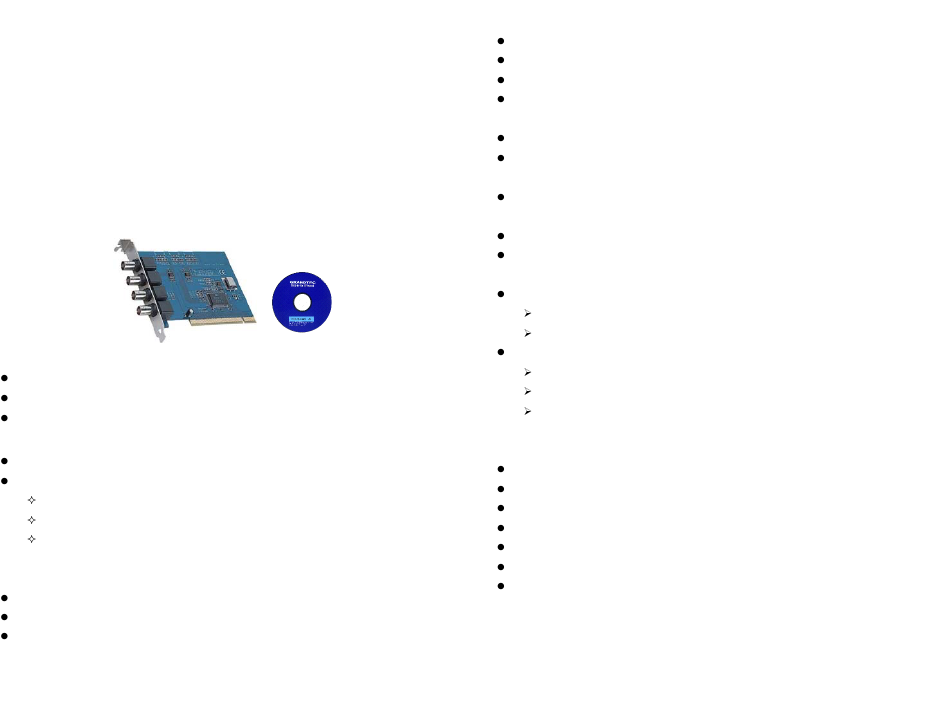

Hardware: Grand Bt878 Video Capture Card
Fully PCI 2.1 compliant
Supports the following video formats which including NTSC-M、NTSC-Japan、
PAL-B,D,G,H,I、PAL -M、PAL-N, SECAM、PAL-NC.
Supports 4 composite video or BNC input connectors.
Bundled with the following Software:
Grand X-Guard (Record and Display)
Remote Camera System (Internet/Intranet or modem communication)
Grand File Database
1.3 Features
Supports Windows 98/ME/2000/XP.
Display and record each camera or any video signal simultaneously.
Adjustable video source (brightness, contrast and etc.), quality, alarm, motion
detection area.
1
Motion Detection: watch for movement detected and record the video clips
Preview size adjustable.
Image quality and Compression ratio adjustable.
Allow the users to define the environment that they do not wish to observe, by
adjusting mask area and sensitivity.
Video file database management, delete, backup or review.
Storage Recyclable: When running out of disk space, you can delete the data of
earliest date.
Remote view through TCP/IP or IPX protocol (Internet/Intranet), fixed IP is
recommended.
Remote view through modem communication protocol.
Supports following network architecture: T1,T3, ADSL, ISDN, PSTN, Cable
modem, Hi building etc.
Compression ratio (without motion detection)
High Image Quality:4:1
Low Image Quality:30:1
Every camera frame rates:
Server: 4 port : 3.0 – 5.0 fps
Remote: 10/N fps (10-Base LAN)
Remote: 1~16fpm(modem communication)
1.4 System Requirements
Intel Pentium II 500 or above, Pentium III 800 is recommended
Microsoft Win98/ME/2000/XP.
Audio output: sound card.
Network: Ethernet network card or Modem.
Hard disk space: Plenty of disk storage for recording. At least 20 GB.
System RAM: 128 MB or above.
Display card: 16 bit high color .
2
