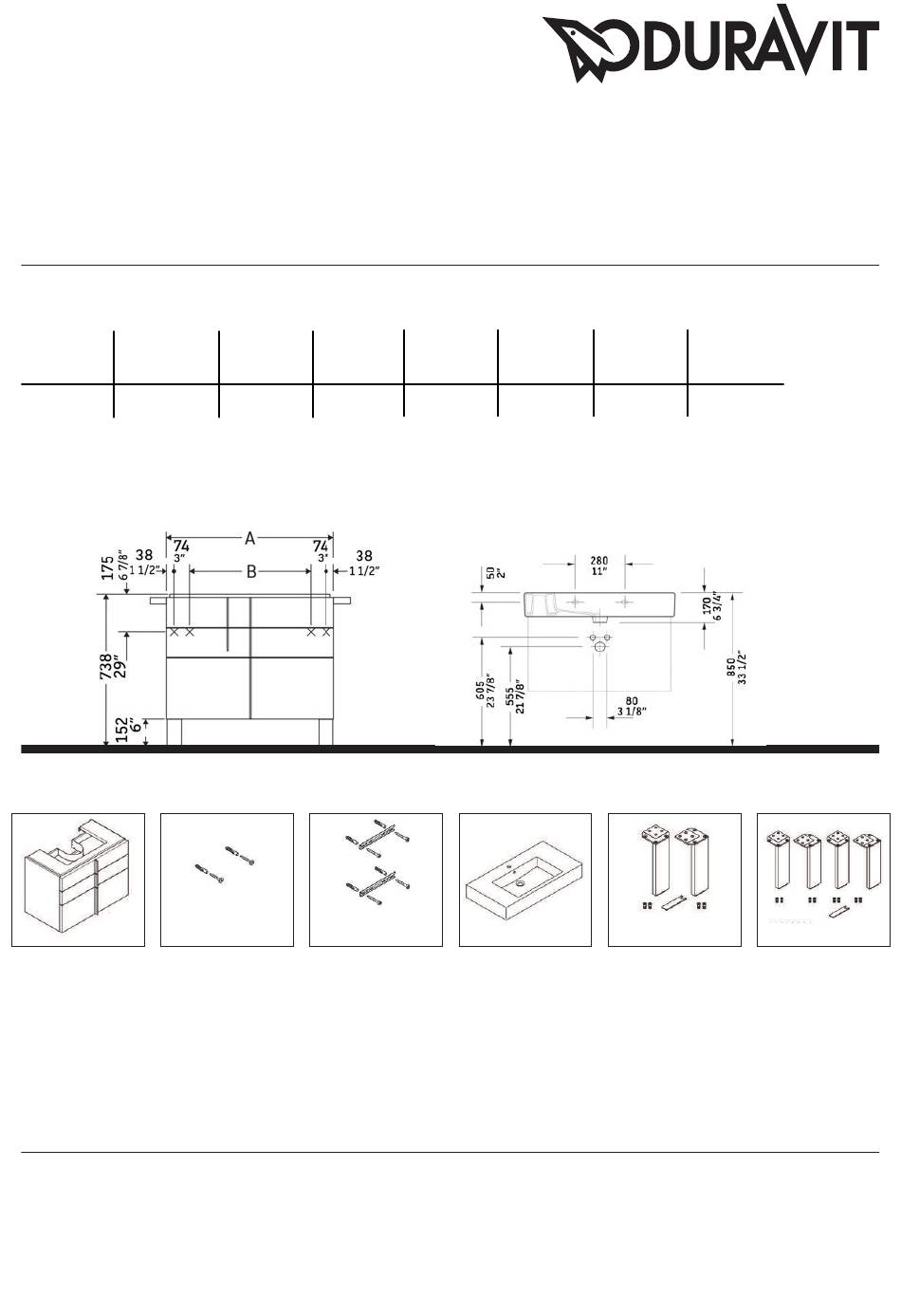

Vero
Installation instructions
A
A
mm
inch
800
31 1/2"
2x S8
2x 5,5x50
Instructions for use
The bathroom furniture range complies with the standards and guidelines applicable at the time of delivery and is designed for use in bathrooms.
Though designed for the wet environment, direct contact with water should be avoided, for example, when showering.
We reserve the right to make technical improvments and design modifications to the products illustrated.
MAL_Vero_VE6413/15.04.1
B
B
mm
inch
576
22 5/8"
2x 100
4x S8
# F23628
4x5, 5x50
# F30368
# VE 6413
W
W
mm
inch
130
5 1/8"
# 032985
# 032985
X
X
mm
inch
738
29"
# UV 9991
# UV 9992
