Optonica T11, T12, T13, T14 - Wall Mounted Touch Panel Manual

Features

  • Touch panel 4 zone 1-4 color DMX512 master, can also be used as 4 zone 1-4 color RF remote.
  • DMX signal output, comply to standard DMX512 protocol, compatible with DMX decoder from any supplier.
  • When used as RF remote, each zone can remote control multiple Skydance's 2.4G LED controllers.
  • Ultra sensitive high strength glass touch panel with touch color wheel in the middle and backlighting.
  • Smooth and accurate color adjustment by touching the color wheel.
  • Touch keys with chord tones and LED indicator.

Technical Parameters

Technical Parameters

Mechanical Structures and Installations

Mechanical Structures and Installations

Installation diagram:Installation diagram

Typical base as below:

Key function

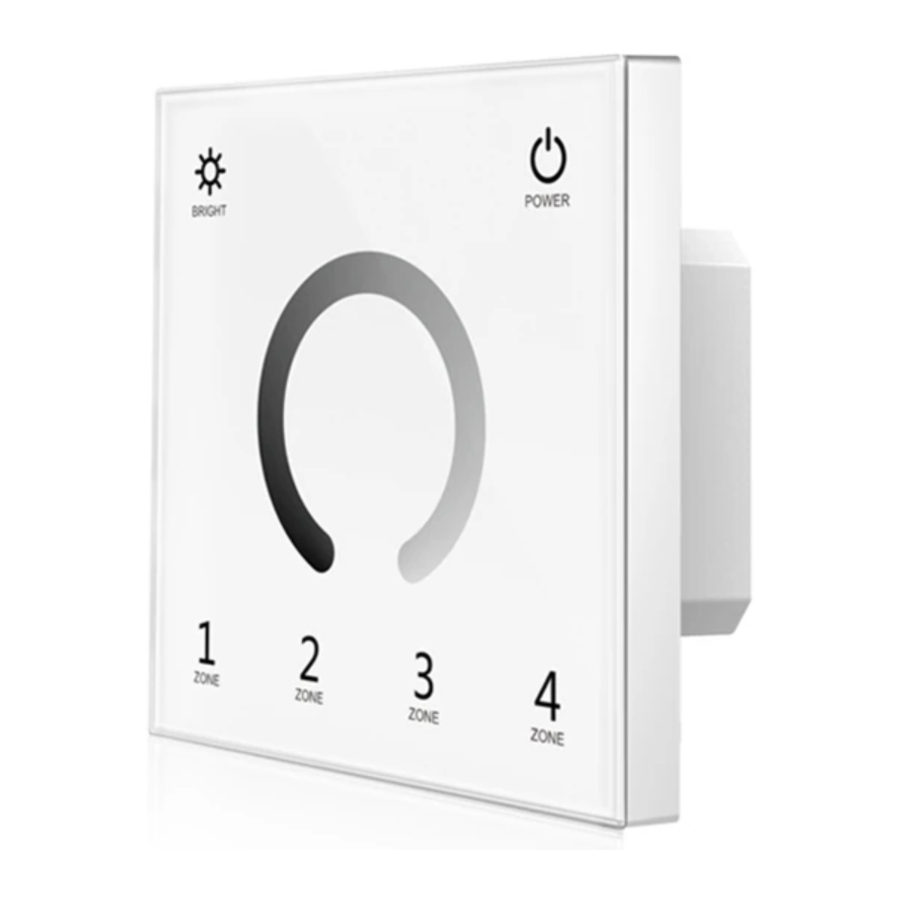

T11 Single color panel


Turn on/off all zone light.

Brightness, 10 levels.

Brightness wheel.

Short press turn on zone light and select zone simultaneously, long press 2s turn off zone light. 4 zone control seperately or synchronously, each zone could control multiple receivers.

T12 Dual color panel


Turn on/off all zone light.

Brightness, 10 levels.

Color temperature wheel.

Short press turn on zone light and select zone simultaneously, long press 2s turn off zone light. 4 zone control seperately or synchronously, each zone could control multiple receivers.

T13 RGB panel


Turn on/off all zone light.

Color wheel.

Short press play 10 built-in mode, long press 2s run mode-cycle.

Adjust dynamic mode speed or RGB color saturation, 10 levels.

Adjust brightness, 10 levels.

Short press replay scene. Long press 2s to save the current color into the scene.

Short press turn on zone light and select zone simultaneously, long press 2s turn off zone light. 4 zone control seperately or synchronously, each zone could control multiple receivers.

T14 RGBW panel


Turn on/off all zone light.

Color wheel.

Short press play 10 built-in mode, long press 2s run mode-cycle.

Adjust dynamic mode speed or static color brightness, 10 levels.

Short press get red, green, blue, white color, long press adjust each color brightness.

Short press turn on zone light and select zone simultaneously, long press 2s turn off zone light. 4 zone control seperately or synchronously, each zone could control multiple receivers.

Note: After touch power key to turn off light, long press power key for 5 seconds will turn on or turn off tone.

Touch Panel work as DMX512 Master

After connect with DMX decoders, please set the DMX decoders address as below:

Model No. T11 T12 T13 T14
WW CW RGB RGBW
Zone 1 DMX decoder's address 1 1 2 1 2 3 1 2 3 4
Zone 2 DMX decoder's address 2 3 4 4 5 6 5 6 7 8
Zone 3 DMX decoder's address 3 5 6 7 8 9 9 10 11 12
Zone 4 DMX decoder's address 4 7 8 10 11 12 13 14 15 16

Wiring Diagram for touch panel work as DMX512 master

Wiring Diagram for touch panel work as DMX512 master

For T14 RGBW panel
Each zone 4 channel:
zone 1 is channel 1 ~ 4,
zone 2 is channel 5 ~ 8,
zone 3 is channel 9 ~ 12,
zone 4 is channel 13 ~ 16,
channel 1,5,9,13 is R,
channel 2,6,10,14 is G,
channel 3,7,11,15 is B,
channel 4,8,12,16 is W.

Touch Panel work as RF remote (two match ways)

End user can choose the suitable match/delete ways. Two options are offered for selection:

Use the controller's Match key

Match:
Short press match key, immediately press Zone key of the touch panel.

Delete:
Press and hold match key for 5s to delete all match, The light blinks 5 times means all matched remotes were deleted.

Use Power Restart

Match:
Switch off the power of the receiver, then switch on power again, immediately short press Zone key 3 times on the touch panel.
The light blinks 3 times means match is successful.

Delete:
Switch off the power of the receiver, then switch on power again, immediately short press Zone key 5 times on the touch panel.
The light blinks 5 times means all matched remotes were deleted.

Wiring Diagram for touch panel work as RF remote

Malfunctions analysis & troubleshooting

Malfunctions Causes Troubleshooting

No light
  1. No power.
  2. Wrong connection or insecure.
  1. Check the power.
  2. Check the connection.

Wrong color
  1. DMX decoder first address error.
  2. Wrong connection of output wires.
  1. Check the DMX first address.
  2. Reconnect output wires.

IMPORTER: Prima Group 2004 LTD, Bulgaria, 1784 Sofia, Mladost 1, bl. 144, Ground Floor; Phone: +359 2 988 45 72;
