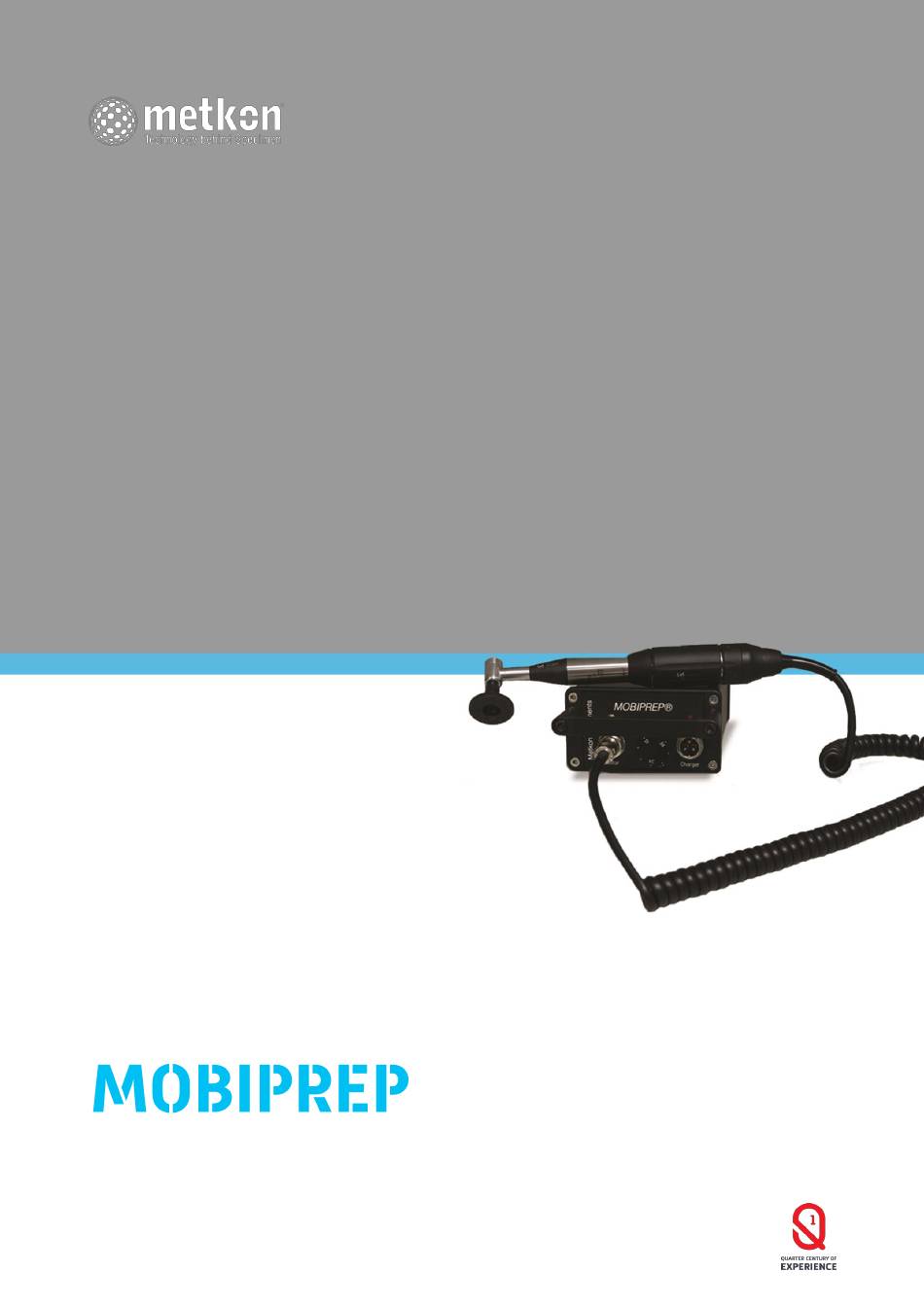

- Page 1 OPERATION & INSTRUCTION MANUAL PORTABLE GRINDING/POLISHING & ELECTROLYTIC ETCHING metkon.com...
- Page 2 EC Declaration of Conformity Manufacturer Metkon Instruments Inc. Address Demirtas Dumlupinar Organize Sanayi Bolgesi Ali Osman Sonmez Cd. No: 14 Bursa / TURKEY Model No MOBIPREP Herewith declares that; Portable Grinding/Polishing & Electrolytic Etching Machine Confirms that it complies with the rules, in particular the protection requirements, which in the European Community Directive on the approximation of the laws relating to electromagnetic compatibility (89/336/EEC), the Directive amending the CE marking (93/68/EEC) and the Act are set out on the electromagnetic compatibility of equipment as of 18.09.1998.
-
Page 3: Table Of Contents
Index DESCRIPTION ..........................4 Design ..................................... 4 Technical Data ..................................5 Warranty ....................................6 Safety Precautions .................................. 6 INSTALLATION & SET UP ......................7 Unpacking & Checking Contents of Package ........................... 7 Installation and Set-Up ................................7 Electrical Installation ..................................7 OPERATION .......................... -
Page 4: Description
DESCRIPTION Design MOBIPREP is a battery powered portable Grinder / Polisher The switch for ON/OFF is on the hand-guide and provides a and etcher designed for metallographic sample preparation in click sensation with a confirmation tone from the control unit field or in laboratory. -
Page 5: Technical Data
Technical Data Model MOBIPREP Order No 90 01 Voltages 36V or 100-240V / 50-60 Hz. Speed 0 – 25.000 rpm 2 LED Indicator On / Low Battery E – Etching-1 (E1) EP – Etching-2 or Polishing-1 (E2 or P1) EPG – Etching-3 or Polishing-2 or Grinding-1 (E3 or P2 or G1) Operation Modes PG –... -
Page 6: Warranty
E-Metkon section. distributor for authorization and include the following details: Serial Number of the unit, Invoice number and date. Transport Check that the MOBIPREP is standing firmly on the costs belong to the customer. support. Always place the MOBIPREP, micro motor, accessories and the consumables in its carrier and protection bag. -
Page 7: Installation & Set Up
INSTALLATION & SET UP Electrical Installation The MOBIPREP is a portable equipment for field work with a rechargeable battery. Before making electrical connections Unpacking & Checking Contents of Package for recharging, check that the voltage and frequency stated on the specification plate correspond to the local voltage and Carefully unpack and check contents of the package. -
Page 8: Operation
Connect the battery charger to the charging socket (#5). The batteries of MOBIPREP are now being charged. When the batteries are fully charged, the Battery Indicator Iights green. If the batteries need charging the Battery Indicator will Iight red. -
Page 9: 90° And 45° Angle Attachment Connection
90° and 45° Angle Attachment Connection Straight Quick Release Piece Connection (Optional) 45° angle attachment is supplied as an optional accessory. Align the threads on the front end of the motor and the rear end attachment, and turn the attachment clockwise. ... -
Page 10: Grinding And Polishing Operation
Grinding and Polishing Operation Wipe the etching pen on the prepared spot until etching is done. (The mirror-like polished surface becomes darker). Connect the hand guided device to socket #4 After the etching process is finished, clean the area with ... -
Page 11: Service And Maintenance
SERVICE AND MAINTENANCE Maintenance Clean the MOBIPREP with a soft, slightly dump cloth. Clean the grinding & polishing carriers and the accessories before attaching to the micro motor to prevent dust and particule contamination. Troubleshooting ERROR DESCRIPTION ACTION... -
Page 12: Accessories And Consumables
Grinding and polishing carriers (5 pieces) 90 14 90 15 Shoulder bag for Mobiprep, synthetic leather Consumables In-situ/Field metallography is widely used for microstructure analysis on large parts (samples) that cannot be easily carried or where destructive preparation is permissible such as storage tanks, piping system, power plants, etc. In-situ Metallography allows for quick on-site evaluation of a component. - Page 13 Order No CODE Diamond Pastes, Monocrystalline 39-301-M DIAPAT-M Diamond Paste, 0.25 µm, 10gr. syringe 39-311-M DIAPAT-M Diamond Paste, 1 µm, 10gr. syringe 39-321-M DIAPAT-M Diamond Paste, 3 µm, 10gr. syringe DIAPAT-M Diamond Paste, 6 µm, 10gr. syringe 39-331-M 39-341-M DIAPAT-M Diamond Paste, 9 µm, 10gr.
-
Page 14: Technical Documentation
Customer Service Our factory-trained assembly personal is at your disposal for customer service. Please contact the following address: Head Quarter Metkon Instruments Inc. Demirtas Dumlupinar Organize Sanayi Sitesi Ali Osman Sonmez Cad. No: 14 Bursa/TURKEY Tel: +90 (224) 261 1840... - Page 16 info@microscopeworld.com | 800-942-0528...
