Summary of Contents for Roland BOSS SDE-3000EVH

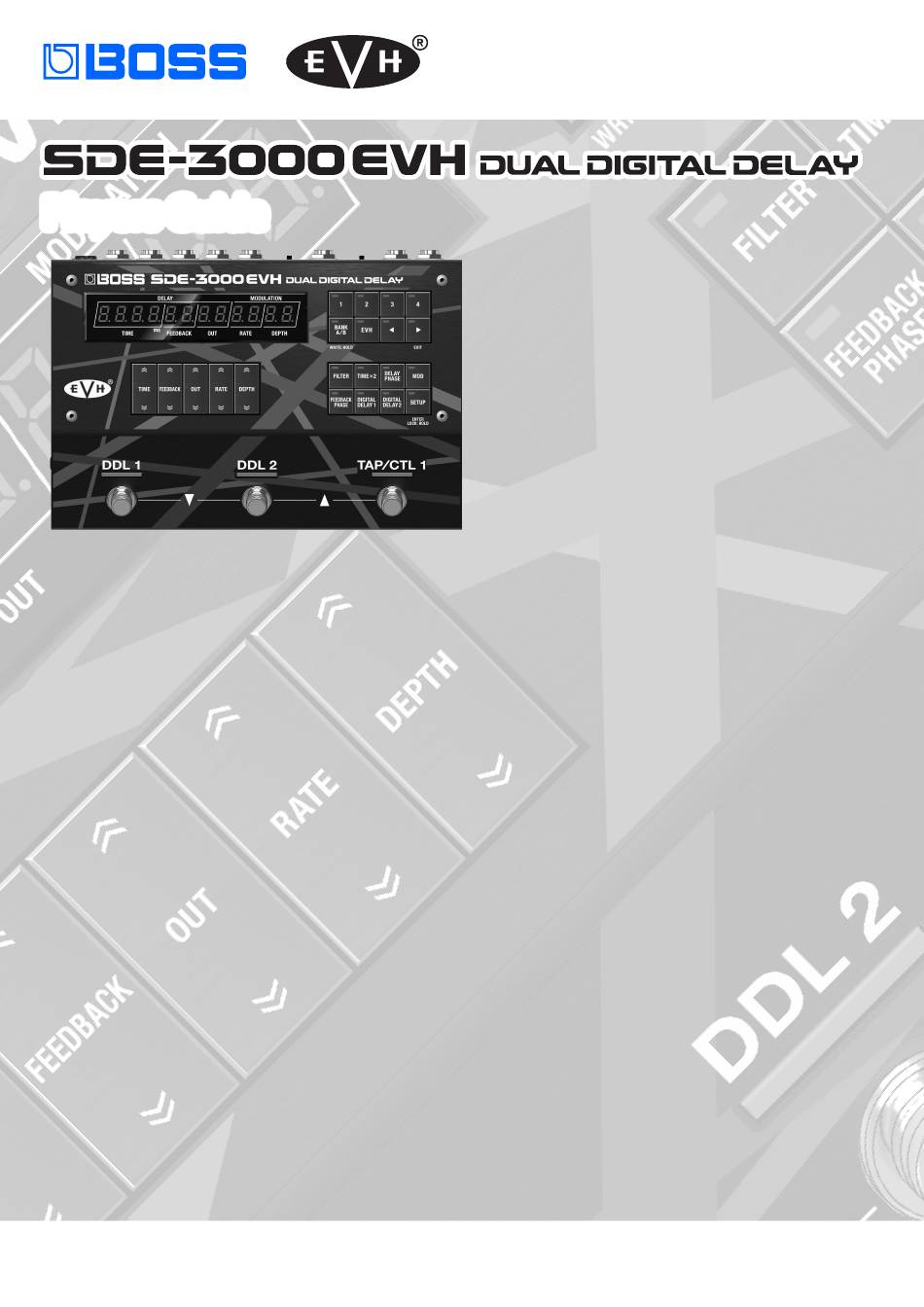

- Page 1 Players Guide EVH, the EVH logo, and the Stripe Design © used under license from EVH Brands, LLC © 2023 Roland Corporation...

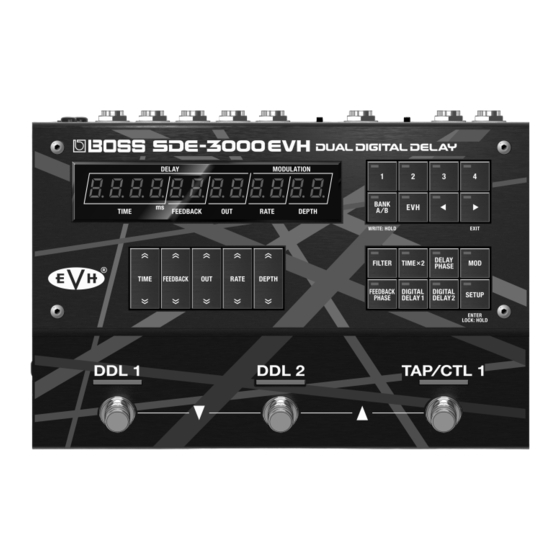

- Page 2 SDE-3000EVH Players Guide Congratulations on your purchase of the BOSS SDE-3000EVH Dual Digital Delay! All of us at EVH and BOSS hope that this unit will bring you years of enjoyment and inspiration. This product is comprehensive and versatile, and unique in it’s design. It combines “retro” aesthetics and signature SDE-3000 tone, with many modern features.
- Page 3 SDE-3000EVH Players Guide Mono, using AMP FX loop INPUT L/MONO Send Return To Input Mono, using pedal loop and AMP FX loop From Amp To Amp input jack send jack To Amp return jack INPUT RETURN RETURN SEND SEND L/MONO L/MONO Stereo Rigs You can split to stereo using the SDE-3000EVH L/R outputs.
- Page 4 SDE-3000EVH Players Guide WDW (WET/DRY/WET) Rigs The SDE-3000EVH features three discrete outputs, including a “center dry” channel. When fed with a mono or stereo signal, the three outputs can be routed in a number of ways: ¹ to three guitar amps ¹...
- Page 5 SDE-3000EVH Players Guide Adjusting Parameters and Storing Presets The main parameters of each preset in the SDE-3000EVH can be easily adjusted with the buttons on the top panel. Simply push the up/down buttons to adjust delay time, feedback, out (mix), mod rate, and mod depth. To store a preset Holding down the [BANK A/B] button for 2 seconds, then press the [SETUP] (ENTER) button.
-
Page 6: Preset List
Preset List Four Eddie Van Halen settings are saved as EVH memories (the detailed parameters are unreleased). Further, there are two types of each of these four settings: a type for output to three amps, and a type for output to a pair of amps in stereo. The OUT LEVEL parameters are optimized for each type. - Page 7 SDE-3000EVH Players Guide Presets A01 through B04 were created to demonstrate the range of the SDE-3000EVH capabilities. A01-A04 are basic delays that only use DDL1: A.01 DDL 1 is set to sixteenth note. STRUCTURE: SERI BPM: DRY+WET L DDL 1 (L/R) DRY+WET R Guitar DDL 1 parameter...
- Page 8 SDE-3000EVH Players Guide A.03 DDL 1 is set to 450 msec. STRUCTURE: SERI BPM: DRY+WET L DDL 1 (L/R) DRY+WET R Guitar DDL 1 parameter DDL 1 SW: DDL 1 TYPE: STEREO DDL 1 TIME LINK: ¸ ¸ ¸ ¸ ¸ ¸ ¸ ¸ ¸ ¸ ¸ ¸ $ 4 5 0 4 4 2 5 $ 0 $ 0 L channel ¸...
- Page 9 SDE-3000EVH Players Guide B.01 DDL 1 is set as follows: 15 msec for Lch, 10 msec for Rch. DDL 2 is set to 370 msec. STRUCTURE: SERI BPM: DRY+WET L DDL 1 (L/R) DDL 2 (L/R) DRY+WET R Guitar DDL 1 parameter DDL 2 parameter DDL 1 SW: DDL 2 SW:...
- Page 10 SDE-3000EVH Players Guide B.03 DDL 1 is set as follows: 502 msec for Lch, 498 msec for Rch. DDL 2 is set as follows: 373 msec for Lch, 375 msec for Rch. The two delays are connected in series for a spacious delay sound. STRUCTURE: SERI BPM:...
