Integral LED LIGHTSPAN SLIM II Installation Instruction

Advertisement

Quick Links

B
C
LED Batten Model
ILBTF101
2FT 10W/15W/20W 3000K4000K/6000K Standard
ILBTF102
4FT 20W/30W/40W 3000K4000K/6000K Standard
ILBTF103
5FT 30W/45W/60W 3000K4000K/6000K Standard
ILBTF104
6FT 36W/54W/72W 3000K4000K/6000K Standard
ILBTF105
2FT 10W/15W/20W 3000K4000K/6000K SENSOR
ILBTF106
4FT 20W/30W/40W 3000K4000K/6000K SENSOR
ILBTF107
5FT 30W/45W/60W 3000K4000K/6000K SENSOR
ILBTF108
6FT 36W/54W/72W 3000K4000K/6000K SENSOR
ILBTF109
2FT 20W 3000K4000K/6000K EMERGENCY
ILBTF110
4FT 40W 3000K4000K/6000K EMERGENCY
ILBTF111
5FT 60W 3000K4000K/6000K EMERGENCY
ILBTF112
4FT 40W 3000K4000K/6000K EMERGENCY / SENSOR
ILBTF113
5FT 60W 3000K4000K/6000K EMERGENCY / SENSOR
*Output level under emergency conditions
Thank you or purchasing an INTERGRAL LED product. When installed correctly this unit will provide years of service service-
with no lamp changes required. For support or warranty information please see integral-led.com.Always turn off circuit power
at the distribution unit before installation and maintenance. Please ensure that the power cannot be connected inadvertently.
Important Details - Please read prior to installation
Ensure the AC/Mains power is NOT connected and cannot be unexpectedly during installation.
General guidelines for installation:
1. This product must be installed by a competent electrician in accordance with the instructions provided and incompliance
with recognised electrical and safety regulations relevant to the country it is being installed.
2. This product is suitable for installation on surfaces with normal flammability e.g. wood, masonry. Before making the
fixing hole(s), check that there are no obstructions hidden beneath the mouting surface, such as pipes for cables. It is
not suitable for use on highly flammable surfaces or in flammable atmosphere.
3. For ceiling, wall mounted or suspended installations please follow ``Installation insctructions`` below. For surface mount.
this product must be securely fixed to the mounting surface using the brackets, screws and wall plugs supplied (Fig. 1)
The screws and wall plugs are suitable for ``masonry`` only.
4. For the correct polarity please see ``Wiring Connection``.
5. Tis product is not suitable for dimming.
Fixing Kit
(Fig. 1)
Clip
2pcs

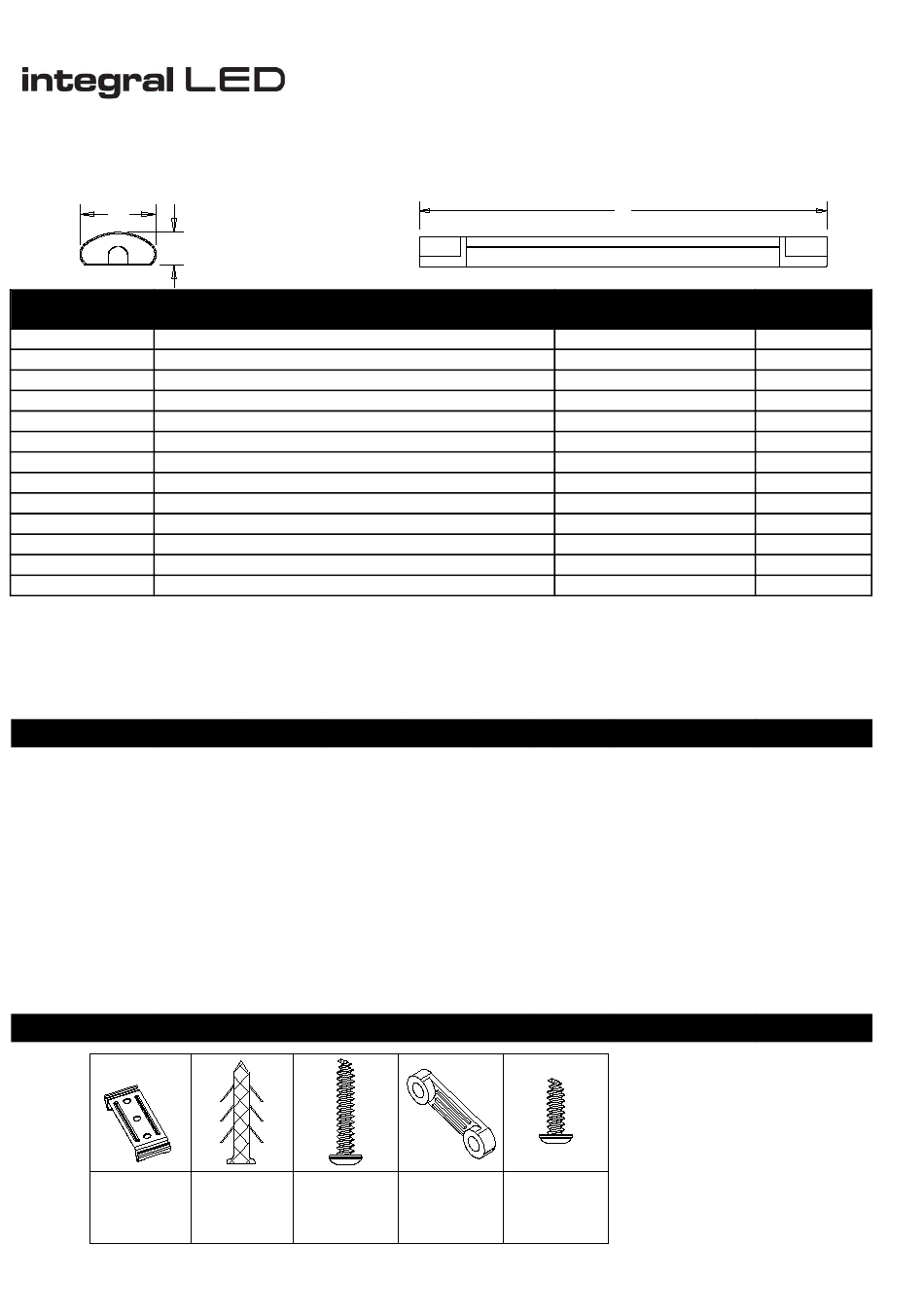

INSTALLATION INSTRUCTION
for Intergral LIGHTSPAN SLIM II IP40 LED Battens
Function
Expansion
Screw
bolts 4pcs
4pcs
3 Years Warranty
Screw
wire clips
1pcs
2pcs
A
Product Dimensions(mm)
(AxBxC)
590x80x36
1190x80x36
1490x80x36
1790x80x36
590x80x36
1190x80x36
1490x80x36
1790x80x36
590x80x36
1190x80x36
1490x80x36
1190x80x36
1490x80x36
Net Weight
(Kg)
0.48
0.88
1.6
1.35
0.48
0.88
1.6
1.35
0.58
0.99
1.7
0.99
1.7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIGHTSPAN SLIM II and is the answer not in the manual?

Questions and answers

Summary of Contents for Integral LED LIGHTSPAN SLIM II

  • Page 1 INSTALLATION INSTRUCTION for Intergral LIGHTSPAN SLIM II IP40 LED Battens 3 Years Warranty Product Dimensions(mm) Net Weight LED Batten Model Function (AxBxC) (Kg) ILBTF101 2FT 10W/15W/20W 3000K4000K/6000K Standard 590x80x36 0.48 ILBTF102 4FT 20W/30W/40W 3000K4000K/6000K Standard 1190x80x36 0.88 ILBTF103 5FT 30W/45W/60W 3000K4000K/6000K Standard...
  • Page 2 IMPORTANT! This product is a class I device and must be connected to an earth termination. Installation Instructions 1. Open the batten diffuser cover retaining clips. Note that there are two clips that remain attached to be housing so that the diffuser cover doesn`t fall away during installation.
  • Page 3 The microwave sensor version provides an ON/OFF function.It has maximum installed height of 3metres and maximum detection area radius of 3metres.It is set up manually using the 8 configuration switches that are sited on the top of the LED and gear tray. Detection area, hold time, Daylight Sensor and Operating Mode can be precisely set as follows:(Default setting: 100%, 5s, +∞,0s) Detection area In this area,movement will be detected and able to trigger the sensor.
  • Page 4 C. Open the end with input mask according picture 1 & picture 2,then open corresponding preset line hole according to the input cord loaction, pictures 3, and fix the cord clip. D. Follow the reverse operation of picture 1 and picture 2 E.
