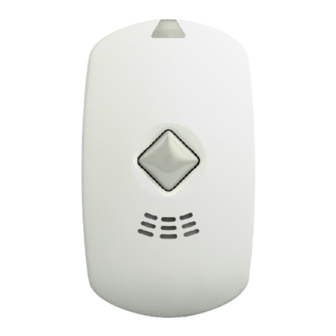

Summary of Contents for Numera Libris
- Page 1 Numera Libris Device Training...
- Page 2 About Numera Libris...
- Page 3 Getting Started: What’s in the Box Power Cord Libris Libris Charger Belt Clip Lanyard/Clip User Guide Quick Start Guide...
- Page 4 About Libris: Specifications • Wide Area Cellular • Environmental Connectivity Highly water-resistant 3G WCDMA quad-band Shatter-resistant Temp range: -15C to 45 • Automatic Fall Detection • Up to 36 hours* of battery life • Fall Detection Analysis • Dimensions: 66 x 40 x 19mm •...
- Page 5 6. Clip Lock enables you to affix a 2. Battery Indicator, which surrounds the Lanyard/Clip or Belt Clip Call Button, shows battery status 7. Charging Pins connect Libris to the 3. Call Button, when pushed, initiates a Charger two-way call to your response team 4.
- Page 6 About Libris: Indicator Lights Cellular Indicator Shows* cellular signal strength Battery Green Strong signal Indicator Amber Moderate signal Shows* the level of battery charge No signal Green Ready for use Amber No action needed Charge soon *The indicator lights will flash...
- Page 7 Getting Started: Activate Libris Insert the small end of the Power Cord into the back of the Libris Charger, and plug the large end into a wall outlet Place Libris in the Charger. Libris will automatically turn on and begin activation. Follow the voice prompts until directed to connect to your response team.
- Page 8 Getting Started: Call to Set Up Charge for 4 hours Your response team Press and hold Charge Libris in the will answer, and will the Call Button Charger for 4 hours. walk you through with the device in customizing Libris and the Charger.
- Page 9 About Libris: Turning On & Off Turn On Turn Press the Call Button Press and hold the twice, holding the Call Button until the second press until Battery Indicator prompted to press the flashes Call Button again to Listen for the audio confirm.
- Page 10 About Libris: Placing a Call Manually & Canceling a Call Place a Call Cancel a Call Press and hold the Press and hold the Call Button twice, Call Button once holding the second press for 7 seconds. Listen for the audio You will hear this audio message: “Calling your...
-
Page 11: Device Battery Charging
Device Battery Charging... - Page 12 Battery Alert Thresholds Battery Indicator Visual/Audio Alert Battery % Threshold GREEN 67 -100% AMBER 66-52% 0-52% Shows* the level of battery charge Critical Audio Alert** Green Ready for use Amber No action needed Charge soon ** "Charge your personal mobile responder now.
- Page 13 Battery Discharge Chart...
- Page 14 Battery Thermal Protection • Built in thermal protection shuts battery charging when internal temperature reaches 40 ºC (105 ºF). • What impacts device temperature? • Ambient temperature: • Normal device operations can some additional heat to the device. • Voltage Draw: •...
-
Page 15: Charge Management
Charge Management • When the device is in the charging cradle and reaches full charge, the power management system allows the battery to discharge to a certain level (4v ~ 75%) before it resumes charging until the battery reaches full charge again. -
Page 16: Fall Detection
Fall Detection... - Page 17 Fall Detection - How Does it Work? • Libris is designed to sense when the user has fallen and automatically contact the response team. • Fall data is gathered from an array of sensors located on the device, including accelerometers, a magnetometer and gyroscope.
- Page 18 • How should the user wear the device for best results? • The Libris can be worn at the waist using the belt clip or around the neck using the lanyard • If worn around their neck, ensure that Libris remains close to the chest, worn...
- Page 19 Delayed Fall Alert • If a fall is detected while the device is in a poor coverage area and a voice call cannot be made: – Device will play a message for the user announcing why the call could not be made, and that it will continue to retry the call –...
- Page 20 Location Based Services -...
-
Page 21: Location Services
Location Services • The location services are key features of the Libris platform. • Libris has a both a GPS (Global Positioning System) antennae and Location Based Services (LBS) technology to approximate user’s location This is a live Google map,... - Page 22 GPS or Satellite Fix • This method uses GPS (satellite) information • It is more precise in determining a user’s location • It is denoted by a blue icon on the map. • It is dependent on cloud cover, trees, buildings, etc.
-
Page 23: How Gps Works
• “GPS acquisitioning” is done during the initialization of the device • The GPS antenna inside Libris scans the sky to receive signals from GPS satellites rotating around the Earth, which can take ~ 3 minutes. • Once satellites are located, the information is saved •... - Page 24 LBS or Network Fix • LBS (also referred to as network fix, cellular identification (CID), enhanced cellular identification (eCID), or triangulation). • This method uses the closet cellphone tower to determine the user’s approximate location. • It is denoted by a icon on the map.
-
Page 25: During An Active Call
In optimal conditions, the active call screen is updated every 5 seconds with a new satellite location fix. • If a recent satellite fix is not available, Libris will prompt the network operator’s LBS service to receive a network location. •... - Page 26 Answering a Libris Call Alarm...
-
Page 27: Call Response
Call Response Operator is presented with the Libris Call Center page. DO NOT CLOSE this screen until the call has been terminated. Terminate a call by clicking here Caller’s name and address, device Device orientation version and FD and sensor chart... -
Page 28: Event Summary
“Fall” where the device automatically detects a fall and sends in the call alarm. Cellular Signal • Shows the strength of cellular signal received by the Libris device. Battery • Displays the current battery charge on the device. Notes •... -
Page 29: Device Orientation
Device Orientation • Displays how the device is positioned – upright, sideways, inverted, face down. • This information can be useful in interpreting how the user may be positioned. • Example, if it is upright the user may be standing or sitting up. If it’s face down, the user may be laying on the ground. - Page 30 Activity Graph • The Activity graph is a readout of the motion on the accelerometer located in the Libris. • It displays if any movement is detected on the device in real-time. • This information can be useful in interpreting how the user may be positioned.
- Page 31 Other Data Elements and Actions Upload Events • This allows the operator to upload all events related to that device. PSAP (Public Safety Access Point) • This button allows you to access the local public safety teams for the region displayed on the map via the satellite or network fix.
- Page 32 RTS Error Message • Error message displays when the RTS (real time server) loses data connection with the device. • Voice connection, if established, will remain active. • Once network data connection is resumed the Active Call screen will once again update with GPS data, orientation and activity.
- Page 33 Thank You...
