Jasco PRO Series Manual

66870 PRODUCT SPECIFICATIONS
JascoPro
™

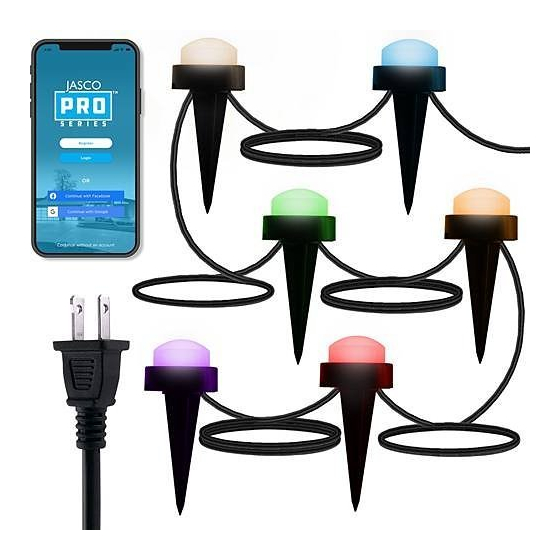

Landscape Lights, 70ft., 36 Pucks
www.byjasco.com
Series Wi-Fi LED
Specifications
Length of fixture: 70' Lumens: 40 per puck
Voltage: 120 Hertz: 60 CRI: 81 Nominal wattage: 32
CCT: 2200K - 6000K Signal Frequency: 2.4GHz
Operating Temperature Range: -4 - 122˚ F (-20 - 50˚ C)
Lifetime: 50,000 hours Warranty: 3-year limited warranty
Design Features
∙ 36 commercial grade, mini metal puck light fixtures illuminate up
to a 70-foot area
∙ Flexible spacing – includes 22ft. lead wire and 2ft. spacing
between lights. Burial grade cable allows hiding excess cable
under mulch or soil
∙ All-weather rated– Commercial grade and UL-rated for permanent
outdoor installations
∙ Free JascoPro Series App – no hub required
∙ Wi-Fi or Bluetooth setup and control
∙ Manual control button for manual operation
∙ Mobile or voice control – works with Alexa and Hey Google
∙ Selectable color modes – Choose from 56 single colors; holidays
& events presets, 2- and 3-color combinations to create your own
∙ Dimmable – Full-range dimming
∙ Selectable white – 2200K - 6000K
∙ Schedules and timers
∙ Flexible mounting options – Mount lights facing up, down or
stake into the ground. Stakes included
∙ UL listed, FCC certified
Additional Installation Information
∙ Landscape lights feature 22 AWG UV stabilized direct burial-
grade cable. This allows you to conceal excess cable by directly
burying it in the soil or covering it with garden bedding.
∙ When mounting lights up, use the keyholes on the back or ear-
tabs on the side — screws not included.
∙ Use #6 pan head screws (not included) to mount each puck to a
solid support structure such as joists, beams, studs and more.
1
