Summary of Contents for nwm MBE001

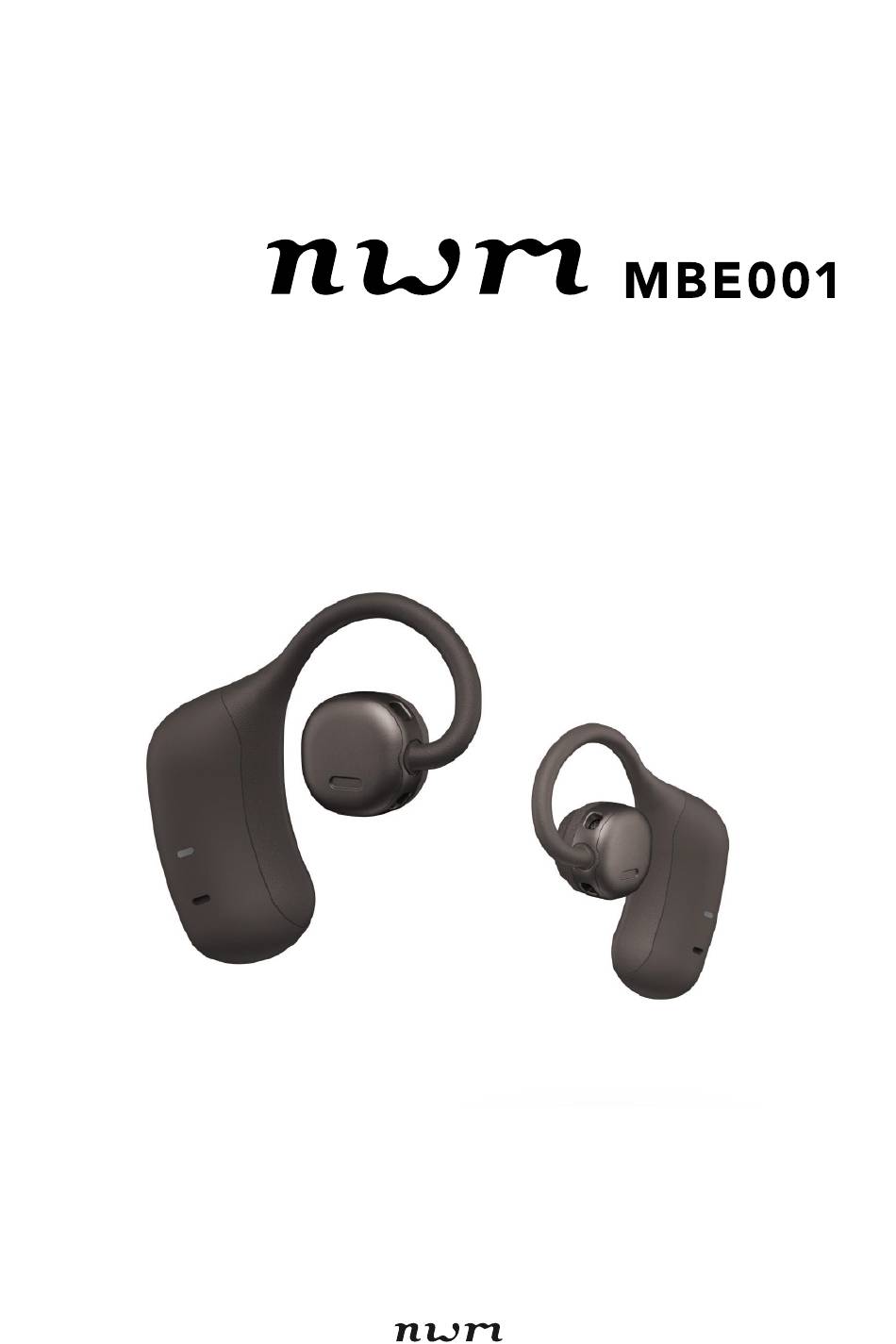

- Page 1 wireless on-ear speakers Online Instruction Manual...
-
Page 2: Table Of Contents
Listening to music ................ 17 Calling ..................19 Using the voice assistant function ..........21 nwm Connect App ..............23 Operations available with the nwm Connect app ......23 Download the nwm Connect app ..........23 Troubleshooting ............... 24 Troubleshooting ................24 How to reset ................. -
Page 3: Introduction
Introduction Package contents (1) Main unit (2) Carrying case (4) Quick start guide (3) USB cable (USB Type-A - USB Type-C ® (5) Safety guide x 2 – 3 –... -
Page 4: Part Names
Part names (This example uses the right earphone) 1: Speaker 2: Status indicator 3: Microphone 4: Multifunction button 5: Earphone charging connectors 6: Sensor 7: Left/right label – 4 –... -
Page 5: Turning Power On/Off
8: Carrying case charging connectors 9: USB charging port (USB Type-C ® Turning power on/off Turn the earphones on by removing them from the carrying case, and turn them off by returning them to the case. Turning the earphones on and off with the multifunction button is not possible. On-ear detection sensors These earphones include on-ear detection sensors. -
Page 6: Wearing
Wearing These earphones are open-ear type. They are worn such that the speaker fits over the ear canal. Before putting them on, check which are the left and right earphones. Place the earphones over the ear from the front so that the speaker is above the ear canal. -
Page 7: Status Indicator Display
If the earphones are not put on completely, they may fall off. Ensure that the earphones are not put on the wrong ears. Status indicator display Color and pattern of status indicator Earphone status Two slow, light blue blinks Not connected to a device. (Power will automatically turn off af- ter approximately 5 minutes) Slow light blue blinking... - Page 8 The color of the status indicator during charging can be changed from green using the dedicated nwm Connect app. For details, see “nwm Connect App.” nwm Connect App – 8 –...
-
Page 9: How To Charge
How to charge Charging Before using your earphones for the first time, charge them using the included USB cable. 1. Remove the earphones from the carrying case, and peel away the protective stickers. – 9 –... - Page 10 2. Place the earphones in the carrying case. Place the earphones in the carrying case such that their charging connectors are aligned. 3. Connect the end (USB Type-C: (1)) of the included USB cable to the USB port on the carrying case.
- Page 11 5. The status indicator on the earphones will slowly blink green. (This can be checked even when the lid of the carrying case is closed) When the light remains on, charging is complete. <Note> n Before charging, ensure that you wipe the earphones with a dry cloth or similar prior to placing them in the carrying case.
- Page 12 <Note> n Before charging, ensure that you wipe the earphones with a dry cloth or similar prior to placing them in the carrying case. n Carry out charging of the earphones in a location away from direct sunlight and that is well ventilated (5°C/41°F to 40°C/104°F).
-
Page 13: How To Connect
How to connect Pairing Connecting these earphones to a Bluetooth device first requires that they be paired. This means that using the same Bluetooth device at a later date will not require pairing operations again. To pair with subsequent Bluetooth devices, or to switch between connected devices, see “Re-pairing.”... - Page 14 3. Turn on the power of the Bluetooth device (device to be connected), open its Blue- tooth settings screen, and search for the earphones. 4. When [nwm MBE001] is displayed on the screen of the device to be connected, select When a notification tone sounds in the earphones, pairing is complete.
-
Page 15: Re-Pairing
In order to reconnect a device that has had its pairing information deleted, perform pairing again. Pairing using the nwm Connect app Pairing can be performed using the dedicated nwm Connect app. For details, see “nwm Connect App.” nwm Connect App... - Page 16 Bluetooth connection. When the connection is lost, a notification tone will sound. 2. In the Bluetooth settings screen of the new device to be connected, select [nwm MBE001]. When the connection is complete, a notification tone will sound.
-
Page 17: How To Use
How to use Listening to music Operation will differ depending on the connected device. Also check the instruction manual for the device to be connected. 1. Remove the earphones from the carrying case. 2. Put the earphones on. 3. Connect the earphones to the device to be connected. If the device is the paired device, the earphones may automatically connect. - Page 18 4. Operate the multifunction button. Multifunction button operation Details Press the button on the right or left Play/Pause Single-click earphone once Press the button on the right or left Go to the next track or chapter Double-click earphone twice Press the button on the right or left Return to the start of the track or Triple-click earphone thrice...
-
Page 19: Calling
Calling Operation will differ depending on the connected device. Also check the instruction manual for the device to be connected. 1. Remove the earphones from the carrying case. 2. Put the earphones on. 3. Connect the earphones to the device to be connected. If the device is the paired device, the earphones may automatically connect. - Page 20 4. Operate the multifunction button. Multifunction button operation Details Press the button on the right or left Puts the earphones in a call state Single-click earphone once when there is an incoming call Toggles microphone mute on/off each time it is clicked during a call. Press the button on the right or left Declines the call when there is an Double-click...
-
Page 21: Using The Voice Assistant Function
Using the voice assistant function Use the microphone on the earphones for voice operation. Using the Google app Use the Google app, included with Android™ smartphones and devices, for voice opera- tions. 1. Enable the Google app. On Android™ OS smartphones, click “Settings,” then “Apps,” then select the gear icon dis- played on the upper right corner of the screen. - Page 22 3. Press and hold the multifunction button (on either the left or right earphone) for approximately 2 seconds until a beep sounds. Start Siri, and the start-up sound is heard. Use of the microphone on the earphones enables voice operation. * Depending on the specifications of the connected device, the operations above or opera- tions on the connected device may not be possible.
-
Page 23: Nwm Connect App
* Functions and designs may be changed without notice. Download the nwm Connect app Download the nwm Connect app from the Google Play Store or the App Store, and install it on your smartphone or tablet. For details of the nwm Connect app, see the following URL: https://www.nwm.global/en/app... -
Page 24: Troubleshooting
Troubleshooting Troubleshooting Ensure you read the instructions of the device to connect. Power does not turn on. l Charge the product. l Try resetting the product. I am unable to pair the earphones. l Keep the distance between this product and the Bluetooth device within 1 m. l On the Bluetooth device, delete the pairing information for these earphones, then try pairing the earphones again. - Page 25 l Increase the volume on the connected device. l Check that the earphones and the device are connected with HFP (or a call connec- tion). l After pairing between the earphones and the device to be connected is deleted, try pairing again.
-
Page 26: How To Reset
How to reset If the product does not turn on or off, if the Bluetooth connection cannot be made or canceled, or if there is any other problem with the product’s operation, reset the product. l Press and hold the multifunction button (on either the left or right earphone) for approx- imately 10 seconds. -
Page 27: Notifications
Notifications Precautions for use l Ensure you read the instruction manual of the device to connect. l NTT sonority, Inc. will in no way be held responsible if the memory of the device to connect is deleted. l When connecting, turn the volume on the connected device all the way down. Take care as the sound indicating that connection is complete may be loud. - Page 28 l Ensure that plugs are fully inserted. l Do not connect the USB connectors or cable if they have any water or foreign materials on them. Doing so may result in damage to the USB connector or USB cable such as corrosion, overheating, smoking, or fire, or in electric shock. l Ensure that the battery is recharged at least once every six months in order to preserve the built-in rechargeable battery.
-
Page 29: Bluetooth
Bluetooth l Bluetooth wireless technology can communicate up to a distance of 10 m line of sight, however the effective communication range may differ depending on obstacles (such as human bodies, metal objects, or walls) or radio wave interference. l Radio waves generated by Bluetooth devices may affect the operation of devices such as electronic medical equipment. -
Page 30: Trademarks
Trademarks l The Bluetooth word mark and logos are registered trademarks owned by Bluetooth ® SIG, Inc. and any use of such marks by NTT Sonority is under license. Other trade- marks and trade names are those of their respective owners. l Qualcomm aptX is a product of Qualcomm Technologies, Inc. -
Page 31: Warranty
Warranty The warranty period for this product is 12 months. Please see our website for details on the warranty conditions. * Consumers have legal rights based on domestic law that regulates the sale of con- sumer goods. These rights are not affected by this warranty. (Limited Warranty for –... -
Page 32: Main Specifications
Main specifications Main specifications Communication method: Bluetooth Standard Ver. 5.2 Output: Bluetooth Standard Power Class 1 Maximum communication distance: Line-of-sight distance, approx. 10 m *1 Usage frequency range: 2.4 GHz band (2.4000 GHz to 2.4835 GHz) *2 Modulation method: FHSS Supported Bluetooth profiles: A2DP, HFP, AVRCP Supported CODEC:... - Page 33 Accessories Carrying case USB cable (USB Type-A - USB Type-C ), 0.5 m ® Quick start guide Safety guide x 2 *1 Transmission distances are guidelines. Transmission distances may vary depending on the surrounding environment. *2 This product uses the 2.4 GHz frequency band. Interference from other wireless devices such as microwave ovens that use the 2.4 GHz band may cause interruptions in audio.
