Summary of Contents for Jurat SECUGEN UNITY 20

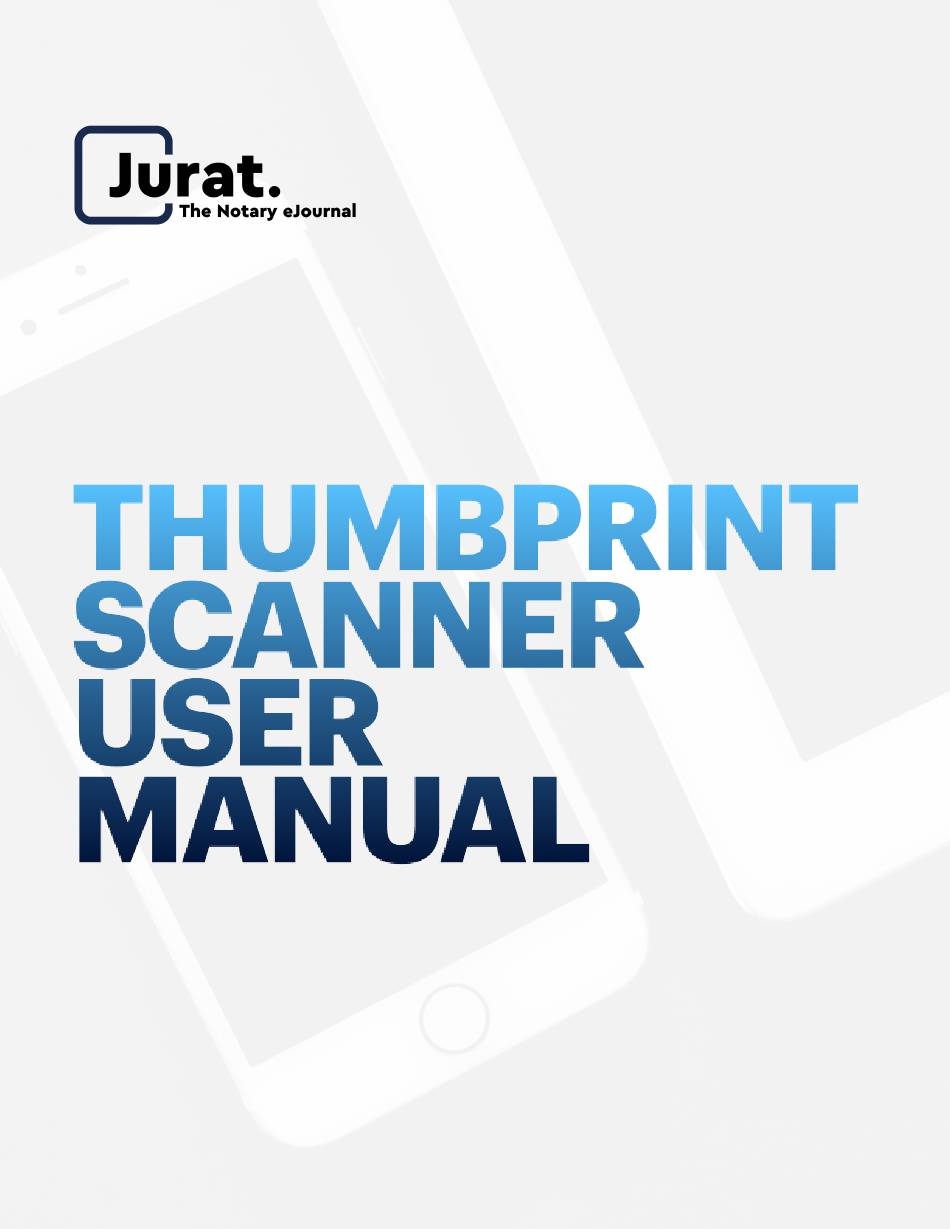

- Page 1 SECUGEN UNITY 20 BLUETOOTH DEVICE UPDATED MAY 2022...
-
Page 2: What's In The Box
WHAT’S IN THE BOX The box should contain, at minimum, the thumbprint scanner unit and a USB charging cable. INTRODUCTION TO THE UNIT The Unity 20 Bluetooth is a stand-alone fingerprint recognition system that combines a high-performance optical fingerprint reader and Bluetooth module in one device. The Unity 20 Bluetooth can capture fingerprints and transfer fingerprint data to a host device such as a smartphone, tablet PC, iPhone or iPad via the Bluetooth interface. -
Page 3: Led Indicators
POWER BUTTON OPERATION Initial Status Operation Results Powered OFF Long press - over 1.5 seconds Power on, ready to connect Powered ON Short press No response Powered ON/Bluetooth Ready Long press Power off Powered ON/Bluetooth Connected Long press Power off LED INDICATORS LED Window Color... - Page 4 HOW TO TEST THE BLUETOOTH READER IN THE APP Step 1 - Open the Notary eJournal, and click “Test Fingerprint Reader” from the side menu (Step 1 (a)). Your app should begin searching for your Bluetooth scanner (Step 1 (b)) Step 1 (a) Step 1 (b) Step 2 - Power on your device by pressing and...
- Page 5 Note - all pairing between the Notary eJournal and the bluetooth scanner happens within the app. Do NOT go in to your device’s settings and attempt to pair your Bluetooth scanner with your device outside of the Notary eJournal app. Step 3 - When you see the Bluetooth light on the scanner blinking the color blue, you should see the device pop-up on-screen within the app (Step 3 (a)).
- Page 6 Step 5 - Click “Test Fingerprint Capture”. The clear thumbprint panel should start to flash green. Have the person press their thumb down firmly until the light stops flashing and turns solid green (this should take roughly 3-5 seconds). The person can then remove their thumb while the download processes (this should take roughly 10-15 seconds) (Step 5 (a)).
- Page 7 Step 2 - Each signer that has been added to this entry (adding signers happens at step 2) will appear on step 5 with a name card and the option to add a fingerprint (image 1). While on this screen, turn on your bluetooth reader (same instructions as seen above in “How to test the Bluetooth reader in the app”) then click “add fingerprint”...
- Page 8 FINGERPRINT SCANNING TIPS Place the pad of your finger at the center of the censor - The pad is the fleshy part of the finger, located in the middle of the first segment. Be sure that the pad (not the tip) covers as much of the censor window as possible so that the core of your fingerprint can be scanned.
- Page 9 made of a hard, quartz-like material that resists scratches, etching, and damage from environmental elements. If you wish to clean the surface of the sensor window • You can safely use a tissue, paper towel or cloth to wipe down the window. To remove stubborn dirt, you can wipe the window with a cloth dampened with a soap solution.
-
Page 10: General Information
• Do not pour liquids directly onto the sensor or device, as the liquid might seep into the underlying components and cause damage. GENERAL INFORMATION Auto Power Off - If there is no user activity for 10 minutes, the batter status LED will turn on solid red for 2 seconds, and then the device will automatically power off...
