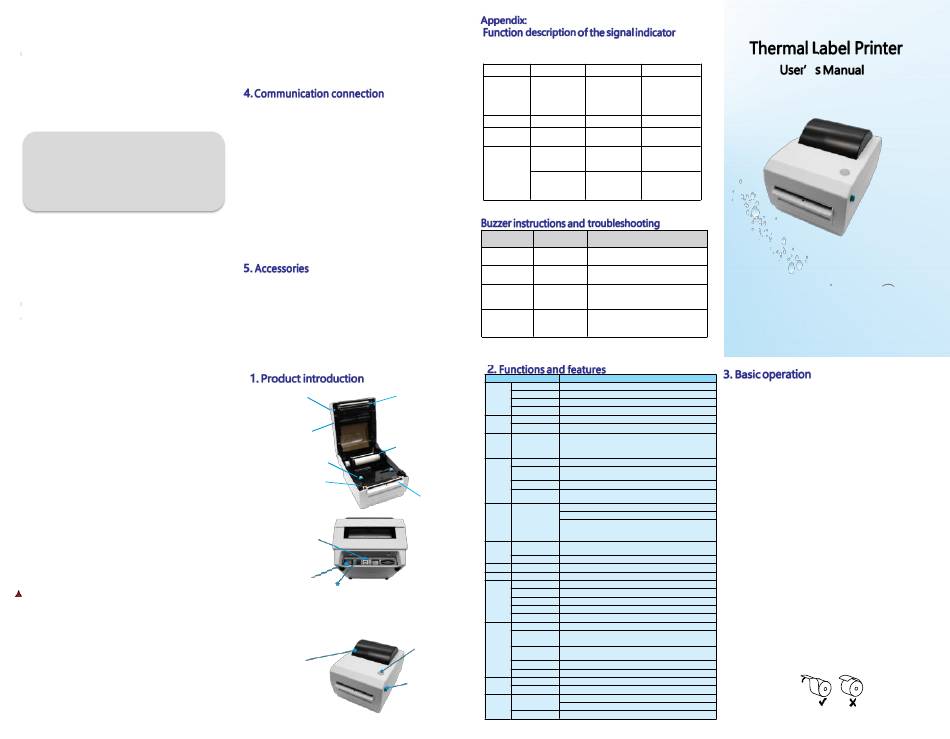

Shreyans CD410 User Manual

Contents of this manual without the permission of the
company shall not be free to change and replication,
we reserve the right to change the product, if user
needs the product further information can contact
directly with the supplier.
:
Attentions
1.The printer shall be placed on a flat and stable platform to avoid damage
caused by accidental fall.
2.The high environment temperature (>45℃) or the low temperature(<5℃)
will reduce the print quality.
3.The high humidity (>85%RH) or the low humidity (<20%RH) will reduce
the print quality.
4.Don't open the cover of paper bin in printing process.
5.Using low quality or storage too long time print paper will reduce the print
quality, even damage the printer.
6. If there is dirt at the print head, need to use a soft cotton or cotton swab
to dip alcohol and wipe it clean to prevent the print head from being worn.
7. Don't touch the print head and retainer directly in order to avoid
damaging the print head because of static electricity. Don't scratch or touch
the print head with a hardened object to avoid damaging the print head.
8.Please try to use up the battery before charging, which can effectively
protect the battery life.
9.In the course of any accident, please disconnect the printer power supply,
and remove the printer battery immediately.
10.If user disassemble the printer, the company has the right to refuse
warranty on the product.
The printer uses a thermistor to detect the temperature of the print
head. If the print head overheat, the circuit will cut off the print head
and stop printing. The print head is protected by overheating at 80℃.
Storage Precautions:
1. If the printer is not used for a longer time, disconnect the power to the
printer power adapter.
2. Ordinary thermal printing paper storage time is short. If you want to print
documents that need preservation for a long time, please choose long-term
thermal printing paper.
3. Heat-sensitive printing paper should not be stored in a place with high
temperature, high humidity, or direct sunlight. If it has been unsealed, please
put it in a place to avoid light.
3.6 Label model switching (black mark / label model)
This product is compatible with black mark mode and label mode, if you
need to set the black mark mode, load the black mark paper and press
down the FEED button for 5s, then the printer can automatically learn the
black mark paper (the side with black mark facedown), otherwise switch
the label mode, put the label paper and press down the FEED button for
5s to release that can automatically learn the label paper.
4.1 Wireless connection (Bluetooth)
This series of printers is equipped with a stable wireless connection
mode, (SPP / BLE). Bluetooth SPP can support communication printing
with mobile terminals installing Android operating system, and Bluetooth
BLE can support communication printing with mobile terminals installing
Apple iOS operating system.
Bluetooth connection method: After the printer is turned on, search the
printer with Android and other Bluetooth communication devices, select
the corresponding printer, enter the password (factory default: 0000) for
connection, and it can be used normally after successful connection.
Description: The interface is optional, please refer to the actual product purchased
4.2 Wired connection (USB or serial interface)
Use the data cables packed with the printer to connect the printer to the
PC, and then install the printer driver. The printer driver can be gotten
from the attached CD or requested from suppliers or our customer service
personnel.
Description: The interface is optional, please refer to the actual product purchased.
Printer 1 pc
USB cable 1 pc
Power adapter 1 pc
Power cord 1 pc
User's manual 1 pc
Description: The specific product accessories may differ from this list. Please take the actual product
purchased as. If you have any questions, please consult your supplier timely.
Open paper bin button
TPH
The shell
he paper guide
T
Paper width
adjuster
Rubber roller
label separator
USB (Type-B
interface
)
Switch
Power
Feed button/
Indicator
Paper bin
cover
cover
Open paper
bin button
This printer has 2 indicators to remind the user of the status of the
printer. Details are as follows:
operate Printer status Blue indicator Red indicator
Flash(with
bluetooth)
Power on ON
ON(without
bluetooth)
Power off OFF OFF
/ Error OFF
Bluetooth
ON
connected
Connect to
Bluetooth
Bluetooth
Flash
disconnected
。 。
Buzzer State description Solutions
Beep 3 sounds Out of paper Load paper correctly
The print head is Wait for the printer to cool down and
Beep 5 sounds
overheated continue working
Beep 6 sounds Cover opened Close the cover correctly
Open the top cover, load the paper
Label calibration
Beep 8 sounds
then close the cover, automatically
anomaly
learn the label paper
Items Parameter
Print method Thermal dot line printing
Resolution 203DPI, 8dots/mm
Print
parameters
Print width 108mm (864dots)
Print speed 150mm/s
Wired Standard USB, Type-B interface
Communic
Wireless Bluetooth (optional), SPP (Android), BLE (Apple iOS)
ation
/ JPL / TSC / TSPL / EPL / CPCL / ESC Compatible instruction Set
RAM 512KB
Storage
FL ASH FLASH: 16MB, NV bitmap FLASH: 64KB
Chinese GB18030
Characters and
ASCII
figures
Characters
User defined Support
Language (Code Support simplified & traditional Chinese, English and other 45 kinds
page) of international character sets.
Support dots printing with different densities
Support raster bitmap print
Support to download the bitmap print, the maximum size of each
Tables /
bitmap is not
more than 64K, the total size of the download bitmap is 64K.
UPC-A、UPC-E、EAN-8、EAN13、CODE39、ITF、CODEBAR、
1 D
CODE128、CODE93
Barcode
QR Code
2 D
Detection Sensor Paper out, Cover open, label gap detection
Indicators LED Power indicator, Bluetooth indicator, error indicator
Type Standard thermal label paper
Width 108mm
Printing Thickness 0.056~0.15mm (thermal label paper)
Paper
External diameter Maximum 100mm
Paper loading Easy to load paper structure
Paper tore
manual
Operating
Temperature: -10℃ ~ 50℃, Humidity: 25% ~ 80%R H
environment
Physical
Storage
characterist Temperature: -40℃ ~ 70℃, humidity: <93%RH (40℃)
environment
ics
Size 226.66mm *178.6mm *160.76mm (Length* Wide*High)
Weight 1.2Kg (Printer-only)
TPH life 50Km
Reliability
Motor life 360,000 hours
Windows (WIN 10/WIN 8/WIN 7//Vista /XP /2000)
Drivers
UBUNTU 12.04 32/64 UBUNTU 14.04 32/64
Software
APP Easy Label, Printer setting tools, etc
OFF
OFF
ON
OFF
OFF
3.1 Power on
Connect the power cord and power adapter of the printer, press down the
power switch, then the printer power on. At this time, the power indicator is
on, and the buzzer prompts a beep.
3.2 Power off
When the printer on, press down the switch that can make printer off. At this
time, all the indicators off, and the printer off and stops working.
3.3 Automatic label learning
In power on and cover open status, load down the thermal label roll, close
the cover, then the printer will automatically learn to detect the label gap.
3.4 Print self-test page
After the user gets the printer, the printer can be self-test to detect the
current settings and working status. When the printer is power off and the
print paper is loaded correctly, press down the "Power on/off" button and
"Feed" button simultaneously, after hearing a beep sound, release the two
buttons, the printer will print a self-test page. The self-test page contains
information about the current status of the printer, settings and printing
examples, such as the Bluetooth PIN, Bluetooth BDA, printing language,
program version, font, etc.
3.5 Feeding paper (Manual feed)
In the normal working status, press the "Feed" button, the printer will
feed paper.
Loading direction of paper roll
