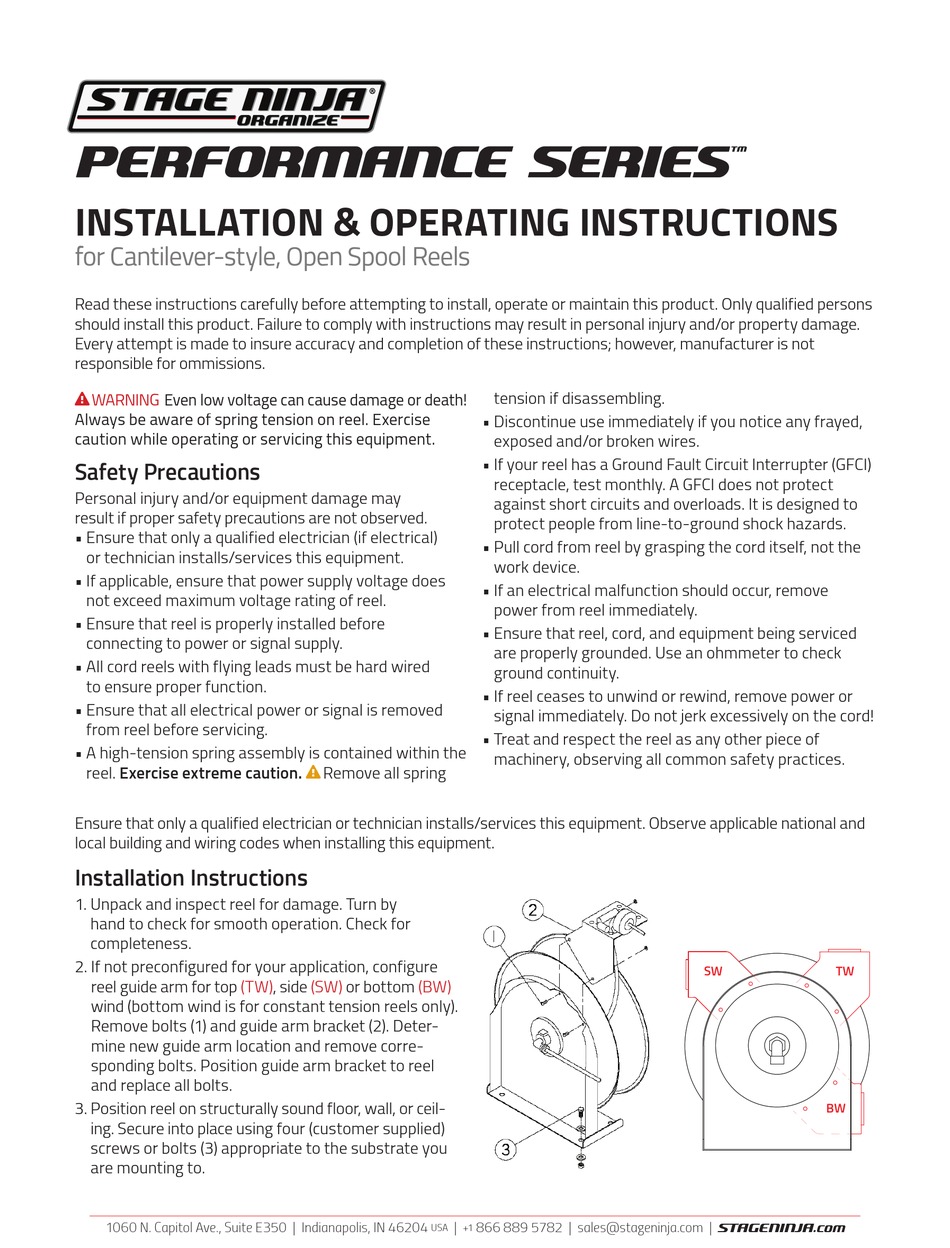

STAGE NINJA Performance Series Installation & Operating Instructions

INSTALLATION & OPERATING INSTRUCTIONS
for Cantilever-style, Open Spool Reels
Read these instructions carefully before attempting to install, operate or maintain this product. Only qualified persons
should install this product. Failure to comply with instructions may result in personal injury and/or property damage.
Every attempt is made to insure accuracy and completion of these instructions; however, manufacturer is not
responsible for ommissions.
WARNING Even low voltage can cause damage or death!

Always be aware of spring tension on reel. Exercise
caution while operating or servicing this equipment.

Safety Precautions

Personal injury and/or equipment damage may
result if proper safety precautions are not observed.
• Ensure that only a qualified electrician (if electrical)
or technician installs/services this equipment.
• If applicable, ensure that power supply voltage does
not exceed maximum voltage rating of reel.
• Ensure that reel is properly installed before
connecting to power or signal supply.
• All cord reels with flying leads must be hard wired
to ensure proper function.
• Ensure that all electrical power or signal is removed
from reel before servicing.
• A high-tension spring assembly is contained within the
reel. Exercise extreme caution.
Ensure that only a qualified electrician or technician installs/services this equipment. Observe applicable national and
local building and wiring codes when installing this equipment.

Installation Instructions

1. Unpack and inspect reel for damage. Turn by
hand to check for smooth operation. Check for
completeness.
2. If not preconfigured for your application, configure
reel guide arm for top (TW), side
wind (bottom wind is for constant tension reels only).
Remove bolts (1) and guide arm bracket (2). Deter-
mine new guide arm location and remove corre-
sponding bolts. Position guide arm bracket to reel
and replace all bolts.
3. Position reel on structurally sound floor, wall, or ceil-
ing. Secure into place using four (customer supplied)
screws or bolts (3) appropriate to the substrate you
are mounting to.
1060 N. Capitol Ave., Suite E350 | Indianapolis, IN 46204
• Discontinue use immediately if you notice any frayed,
• If your reel has a Ground Fault Circuit Interrupter (GFCI)
• Pull cord from reel by grasping the cord itself, not the
• If an electrical malfunction should occur, remove
• Ensure that reel, cord, and equipment being serviced
• If reel ceases to unwind or rewind, remove power or
• Treat and respect the reel as any other piece of
Remove all spring

(SW) or bottom (BW)
| 866 889 5782 | sales@stageninja.com |
USA +1
tension if disassembling.
exposed and/or broken wires.
receptacle, test monthly. A GFCI does not protect
against short circuits and overloads. It is designed to
protect people from line-to-ground shock hazards.
work device.
power from reel immediately.
are properly grounded. Use an ohmmeter to check
ground continuity.
signal immediately. Do not jerk excessively on the cord!
machinery, observing all common safety practices.
SW TW
BW
