Summary of Contents for HELSEL DRONEPANG

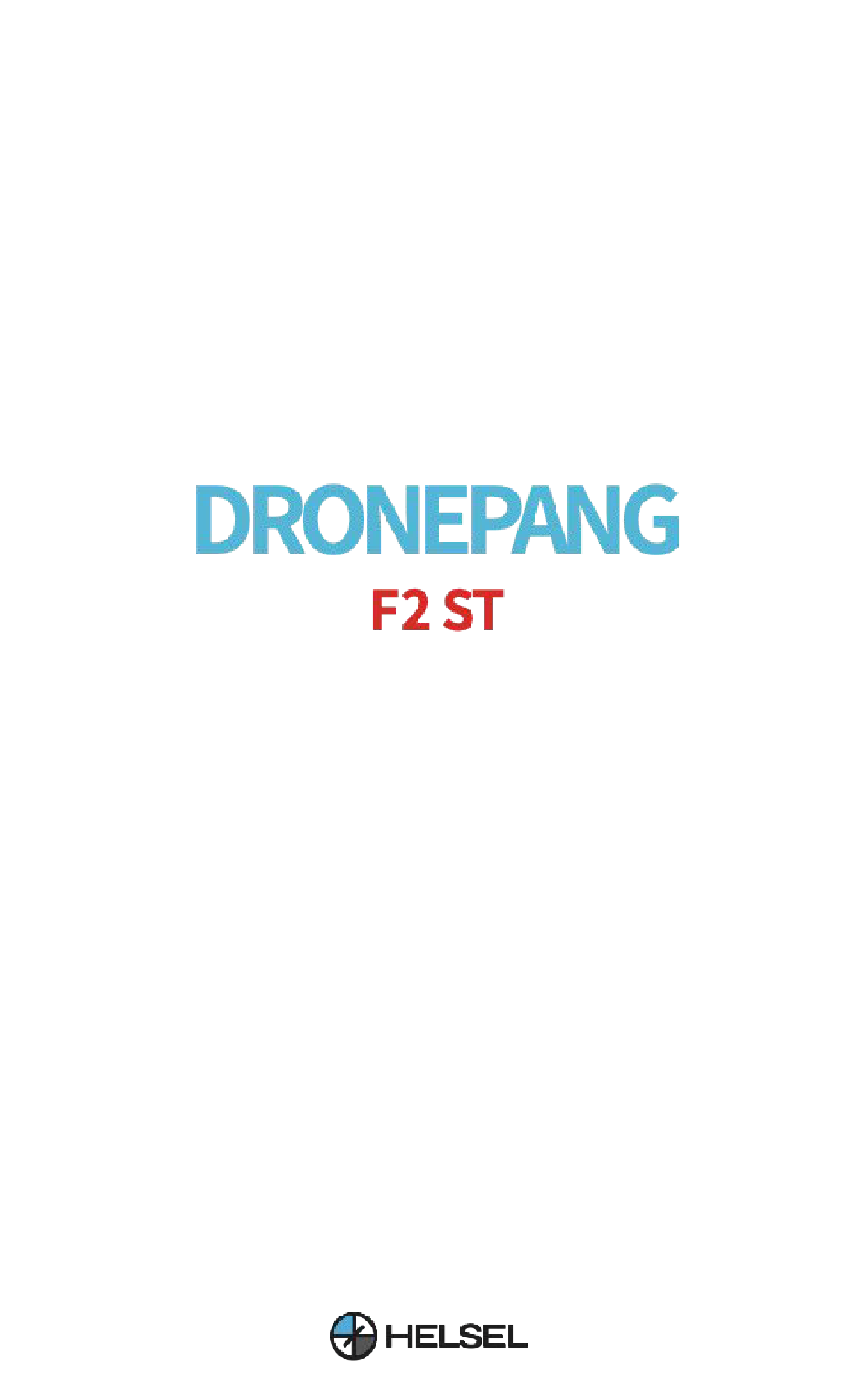

  • Page 1 USER MANUAL...
  • Page 2 F2 ST USER MANUAL  Contents 1. CAUTION 2. COMPONENTS 3. INFORMATION & INSTRUCTIONS 01) Main Frame 02) Controller 03) Charger 04) Safety Precautions 05) Turn Controller on & off 06) IMU reset 07) Starting the Motors 08) Stopping the Motors 09) Controller modes 10) Altitude hold mode 11) Headless Mode 12) Speed Mode 13) ONE Button take off &...
  • Page 3 ※ In altitude hold flight mode, high-intensity shocks can cause errors in altitude hold functions, resulting in high jumps and loss of control. ※ Re-calibrate the IMU after entering drone altitude hold mode or landing the drone. ※ The 'Dronepang F2ST' can only be used for 3S (11.1V) lithium batteries.
  • Page 4 F2 ST USER MANUAL 2. COMPONENTS ❶ ❷ ❸ ➍ ❺ ❻ ❼ ❽ ❾ ❿ ③ ① DRONEPANG F2 ② CIRCULAR PROPELLER(CW,CCW STANDARD BADGE x2 x2 SET ⑥ VELCRO HOOK x1 ⑤ CABLES, ④ BATTERY LOOP x6 CONNECTOR LONG x1 ⑦...
  • Page 5  Contents 3. INFORMATION & INSTRUCTIONS STEP. 01 MAIN FRAME UPPER SHELL LOWER SHELL Front MOTER PROPELLERS GUARD Back Front PROPELLERS Back PROPELLER ROTATION DIRECTION...
  • Page 6  Contents F2 ST USER MANUAL STEP. 02 CONTROLLER CH6(SwB) CH7(SwC) CH5(SwA) CH5(SwA) CH5(SwA) CH8(SwD) CH5(SwA) CH5(SwA) CH5(SwA) CH5(SwA) POWER POWER SWITCH SWITCH HANDLE Key2(CH10) Key1(CH9) BATTERY COVER PS/2 USB PORTS PORTS...
  • Page 7 2S BALANCE PORT PRODUCT INFORMATION It is a ST450 100-240V AC balance charger used in Dronepang F2ST. It can charge 2-4 cell LiPo, LiFe, and LiHV batteries in balance mode. It can charge up to 4A with a 500W power supply, and the user can easily select and charge depending on the capacity of the battery among the four A/2A/3A/4A amps.
  • Page 8  Contents F2 ST USER MANUAL 4. Use the left slider to set the voltage to charge. Voltage can be set from 1A (1000mA) to 4A (4000mA). The recommended charging speed is 1C. (Battery Capacity = Charging Voltage) 1C is Total Capacity = Charging Voltage. 5.
  • Page 9  Contents SAFETY FOR FLY STEP. 04 Only fly in an open space Keep within line of sight Fly at a height below 80m When flying ensure that the drone is kept away from other people, trees, electric wires, buildings, airports or signal transmitting tower etc. Ensure that the weather conditions are suitable for flying.
  • Page 10 STEP. 06 STANDBY & IMU RESET (before flight) 1. After powering on the controller, connect the battery to the 'Dronepang F2 ST' and hold it horizontally with the power on, then lower the left and right sides of the controller simultaneously to the lower right corner for more than 3 seconds.

  • Page 11: Step. 08 Motor Stop

     Contents MOTER START(Left throttle/Mode2) STEP. 07 There are two ways to start the motor. 1) Move the left throttle stick to the lowest position as shown in Figure 1 and lower the toggle key [CH8 (SwD)] as shown in Figure 2 to start the motor immediately. 2) Lowering the toggle key [CH8 (SwD)] as shown in Figure 2 and moving the left throttle stick down as shown in Figure 1 will immediately start the motor.

  • Page 12: Controller Modes

     Contents F2 ST USER MANUAL STEP. 09 CONTROLLER MODES To set modes 1 and 2 On the controller screen, press button, press SYS, and select Sticks mode to set M1 or M2. When you need Mode 1(Right throttle) then press M1 or when you need Mode 2(Left throttle) then press M2.(Default : Mode 2) FORWARD FORWARD...

  • Page 13: Headless Mode

     Contents HEADLESS MODE STEP. 11 *The headless mode can be turned on and off using the toggle key [CH6(SwB)].. 1. Position the drone so that the pilot and the drone face the same direction. (Make sure that the back LED of the drone looks at the pilot and release it after the binding is complete.) 2.

  • Page 14: One Button Take Off & Landing

    * Automatically take off in about 2 seconds for safety. BACK TO FLY STEP. 14 If 'Dronepang F2 ST' is flipped, refer to the following methods: A. Turn off the Altitude hold mode. B. Set the speed to step 3. C. MOTOR ON D.
  • Page 15 Check the connection status and connection. connect in the correct direction. Make sure that the Fly within a radius of 200M. It is • Dronepang distance from the recommended to fly in-view in an doesn't controls is within the indoor environment that is not blocked.
  • Page 16 Turn on the altitude mode hold mode. Check and replace. Check the propeller for damage. It's soaring in altitude hold If the Dronepang is shaken and Please power cycle and mode shocked too much, try again. The motor does Replace the motor.

  • Page 17: Specifications & Information

    R-R-cdr-DF2ST MSIP-CRM-cdr-STTX10S HELSEL http://www.helsel.co.kr http://www.helselgroup.com This document is a Korean manual for dronepang F2ST, and we inform you that all copyrights are in Helsel Co., Ltd. Unauthorized reproduction and modification are prohibited, and legal action can be taken if caught.

This manual is also suitable for:

F2 st
