Summary of Contents for hakel ISOLGUARD HIG93

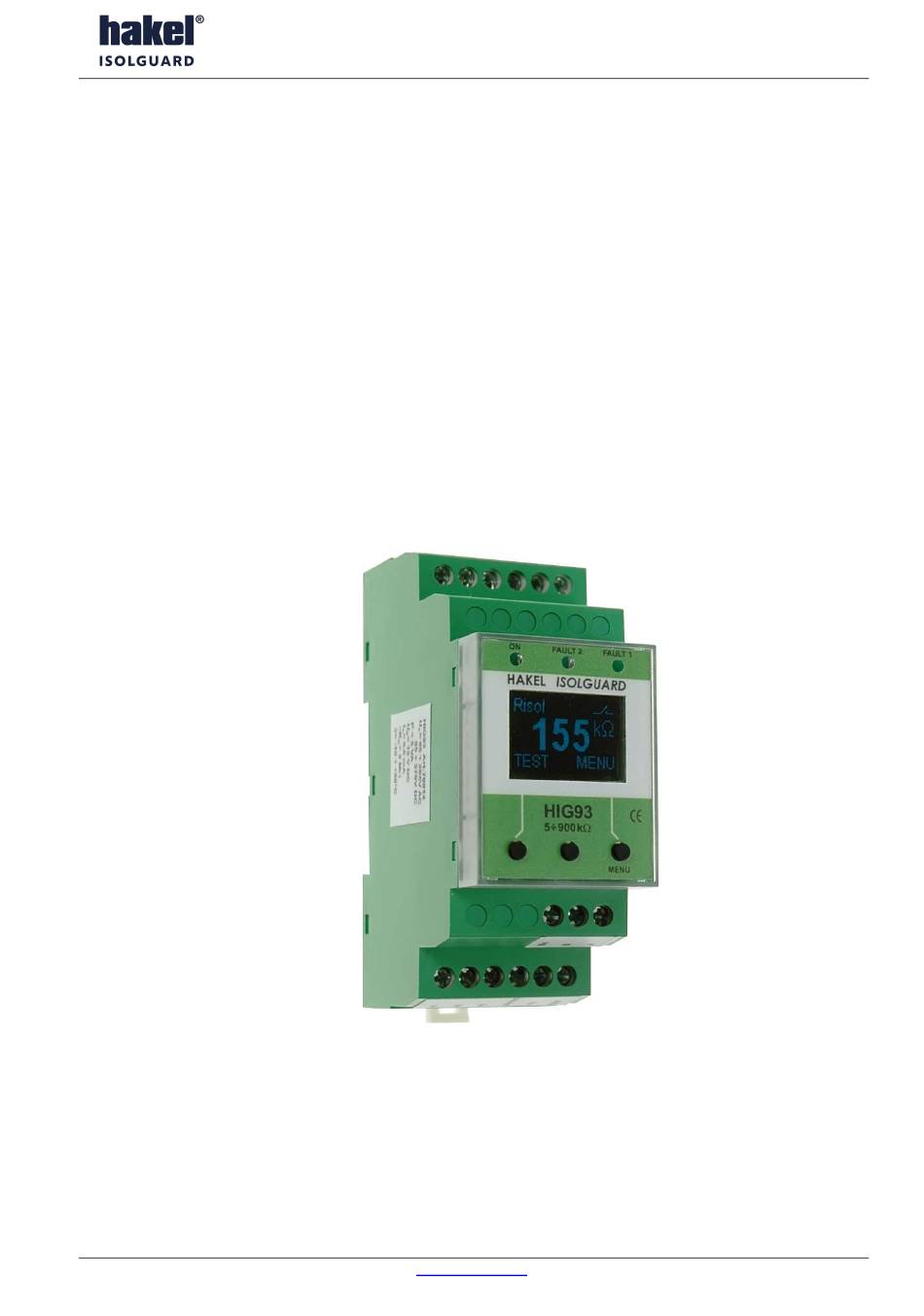

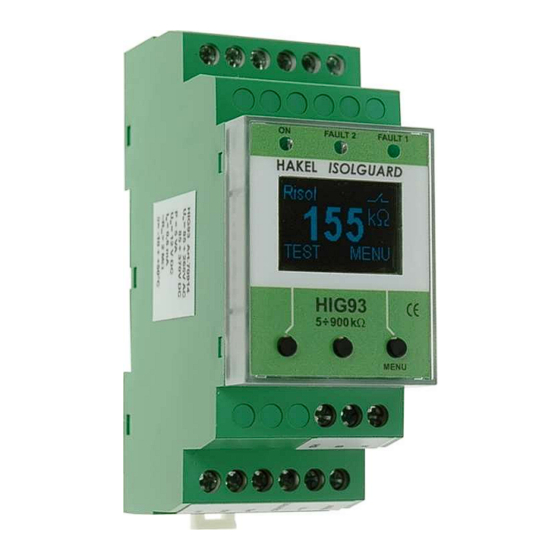

- Page 1 ISOLGUARD HIG93, HIG93/L, HIG94 V5.8/23 Insulation monitoring device ISOLGUARD HIG93, HIG93/L, HIG94 Operating instructions Document’s name: DOK-70915-V5.8 HAKEL spol. s r.o. Hradec Králové www.hakel.com Page 1 / 15...
-
Page 2: Table Of Contents
ISOLGUARD HIG93, HIG93/L, HIG94 V5.8/23 Content ISOLGUARD I HIG93, HIG93/L, HIG94 ................3 NSULATION MONITORING DEVICES ISOLGUARD HIG93, HIG93/L, HIG94 ..................3 ARIANTS OF DEVICES ..............................3 ASIC CHARACTERISTICS ISOLGUARD HIG93, HIG93/L, HIG94 ................... 4 TECHNICAL CHARACTERISTICS HIG93, HIG93/L, HIG94 .................. -
Page 3: Isolguard Insulation Monitoring Devices Hig93, Hig93/L, Hig94
TL inductors produced by HAKEL. Such a created centre is connected to the terminal of insulation monitoring device HIG93, HIG93/L or HIG94. Insulation monitoring devices enable to display the numeric value of the measured insulation resistance, then there are buttons for setting device parameters and signalling LED diodes to display the status of monitored power supply system and of the device. -
Page 4: Isolguard Hig93, Hig93/L, Hig94 Technical Characteristics
ISOLGUARD HIG93, HIG93/L, HIG94 V5.8/23 ISOLGUARD HIG93, HIG93/L, HIG94 technical characteristics Type HIG93 HIG93/L HIG94 Monitored IT power supply system type Maximum IT power supply system operating voltage 275 V∼ (without external inductor) Nominal supply voltage 230 V∼ Supply voltage range 90 to 265 V∼... -
Page 5: Hig93, Hig93/L, Hig94 Controls And Connecting Terminals
Relay FAULT1 (FAULT2) is released, when the device is connected to the power supply, is functional (the indicator lamp ON glimmers slightly) and insulation status fault FAULT1 (FAULT2) is indicated. HAKEL spol. s r.o. Hradec Králové www.hakel.com Page 5 / 15... - Page 6 12. This line may be also connected with a remote monitoring module MDS-D with display. Note: Terminals +12V and TEST are exclusively intended for connection of the test push-button. These terminals cannot be used for connection of any other devices. HAKEL spol. s r.o. Hradec Králové www.hakel.com Page 6 / 15...
-
Page 7: Recommended Connection Of Hig93, Hig93/L, Hig94 To The Monitored It Power Supply System
HAKEL ISOLGUARD HIG93/94 TL400 MENU RS485 Nadřízený systém ISOLGUARD (PC, PLC) Napájení Rtl.ext. TEST 230 V AC Picture 3: Connection of HIG93/94 device in the 3-phase IT power supply HAKEL spol. s r.o. Hradec Králové www.hakel.com Page 7 / 15... -
Page 8: Information On The Display
Releasing the FAULT1 or FAULT2 relay is realized by the middle push-button on the device or by the RS485 ISOLGUARD communication line RS485 order. FAULT1 or FAULT2 relay status change, eventually initiation and termination the device test is indicated by a short display flash. HAKEL spol. s r.o. Hradec Králové www.hakel.com Page 8 / 15... -
Page 9: Displayed Information Hig93, Hig93/L, Hig94
ESC/SET, pressing this push-button shortly ends setting procedure and R value remains crit unchanged. Both R values can be set independently in the whole value range. crit1 crit2 HAKEL spol. s r.o. Hradec Králové www.hakel.com Page 9 / 15... - Page 10 HAKEL inductors are as follows: TL400 4,5 kΩ, TL500 4,5 kΩ, TL600 4,5 kΩ, TL1600 12,5 kΩ, TL6003 19,6 kΩ. Exact values may be obtained by measuring the inductor’s winding resistance with interconnected L outlets at the operational temperature of the inductor.
-
Page 11: Insulation Resistance Fault Evaluation
No FAULT2 No FAULT2 tON=0 Time Time FAULT1 FAULT1 No FAULT1 No FAULT1 tON=0 Time Time Picture 6: Insulation status fault evaluation with time t or hysteresis zero value HAKEL spol. s r.o. Hradec Králové www.hakel.com Page 11 / 15... -
Page 12: Communication Protocol
For ISOLGUARD system PC computer or programmable logic controller with RS485 line can be used as a MASTER station. Also, remote monitoring module MDS-D/66 with protection degree IP66 from HAKEL production may be used. This module allows remote displaying of measured values and set parameters and also data transferring to the user’s master system. -
Page 13: Data Transmitted Via Rs485 Bus
Data transmitted via RS485 bus HIG93, HIG93/L, HIG94 devices communicate on the RS485 bus by using the ISOLGUARD communication protocol. This protocol was designed by HAKEL as a universal command system for reading data from insulation monitoring devices of HIG9x series and additional products. -
Page 14: Hig93, Hig93/L, Hig94 Parameters Factory Settings
FAULT FAULT FAULT Table 6: Factory values of device’s parameters Note: Parameters meaning of RS485 line is given in communication protocol description. 10. Device dimensions Picture 9: Device dimensions HAKEL spol. s r.o. Hradec Králové www.hakel.com Page 14 / 15... -
Page 15: 11. Device Installation
13. Producer Producer of HIG93/94 insulation monitoring device is HAKEL spol. s r. o., Bratří Štefanů 980, 500 03 Hradec Králové Czech Republic www.hakel.com HAKEL spol. s r.o. Hradec Králové www.hakel.com Page 15 / 15...
