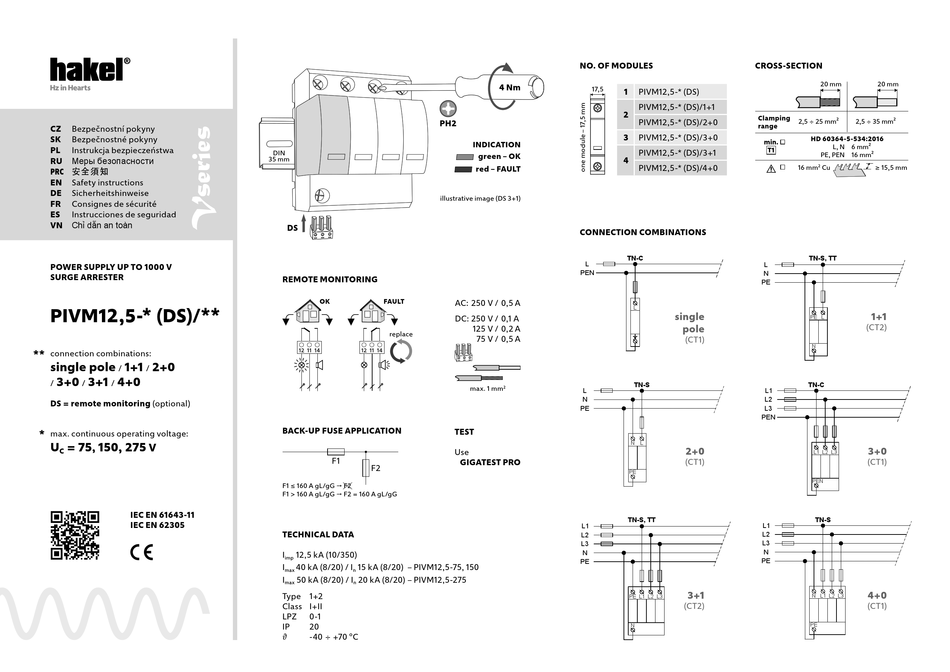

hakel V Series Quick Start Manual

CZ Bezpečnostní pokyny
SK Bezpečnostné pokyny
PL
Instrukcja bezpieczeństwa
RU
Меры безопасности
PRC 安全 須 知
EN
Safety instructions
DE Sicherheitshinweise
FR Consignes de sécurité
ES Instrucciones de seguridad
VN
Chỉ dẫn an toàn
POWER SUPPLY UP TO 1000 V
SURGE ARRESTER
PIVM12,5-* (DS)/**
**
connection combinations:
single pole 1+1 2+0
/ /
3+0 3+1 4+0
/ / /
DS = remote monitoring (optional)
*
max. continuous operating voltage:
U = 75 150, 275
, V
C
IEC EN 61643-11
IEC EN 62305
PH2
DIN
35 mm
illustrative image (DS 3+1)
DS
REMOTE MONITORING
OK FAULT
replace
12 11 14 12 11 14
BACK-UP FUSE APPLICATION
F1
F2
F1 ≤ 160 A gL/gG → F2
F1 > 160 A gL/gG → F2 = 160 A gL/gG
TECHNICAL DATA
I 12,5 kA (10/350)
imp
I 40 kA (8/20) / I 15 kA (8/20) – PIVM12,5-75, 150
max n
I 50 kA (8/20) / I 20 kA (8/20) – PIVM12,5-275
max n
Type 1+2
Class I+II
LPZ 0-1
IP 20
-40 ÷ +70 °C
J
NO. OF MODULES
4 Nm
17,5
1
2
3
INDICATION
green – OK
4
red – FAULT
CONNECTION COMBINATIONS
TN C
L
P N
AC: 250 V / 0,5 A
L
DC: 250 V / 0,1 A
125 V / 0,2 A
75 V / 0,5 A
max. 1 mm
2
L
N
P
TEST
N
Use
GIGATEST PRO
P
TN-S, TT
L
L2
L3
N
PE
PE
N
CROSS-SECTION
PIVM12,5-* (DS)
PIVM12,5-* (DS)/1+1
Clamping
PIVM12,5-* (DS)/2+0 2,5 ÷ 25 mm²
range
PIVM12,5-* (DS)/3+0
HD 60364-5-534:2016
min.
T1
PIVM12,5-* (DS)/3+1
PIVM12,5-* (DS)/4+0
16 mm
TN-S, TT
L
N
P
single
P
pole
(CT1)
N
TN S TN C
L
L2
L3
PEN
L
2+0
L
(CT1)
PEN
L
L2
L3
N
PE
3+1
N
L L2 L3
(CT2)
PE
20 mm 20 mm
2,5 ÷ 35 mm²
L, N 6 mm²
PE, PEN 16 mm²
Cu ≥ 15,5 mm
2
1+1
L
(CT2)
3+0
L2 L3
(CT1)
TN S
4+0
L L2 L3
(CT1)
