Summary of Contents for Dusol DS36 Series

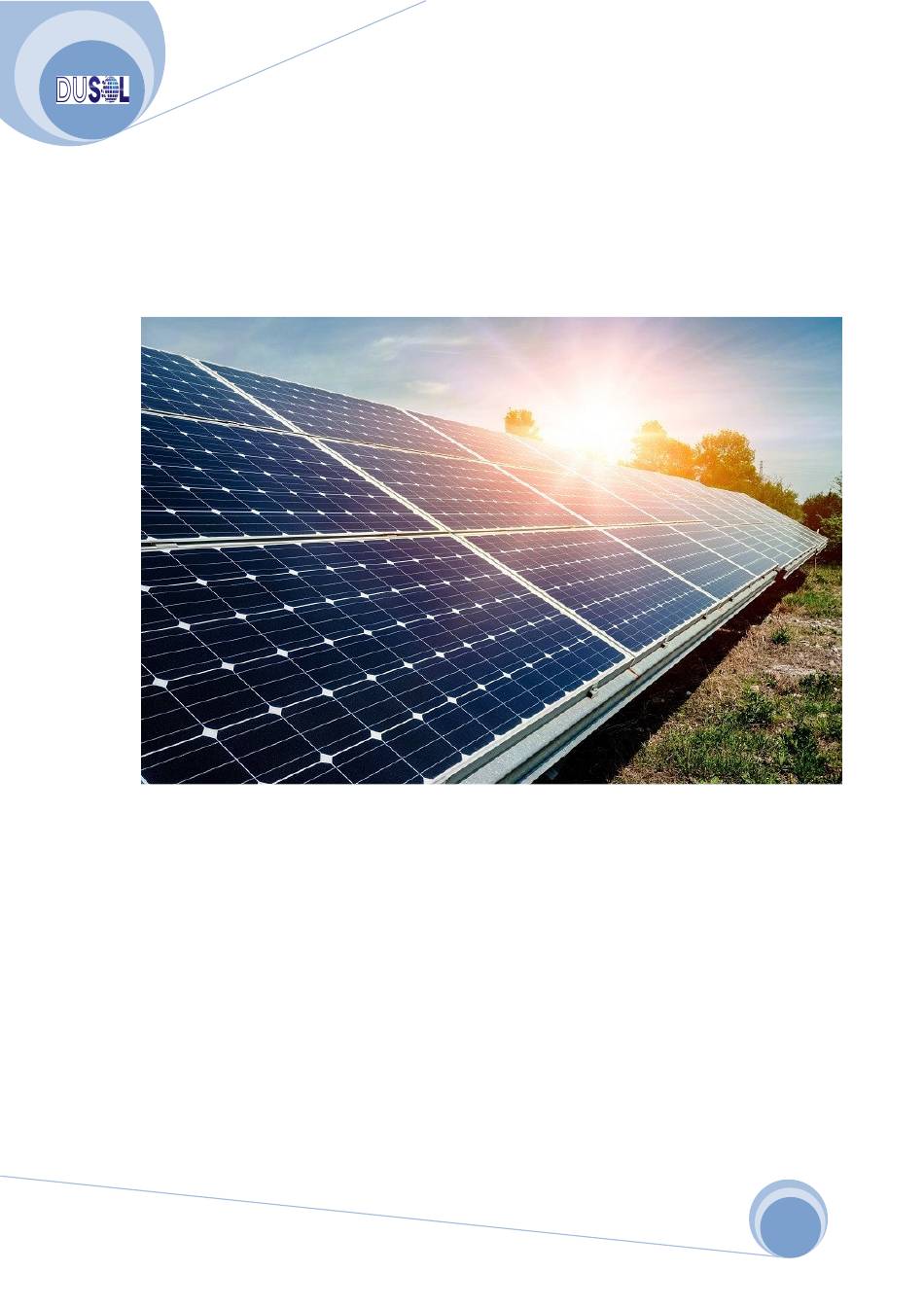

- Page 1 DUSOL Solar Photovoltaic module MADE IN DUBAI User Manual Mono & Multi Solar PV module DS36 series Solar PV module DS60 series Solar PV module DS72 series...
-
Page 2: Table Of Contents
DUSOL Solar Photovoltaic module MADE IN DUBAI Index of contents CHAPTER 1. General Information 1.1 Over view 1.2 Introduction 1.3 Applicable Products 2. Basic safety instructions 3. Installation 3.1 Installation safety 3.2 Installation Condition 3.2.1 Climate condition 3.2.2 Site selection 3.2.3 Tilt angle selection... -
Page 3: General Information
MADE IN DUBAI 1. General Information 1.1 Over view Thanks for choosing DUSOL Solar PV modules. In order to ensure the PV modules to be installed correctly, please read the following operation instructions carefully before installing and using the modules. -
Page 4: Basic Safety Instructions
DUSOL Solar Photovoltaic module MADE IN DUBAI 2. Basic safety instructions PV modules generate DC electrical energy when exposed to sunlight or other light sources. Active parts of module such as terminals can result in burns, sparks, and lethal shock Artificially concentrated sunlight shall not be directed on the module or panel. -
Page 5: Installation
DUSOL Solar Photovoltaic module MADE IN DUBAI Once the PV module has been shipped to the installation site, all of the parts should be unpacked properly with care. Do not stand or step on the PV module, this is prohibited and there is a risk of damage the module and cause injury for you. -
Page 6: Installation Condition
3.2.2 Site selection In most applications, DuSol solar PV modules should be installed in a location where they will receive maximum sunlight throughout the year. In the Northern Hemisphere, the module should typically face south, and in the Southern Hemisphere, the modules should typically face north. -
Page 7: Tilt Angle Selection
DUSOL Solar Photovoltaic module MADE IN DUBAI outdoors, it should be placed in an insulated and ventilated battery case specifically designed for the purpose. Do not install the PV module in a location where it would be immersed in water or continually exposed to water from a sprinkler or fountain etc. -
Page 8: Fixation With Clamps (At Long Side Or Short Side)
DUSOL Solar Photovoltaic module MADE IN DUBAI 4.1 Fixation with clamps (at long side or short side Fixation with clamps (at long side or short side) The module clamps should not come into contact with the front glass and must not... -
Page 9: Wiring And Connection
DUSOL Solar Photovoltaic module MADE IN DUBAI 5. Wiring and connection a) Make wiring by Multi-connecting cables between the PV modules in series or parallel connection, which is determined by user’s configuration requirement for system power, current and voltage. b) PV module connected in series should have similar current. Modules must not be connected... -
Page 10: Maintenance And Care
1.25 when determining component voltage ratings, conductor current ratings, fuse sizes, and size of controls connected to the PV output. Please refer DuSol catalogue for more electrical characteristics of PV products at STC and the tolerance of Isc,Voc,Vmp and Imp is+15% & -5%. -
Page 11: Disclaimer Of Liability
No responsibility is assumed by DuSol for any infringement of patents or other rights of third parties, which may result from use of the PV product.. NO license is granted by implication or otherwise under any patent or patent rights.
