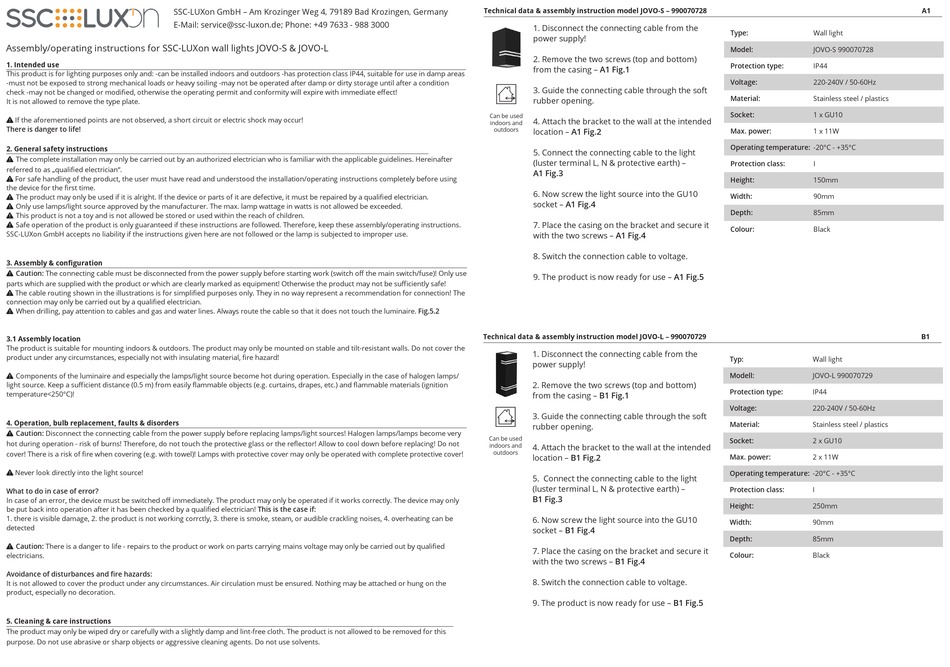

SSC-LUXon JOVO-S Assembly & Operating Instructions

SSC-LUXon GmbH – Am Krozinger Weg 4, 79189 Bad Krozingen, Germany
E-Mail: service@ssc-luxon.de; Phone: +49 7633 - 988 3000
Assembly/operating instructions for SSC-LUXon wall lights JOVO-S & JOVO-L
1. Intended use
This product is for lighting purposes only and: -can be installed indoors and outdoors -has protection class IP44, suitable for use in damp areas
-must not be exposed to strong mechanical loads or heavy soiling -may not be operated after damp or dirty storage until after a condition
check -may not be changed or modified, otherwise the operating permit and conformity will expire with immediate effect!
It is not allowed to remove the type plate.
 If the aforementioned points are not observed, a short circuit or electric shock may occur!
There is danger to life!
2. General safety instructions
 The complete installation may only be carried out by an authorized electrician who is familiar with the applicable guidelines. Hereinafter
referred to as „qualified electrician".
 For safe handling of the product, the user must have read and understood the installation/operating instructions completely before using
the device for the first time.
 The product may only be used if it is alright. If the device or parts of it are defective, it must be repaired by a qualified electrician.
 Only use lamps/light source approved by the manufacturer. The max. lamp wattage in watts is not allowed be exceeded.
 This product is not a toy and is not allowed be stored or used within the reach of children.
 Safe operation of the product is only guaranteed if these instructions are followed. Therefore, keep these assembly/operating instructions.
SSC-LUXon GmbH accepts no liability if the instructions given here are not followed or the lamp is subjected to improper use.
3. Assembly & configuration
 Caution: The connecting cable must be disconnected from the power supply before starting work (switch off the main switch/fuse)! Only use
parts which are supplied with the product or which are clearly marked as equipment! Otherwise the product may not be sufficiently safe!
 The cable routing shown in the illustrations is for simplified purposes only. They in no way represent a recommendation for connection! The
connection may only be carried out by a qualified electrician.
 When drilling, pay attention to cables and gas and water lines. Always route the cable so that it does not touch the luminaire. Fig.5.2
3.1 Assembly location
The product is suitable for mounting indoors & outdoors. The product may only be mounted on stable and tilt-resistant walls. Do not cover the
product under any circumstances, especially not with insulating material, fire hazard!
 Components of the luminaire and especially the lamps/light source become hot during operation. Especially in the case of halogen lamps/
light source. Keep a sufficient distance (0.5 m) from easily flammable objects (e.g. curtains, drapes, etc.) and flammable materials (ignition
temperature<250°C)!
4. Operation, bulb replacement, faults & disorders
 Caution: Disconnect the connecting cable from the power supply before replacing lamps/light sources! Halogen lamps/lamps become very
hot during operation - risk of burns! Therefore, do not touch the protective glass or the reflector! Allow to cool down before replacing! Do not
cover! There is a risk of fire when covering (e.g. with towel)! Lamps with protective cover may only be operated with complete protective cover!
 Never look directly into the light source!
What to do in case of error?
In case of an error, the device must be switched off immediately. The product may only be operated if it works correctly. The device may only
be put back into operation after it has been checked by a qualified electrician! This is the case if:
1. there is visible damage, 2. the product is not working corrctly, 3. there is smoke, steam, or audible crackling noises, 4. overheating can be
detected
 Caution: There is a danger to life - repairs to the product or work on parts carrying mains voltage may only be carried out by qualified
electricians.
Avoidance of disturbances and fire hazards:
It is not allowed to cover the product under any circumstances. Air circulation must be ensured. Nothing may be attached or hung on the
product, especially no decoration.
5. Cleaning & care instructions
The product may only be wiped dry or carefully with a slightly damp and lint-free cloth. The product is not allowed to be removed for this
purpose. Do not use abrasive or sharp objects or aggressive cleaning agents. Do not use solvents.
Technical data & assembly instruction model JOVO-S – 990070728
1. Disconnect the connecting cable from the
power supply!
2. Remove the two screws (top and bottom)
from the casing – A1 Fig.1
3. Guide the connecting cable through the soft
rubber opening.
Can be used
4. Attach the bracket to the wall at the intended
indoors and
outdoors
location – A1 Fig.2
5. Connect the connecting cable to the light
(luster terminal L, N & protective earth) –
A1 Fig.3
6. Now screw the light source into the GU10
socket – A1 Fig.4
7. Place the casing on the bracket and secure it
with the two screws – A1 Fig.4
8. Switch the connection cable to voltage.
9. The product is now ready for use – A1 Fig.5
Technical data & assembly instruction model JOVO-L – 990070729
1. Disconnect the connecting cable from the
power supply!
2. Remove the two screws (top and bottom)
from the casing – B1 Fig.1
3. Guide the connecting cable through the soft
rubber opening.
Can be used
indoors and 4. Attach the bracket to the wall at the intended
outdoors
location – B1 Fig.2
5. Connect the connecting cable to the light
(luster terminal L, N & protective earth) –
B1 Fig.3
6. Now screw the light source into the GU10
socket – B1 Fig.4
7. Place the casing on the bracket and secure it
with the two screws – B1 Fig.4
8. Switch the connection cable to voltage.
9. The product is now ready for use – B1 Fig.5
Type: Wall light
Model: JOVO-S 990070728
Protection type: IP44
Voltage: 220-240V / 50-60Hz
Material: Stainless steel / plastics
Socket: 1 x GU10
Max. power: 1 x 11W
Operating temperature: -20°C - +35°C
Protection class: I
Height: 150mm
Width: 90mm
Depth: 85mm
Colour: Black
Typ: Wall light
Modell: JOVO-L 990070729
Protection type: IP44
Voltage: 220-240V / 50-60Hz
Material: Stainless steel / plastics
Socket: 2 x GU10
Max. power: 2 x 11W
Operating temperature: -20°C - +35°C
Protection class: I
Height: 250mm
Width: 90mm
Depth: 85mm
Colour: Black
