Dual-axis Turntable II Quick Start Guide

Introduction

The Dual-axis Turntable A230-II has a 360° rotation clockwise or
counterclockwise and ±30° tilt. It's designed to make accurate
cloud point acquisition even more accessible by automating the
scanning process and removing the need to adjust the object's
position when scanning.

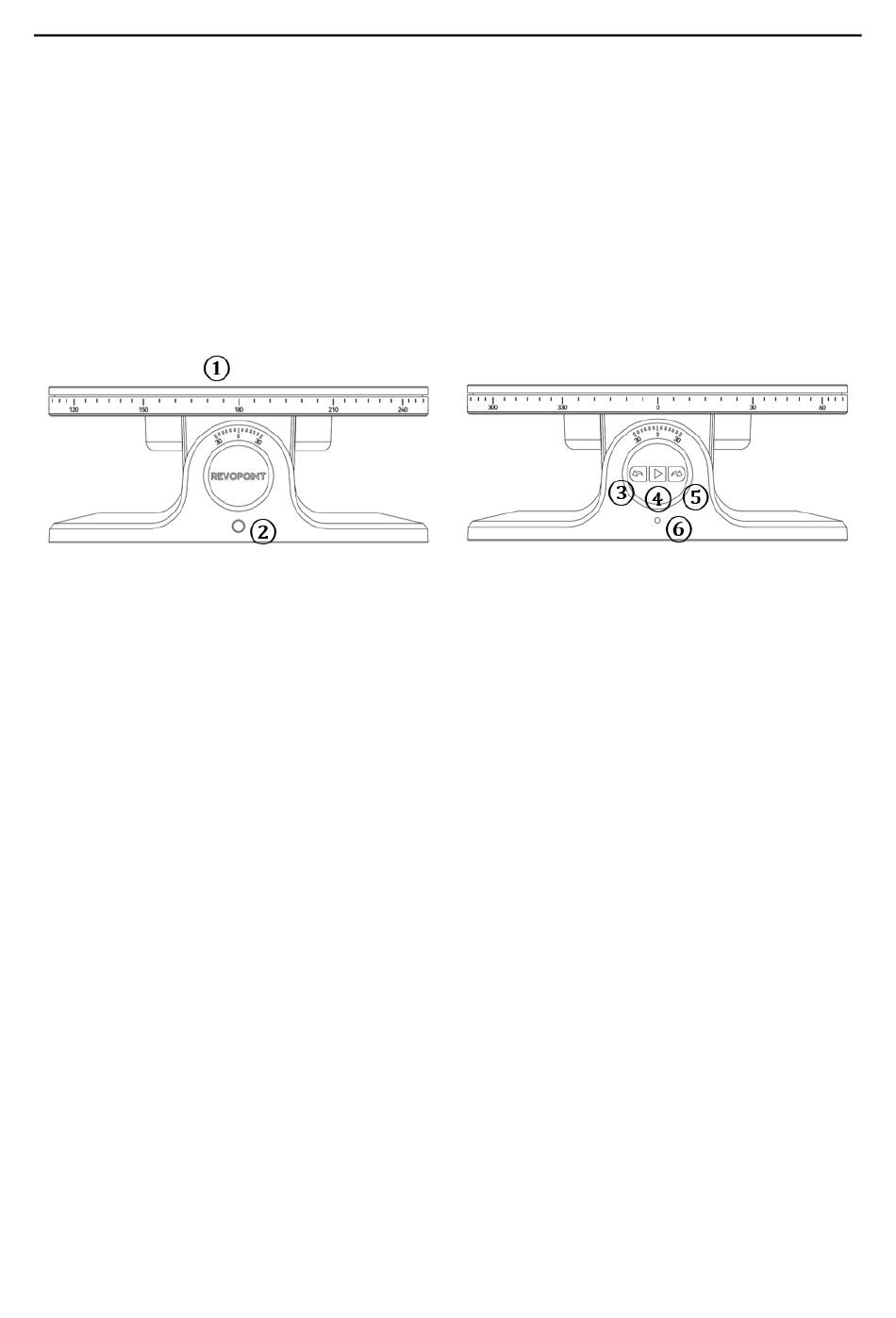

① Load Bearing Surface

Please note that the max load is 5kg.

② Power Jack

Once powered, the Dual-axis Turntable automatically rotates
counterclockwise at a speed of 30 seconds per rotation.

③ Left Tilt Button:

1) Hold it down to make the Turntable continuously tilt to the
left until it reaches its maximum tilt angle or the button is
released.
2) Press it once to tilt the Turntable -5° to the left. The operation
can be repeated.

④ Start/Pause Button

1) Press once to start or pause the rotation.
2) Double press quickly to reset the tilt angle to 0°.
3) Press and hold for 5 seconds to disconnect all Bluetooth
connections.
