Summary of Contents for LIONTRON LX48-50

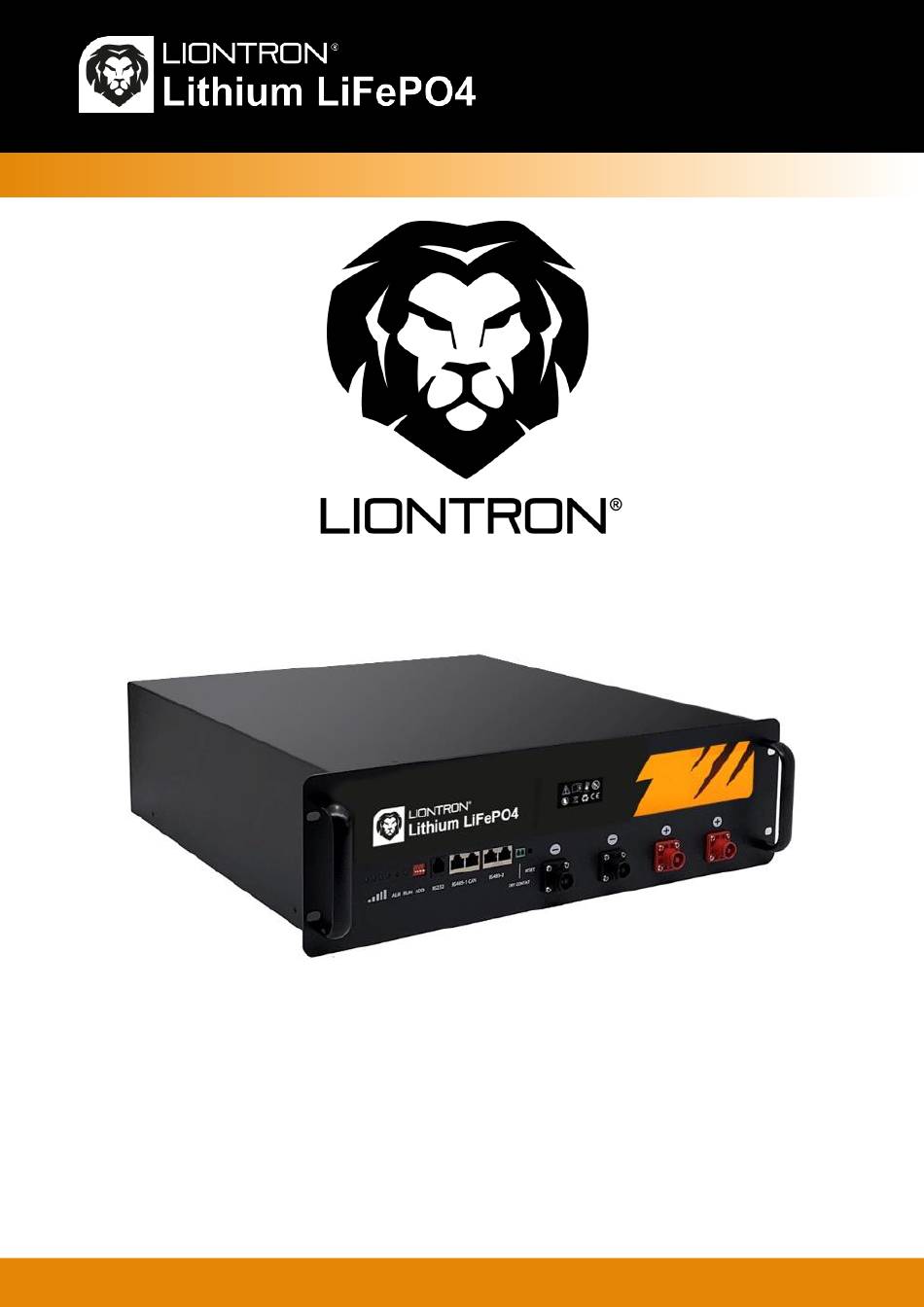

- Page 1 Product Manual LIONTRON LiFePO4 LX48-50 - 50Ah / 2.56 kWh Version 2.0 Technical changes reserved.
-
Page 2: Table Of Contents
5.3 Wartung ........................12 5.4 Maintenance ......................12 5.5 Transport instructions ....................12 5.3 Disposal ........................12 5.4 Important notes ......................13 6. Technical support ......................13 7. Glossary ........................14 Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal... -
Page 3: Product Description
1. Product description 1.1 General Information The LIONTRON® LX48-50 is a modular LiFePO4 battery for highest demands. Due to its long cycle life, the battery is ideally suited as a storage battery for photovoltaic systems, inverters or a stand-alone power supply. -
Page 4: Safety Instructions
The device must be protected from moisture. Indicates the risk of electric shock and specifies the time (5 minutes) required after inverter is switched off and disconnected to ensure safety during all installation procedures. Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal... -
Page 5: Further Safety Instructions
Batteries have to be replaced with batteries of same type. ▪ Batteries only have to be used with inverters and/or chargers. ▪ Never connect the batteries directly to an AC power supply. 3. Specifications and features 3.1 Dimensions Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal... -
Page 6: Technical Data
-40°C .. +60°C Certification and standards CE, RoHS, UN 38.3, MSDS 3.3 Interface overview Illustration: overview of interfaces 1. LED (Battery capacity indicator) 2. DIP-Switches for adress assignment of battery moduls Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal... - Page 7 6 5 4 3 2 1 Illustration: RS232 interface 4. RS485-1 interface for output of battery data (Pin assignment: 1-RS485-B1 , 2-RS485-A1, 3- RS485-GND1, 4-RS485-B1, 5-RS485-A1, 6-RS485-GND1, 7-NC (empty), 8-NC (empty)) Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal...
- Page 8 6. RS485-2 interface for output of battery data (Pin assignment: 1-B, 2A, 3-GND, 4-x, 5-x,6- GND, 7-A, 8-B / Baud rate setting) Illustration: RS485-2 interface 7. Dry Contact Illustration: Dry Contact Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal...
-
Page 9: Installation
After receipt of the LiFePo4 battery, check if the device has been damaged in any way, e.g. by transport. In this case, do not operate the device and contact the seller. Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal... -
Page 10: Package Content
▪ Bridge cable (voltage + / - and communication) between moduls Optional accessories ▪ CAN-bus BMS cable for connection of CAN interface to inverter ▪ Battery cable set for connection of battery to inverter. Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal... -
Page 11: Example Of Connection
19" slide-in racks are suitable. Furthermore, the installation site should be plain, free of moisture and dust. Please note, the serial connection to the inverter/charger is made via CAN socket and to the batteries via RS485 socket. Inverter Illustration: Assembly of 8 batteries with inverter Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal... -
Page 12: Safety Guideline
Never place objects or tools on the lithium battery. Avoid short circuits. Use insulated tools. Do not wear metal objects such as watches, bracelets, etc. when connecting the battery. In case of fire, use a class D fire extinguisher, foam or CO2 fire extinguisher. Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal... -
Page 13: Wartung
Batteries marked with the recycling symbol must be emited at recognized recycling centers. They can also be returned to the manufacturer after agreement. Batteries are not allowed to be disposed of in household or industrial waste. Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal... -
Page 14: Important Notes
If you have any questions regarding your purchase or the operation of your battery, we always try to help you. SERVICE-CONTACT: Mo.-Fr. 10:00-16:00 E-Mail: support@liontron.de Tel.: +49 (0) 2157 – 144 90 70 Fax: +49 (0) 2157 – 144 90 71 help.liontron.de Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal... -
Page 15: Glossary
The period of use in which the nominal capacity of the battery was once Cycle removed and recharged. Battery-Management-System State of Charge Constant Current – Constant Voltage CC/CV Depth of Discharge Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal...
