Summary of Contents for AccuBANKER MP20

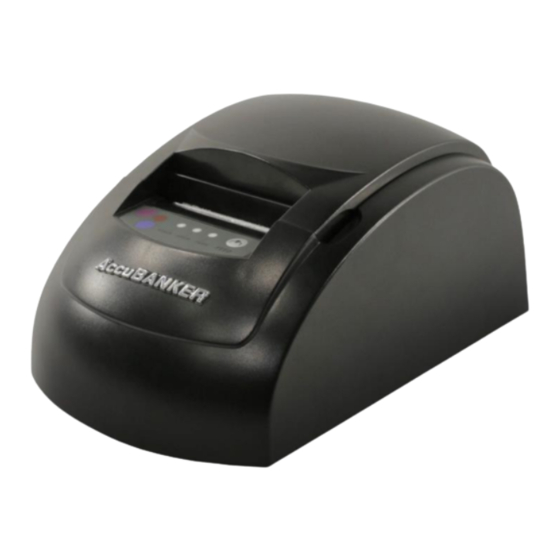

- Page 1 Quick Start Guide MP20 Thermal Receipt Printer www.AccuBANKER.com...
- Page 2 MP20 Quick Start Guide 1. Paper Roll Installation 1. Open the top cover using the two tabs on the side. Figure A. 2. Load the paper roll as shown in the following picture (left is correct; right is wrong). Figure 3.
- Page 3 3. Control Panel 1. Connect the power adapter to the Power Jack, then attach the Power cord to the Power adapter. 2. Connect the printer to the device using the Serial cable. 3. Turn the Power Switch ON. The "POWER" light indicator will turn on in the Control Panel.
-
Page 4: Specifications
5. Specifications Printer Specifications Temperature 32° - 104°F (0° - 40°C) Humidity 25% - 80% Printer Type Thermal Receipt Printer Paper Width 58mm Power Source (INPUT) 100 - 240 VAC 60/50 Hz Power Source (OUTPUT) 8.5VDC / 3.0 A Power Consumption 25 Watts Max. - Page 5 AccuBANKER 7104 NW 50th St Miami, FL 33166 9AM- 5PM ET Monday through Friday www.AccuBANKER.com Please give us a call at 1-888-993-2228...
