RBM kiwa RinoxPlus M Manual

Membrane pressure reducer with inspectionable internal cartridge and filter
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

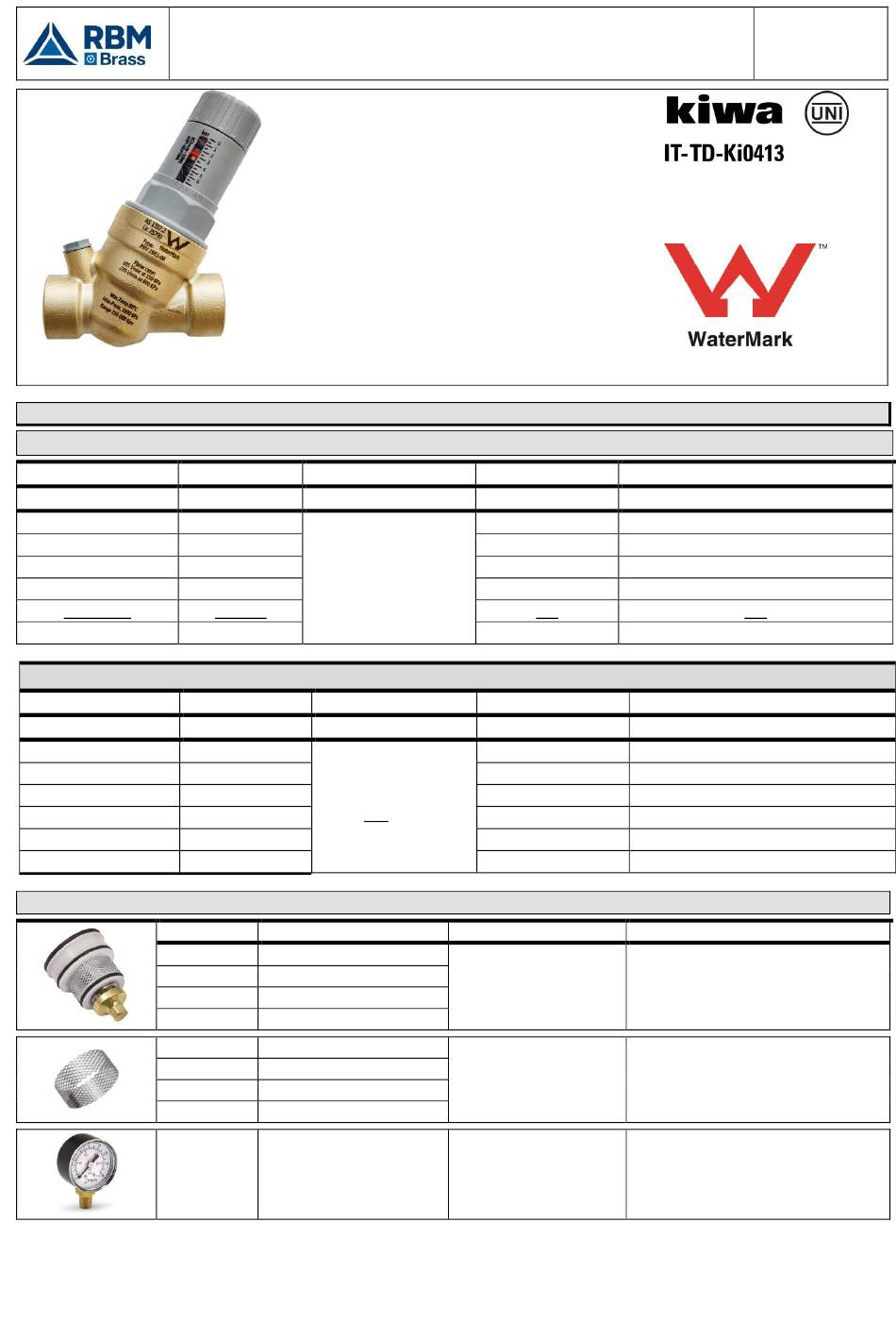

RinoxPlus M
Code
Input: 700 kPa
2581.04.00
2581.05.00
2581.06.00
2581.07.00
2581.08.00
2581.09.00
PRESSURE REDUCER WITH INSPECTIONABLE CARTRIDGE AND CALIBRATION KNOB
Code
Input: 700 kPa
2581.04.90
2581.05.90
2581.06.90
2581.07.90
2581.08.90
2581.09.90
8167.003
8201.003
8202.003
8203.003
7367.005
7387.005
7401.005
7403.005
1213.005
* Compliant with EN 1567 and certified Kiwa.
RinoxPlus M and RinoxPlusSmart M
MEMBRANE PRESSURE REDUCER
WITH INSPECTIONABLE INTERNAL CARTRIDGE AND FILTER
PRODUCTION RANGE
PRESSURE REDUCER WITH INSPECTIONABLE CARTRIDGE
Size
Connection
Rp 1/2"
Rp 3/4"
Rp 1"
FF UNI-EN-10226
Rp 1"1/4
Rp 1"1/2
Rp 2"
Size
Connection
Rp 1/2"
Rp 3/4"
Rp 1"
MM UNI-EN-10226
Rp 1"1/4
Rp 1"1/2
Rp 2"
SPARE PARTS / ACCESSORIES
Code
Suitable for measurement
1/2" – 3/4"
1"
1"1/4
1"1/2 – 2"
1/2" – 3/4"
1"
1"1/4
1"1/2 – 2"
-
RinoxPlusSmart M
Target: 150 kPa
Flow rate (l/min)
Target: 150 kPa
Flow rate (l/min)
with union
Degree of filtration
800 micron
800 micron
LIC. 25790
RinoxPlus M
Flow rate (l/min)
42
48
105
210
250
270
RinoxPlusSmart M
42
48
105
210
250
270
Removable internal cartridge
complete with filter
Removable filter
Radial pressure gauge ø 50.
-
Full scale: 0 ÷ 16 bar.
Connection: 1/4"
CT2581.0_00
EN
January 2021
*
Target: 600 kPa
115
120
235
285
365
370
Target: 600 kPa
Flow rate (l/min)
115
120
235
285
365
370
Description

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the kiwa RinoxPlus M and is the answer not in the manual?

Questions and answers

Summary of Contents for RBM kiwa RinoxPlus M

  • Page 1 RinoxPlus M and RinoxPlusSmart M CT2581.0_00 MEMBRANE PRESSURE REDUCER January 2021 WITH INSPECTIONABLE INTERNAL CARTRIDGE AND FILTER RinoxPlusSmart M LIC. 25790 RinoxPlus M PRODUCTION RANGE RinoxPlus M PRESSURE REDUCER WITH INSPECTIONABLE CARTRIDGE Code Size Connection Target: 150 kPa Target: 600 kPa Input: 700 kPa Flow rate (l/min) Flow rate (l/min)

  • Page 2: Maintenance Interventions

    DESCRIPTION The RBM RinoxPlus M pressure reducers are membrane THE CHOICE: pressure reducers with inspectionable and easily interchangeable RinoxPlus M and RinoxPlusSmart M pressure reducers re internal cartridge, complete with removable filter. intended to be used in the plumbing, heating and sanitary The cartridge is a compensated seat: upstream pressure systems with upstream pressure not higher than 16 bar.

  • Page 3: Dimensional Features

    MAXIMUM UPSTREAM PRESSURE RELATED TO THE TEMPERATURE Temperature of the fluid (°C) DIMENSIONAL FEATURES Code Size [mm] [mm] [mm] [mm] [mm] Rp 1/2” 2581.04.00 17.5 76.4 93.9 Rp 3/4” 2581.05.00 84.4 16.5 77.5 Rp 1” 2581.06.00 107.6 115.5 140.5 Rp 1” 1/4 2581.07.00 121.2 27.4...

  • Page 4: Operation

    OPERATION The RinoxPlus M and RinoxPlusSmart M pressure reducers base their operation on the balance between the counter-strength of the spring with the thrust carried out by the pressure of the fluid on the shutter. The spring, in fact, tends to open the shutter of the reducer, while the pressure on the surface of the membrane tends to close the shutter itself.
  • Page 5 FLUID DYNAMICS FEATURES Load losses diagram Graphics realised with the condition defined by Standard EN 1567 1 " (Upstream pressure: 8 bar - Downstream pressure: 3 bar) Note the project flow rate, it is possible to detect the loss of pressure. 3/4 "...
  • Page 6 DIMENSIONING OF THE PRESSURE REDUCER CAVITATION DIAGRAM * PUNTO 2 PUNTO 2 SECTION 2 ZONA 2 ZONA 2 ZONE 2 ZONA 3 ZONA 3 ZONE 3 SECTION 3 PUNTO 3 PUNTO 3 SECTION 1 PUNTO 1 PUNTO 1 ZONA 1 ZONA 1 ZONE 1 12,5...
  • Page 7 Three-piece MM straight joint fitting with OR seal on connections. 1100.05.00, 1100.06.00 Max. operating pressure: 10 bar. Thread UNI-EN-ISO 228. RBM spa reserves the right to make improvements and changes to the products described and the relative technical data at any time and without notice. ...
