Apollo Enclosures AE-CM708 Quick Start Manual

Item No.:AE-CM708
-5
W A R N I N G :
5
600 x400 70.3 kg
-
32"-65" 852 1500mm
gas pipes are located within the wall.
Vaulted or Flat Ceiling can
be used with this flexible
design ceiling plate
All rights reserved.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION:
A CAUTION alerts you to the possibility of damage
or destruction of equipment if you do not follow the corresponding
instructions.
WARNING:
Failure to read, thoroughly understand, and follow
all instructions can result in serious personal injury,damage to
equipment, or voiding of factory warranty! It is the
installer's responsibility to make sure all components are properly
assembled and installed using the instructions provided.
WARNING:
Failure to provide adequate structural strength for
this component can result in serious personal injury or damage to
equipment! It is the installer's responsibility to make sure the
structure to which this component is attached can support five
times the combined weight of all equipment. Reinforce the
structure as required before installing the component.
Make sure that no electrical cables, water pipes or
(7.28")
(28.44")
(48.00")
(9.17")
(26.97")
NOTE: We recommend that this product is installed by the professional only.
accept no liability for damages caused by incorrect assembly, installation or use.

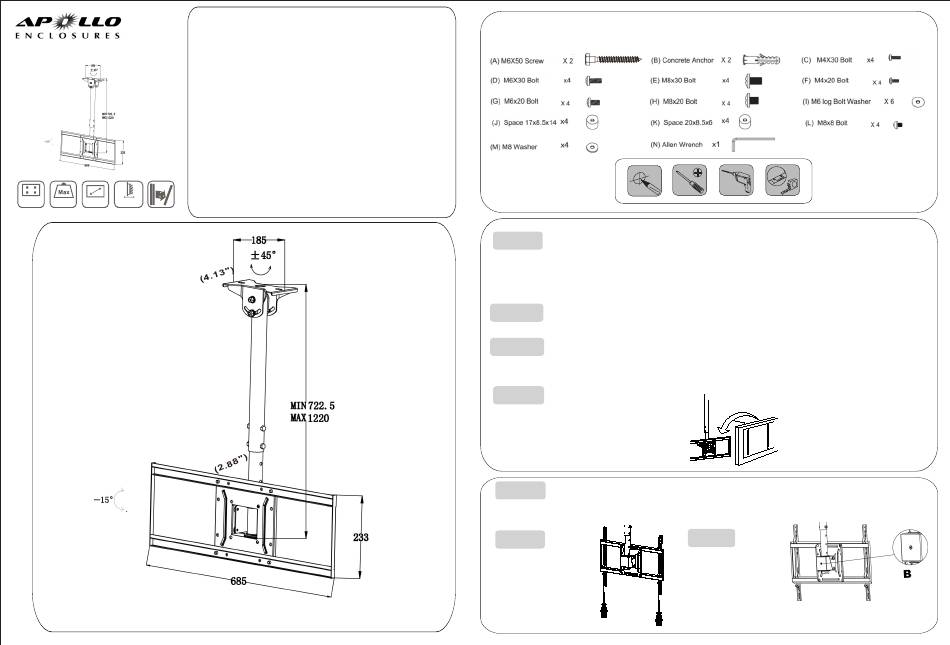

STEP 1
Using ceiling plate (A) as a template, drill 1/4" pilot holes into wood joist.
Attach the Ceiling Plate to the ceiling using the Drywall Screws.
IMPORTANT: If you are installing into a concrete ceiling, also use the
concrete anchors and make sure that you screw directly into a wooden
joist or other adequate support.
STEP 2
Assemble the face plate (D) to the interface bracket plate (E) using four (4)
M6 x 12 bolts and washers
STEP 3 Insert Column (C) into Column (B) adjusting length of the pole to achieve
the desired height for the TV. Rotate the pole to line up two (2) holes and
lock in position with two bolts.
Attach two (2) vertical mount brackets (F) to rear VESA pattern of TV or
STEP 4
of Apollo Enclosure.
STEP 5 Hang the TV or Apollo Enclosure onto the ceiling mount.
Tighten or loosen the tilt knob to obtain the desired tilt and lock
in place.
STEP 6
Tighten Screws
(A) to secure TV
or Apollo
A
Enclosure to
interface plate
F
STEP 7
Rotate TV or
Apollo Enclosure
to desired
direction and lock
in place with set
screw (B)
We
