SETUP AND BASIC ASPECTS

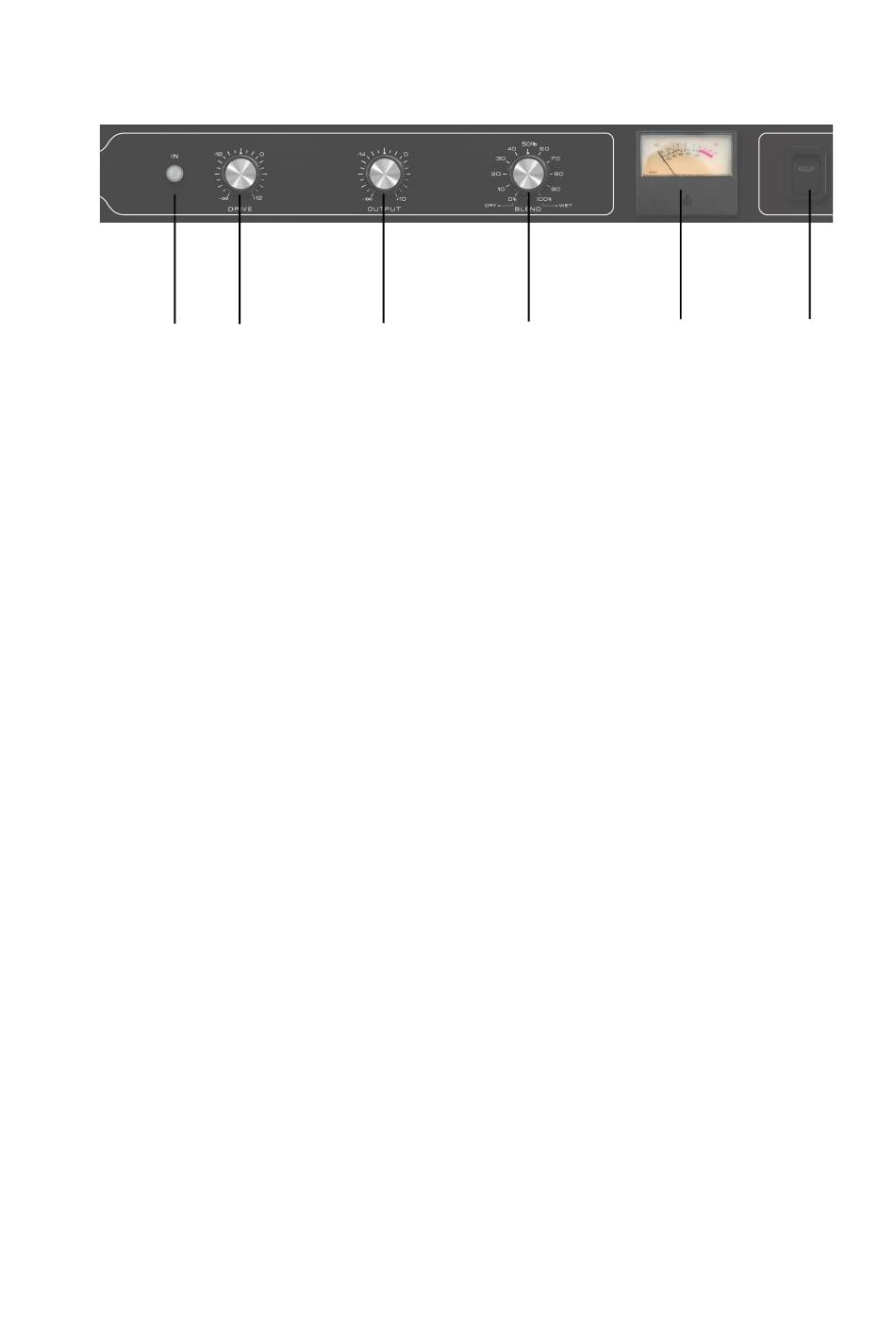

1 2 4 5 6
3
1. BYPASS SWITCH of the Mix buss processor.
2.DRIVE controls harmonic distortion: It sounds like aggressively hitting a
console mix buss. High settings increase grit and drive. Lower settings tend to
open up the dynamics. Begin with extreme settings so that you can really hear
the effect: ''distorsion''.
3. OUTPUT fader to compensate the output level as you adjust the drive
control.
4. BLEND The Dry/Wet blend control determines the balance between the
original and the processed signal. The range is from 0% (dry, unprocessed) to
100% (wet, processed signal only). And it is located in the signal path after the
drive and output control.
5. VUMETER Works like a classic vumeter that you can find in the consoles,
but it is positionated after Drive control and gives a view of the saturation level.
The 0 VU is calibrated in a 1% THD position, over that level, the saturarion
increases. We recommend that find your ''sweet spot''.
6. ON/OFF Power on/of switch.
