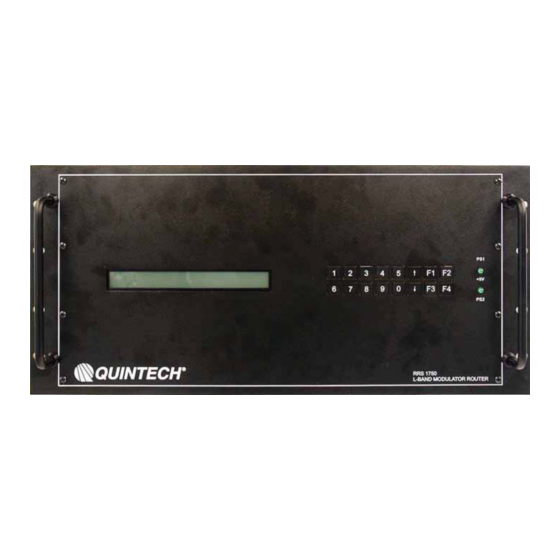

Digisat Quintech RSS 1750 Special Instructions

General Description:
The RSS175024X24NE000 is a 2-to-24 substitution switching system that provides solid-state L-Band switching for a
single set of antenna modulators (up to 24 per antenna). It offers 24 sets of primary inputs and outputs as well as two
auxiliary modulator inputs, each one of which can be substituted for any one of the 24 primary inputs. Control and status
is provided either locally via the front panel keypad or remotely through a serial or Ethernet interface. Each of the primary
modulator paths through the switch have guaranteed "zero-loss" whereas the auxiliary modulator (substitution) path has
an additional 3.5 dB gain to compensate for the external power divider loss. Any non-selected paths are internally
terminated into 50 ohms.
Specifications:
Operating Frequency:
Impedance:
Flatness:
Insertion Loss:
Isolation:
Return Loss (I/O):
Compression (1 dB):
Noise Figure:
Group Delay:
RF Connectors:
Power Requirements:
Power Consumption:
Monitor and Control:
Ambient Temperature:
Mechanical:
Weight:
RSS 1750
RSS175024X24NE000
2-to-24 Substitution Switch (950-1750 MHz)
Primary Path
950-1750 MHz
50 0
+ 0.5 dB (over any 250 MHz)
+2.0 dB + 1.0 dB
>40 dB (47 dB typical)
16 dB
+ 5 dBm
9 dB
< 1 nsec.
Type "N" (female), 50 0
100-240 V
Dual Redundant Power Supplies
65 W
Ethernet and RS-422
0 to +55' C
5 RU (8.75"H x 19"W x 20"D)
28 lbs. gross (boxed), 20.5 lbs. net
~
autoranging, 47-63 Hz, w GND lug
Auxiliary Path
950-1750 MHz
50 0
+ 0.5 dB (over any 40 MHz
+6.0 dB + 1.3 dB
>40 dB (47 dB typical)
15 dB
+ 5 dBm
9 dB
< 1 nsec.
Type "N" (female), 50 0
