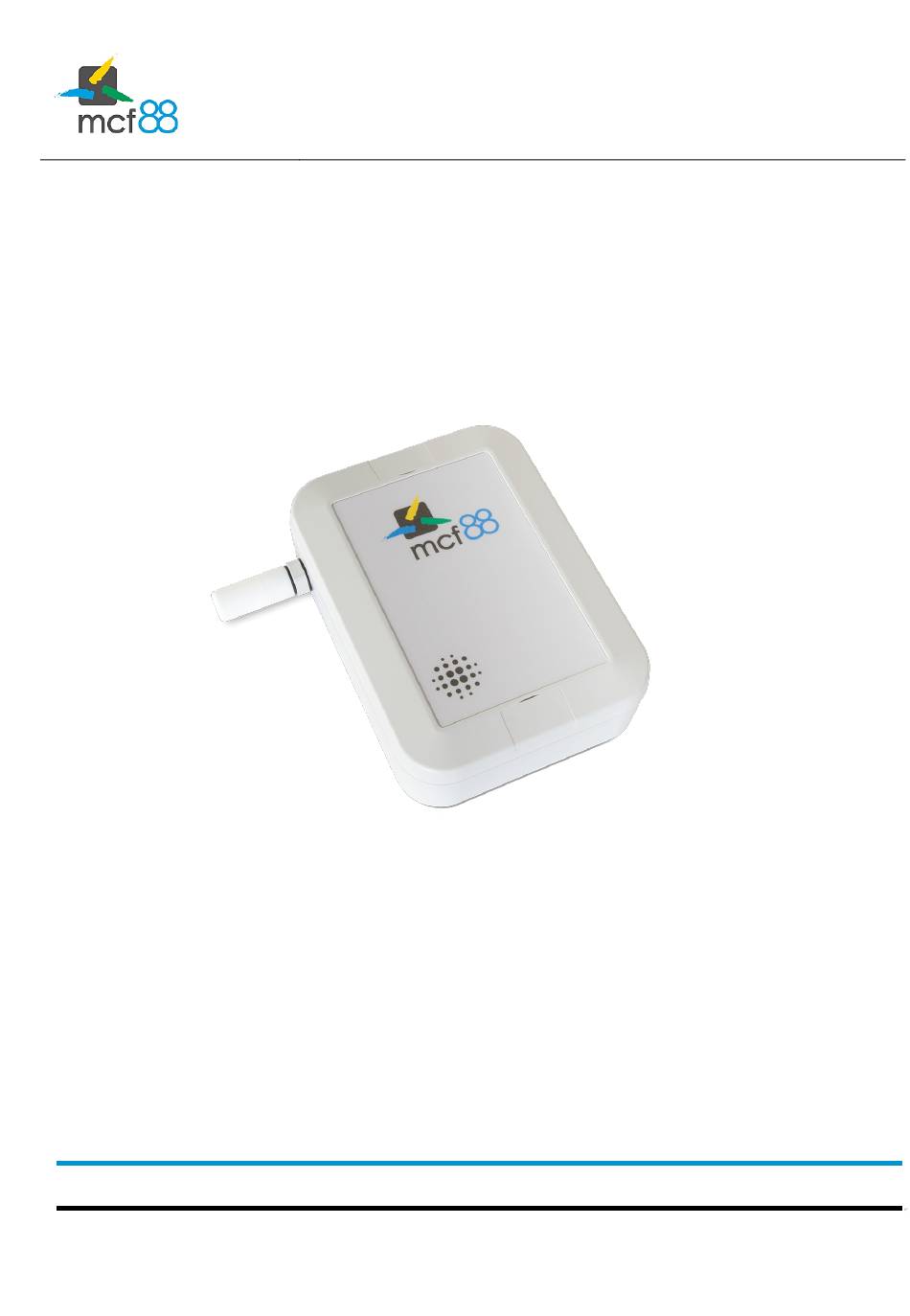

Installation Manual MCF-LW12TERWP
1. DESCRIPTION

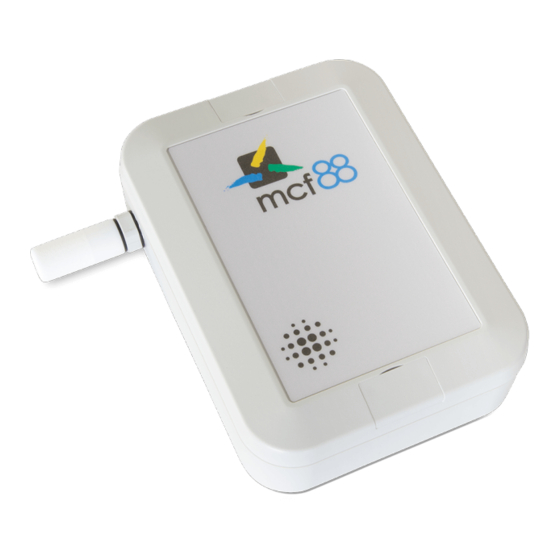

The MCF-LW12TERWP is a IP67 battery powered sensor that reads temperature,
humidity and pressure and sends collected data over the LoRaWAN™ network. Ideally
suited for a wide range of applications such as weather stations, urban monitoring, air
quality, industrial, environmental or farming projects.
2. INSTALLATION
To ensure correct operation and reliable and consistent measurements, install the
MCF-LW12TERWP sensor away from direct sunlight and rain. The device must be
placed where the LoRaWAN signal coverage is good (SF = 7 optimal, SF = 12 weak).
The sensor can be installed on the wall or pole using the included accessories.
mcf88
Via Roma 3, 28060 Sozzago (NO) ITALY - info@mcf88.it - mcf88.it
1 of 4
Advertisement
Table of Contents
Summary of Contents for mcf88 MCF-LW12TERWP
- Page 1 2. INSTALLATION To ensure correct operation and reliable and consistent measurements, install the MCF-LW12TERWP sensor away from direct sunlight and rain. The device must be placed where the LoRaWAN signal coverage is good (SF = 7 optimal, SF = 12 weak).
- Page 2 For mounting onto the wall open the blind lids: 4. POLE MOUNT For installation on poles, pillars or posts use the included bracket and fasteners: mcf88 Via Roma 3, 28060 Sozzago (NO) ITALY - info@mcf88.it - mcf88.it 2 of 4...
- Page 3 ABP: requires writing to the device of NwkSkey, AppSkey, DevAddr The device exits factory activated with NONE mode. The devEUI of the device is shown on the product label. mcf88 Via Roma 3, 28060 Sozzago (NO) ITALY - info@mcf88.it - mcf88.it 3 of 4...
- Page 4 The application allows, in addition to parameters configuration, the firmware update. Further features are: lorawan class => class “A” measuring interval => 10 min transmission interval => every 3 measures mcf88 Via Roma 3, 28060 Sozzago (NO) ITALY - info@mcf88.it - mcf88.it 4 of 4...
